Aluminum Profile 45 and 90 Degree Any Angle Cutting Machine PVC Wood Aluminum Foil Roll Sheet Corner Cutting Machine Door Window Processing Saw Cutter Machine

Product Description

Product Description
Aluminum profile 45 and 90 degree any angle cutting machine pvc wood aluminum foil roll sheet corner cutting machine door window processing saw cutter machine
1.The aluminum cutting machine is controlled by the imported pneumatic system, with good processing effect and stable and smooth cutting speed.
2. Used for aluminum alloy frame, edge band, photo frame, door and window, aluminum 45° 90° 15-90°cutting, equipped with standard ruler, accurate positioning; foot control, swaging position mechanism;
3.automatic waste disposal mechanism, easy to use, safe, fast.
4.The work surface is made of imported steel plate, and the surface of the table is 140mm thick. The cutting is precise and durable.

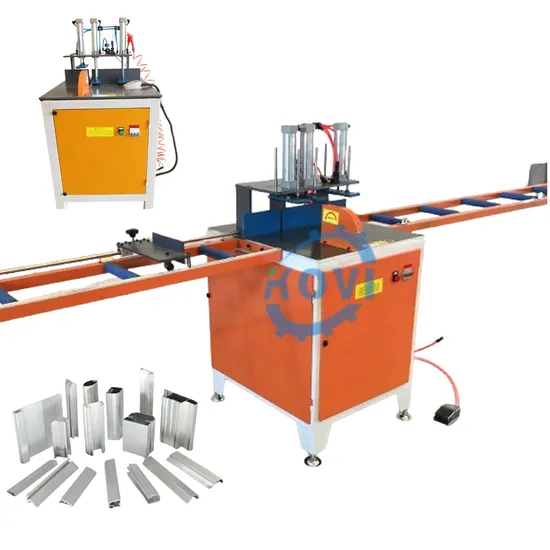

(1)45 degree and 90 degree aluminum cutting machine

Model	KV4590
Voltage	380V/220V
Motor power	2.2KW
Maximum cutting width	100mm
Maximum cutting thickness	85mm
Cutting angle	45,90 degree
Weight	175kg
Machine size	700*700*1000mm

(2)355mm saw blade UPVC CNC windows and doors processing double head miter aluminum cutting saw machine

Model	KV245
Voltage	380v /50hz /three phase
Power	2.2kw*2
Dimension	1300*800*1350mm
Weight	400kg
Maximum width	90mm
Maximum height	90mm
Saw blade size	355mm

(3)straight cut 90 degree aluminum cutting machine

Model	KV90
Voltage	380V/220V
Motor power	2.2KW
Maximum cutting width	280mm
Maximum cutting thickness	120mm
Cutting angle	45,90 degree
Weight	300kg
Machine size	980*800*1260mm

(4)Can cut any Angle of aluminum PVC doors and Windows cutting machine

Model	KV1590
Voltage	380V/220V
Motor power	2.2KW
Maximum cutting width	200mm
Maximum cutting thickness	100mm
Cutting angle	15-180 degree
Weight	175kg
Machine size	860*740*1100mm

(5)Heavy-duty hydraulic pressure single-head precision 45 degrees 90 degrees multi-functional aluminum cutting machine saw blade diameter 550mm

Model	MK-DW10
Voltage	220v/50hz
Motor power	1500W
Maximum cutting width	100mm
Maximum cutting thickness	85mm
Cutting angle	45,90 degree
Weight	175kg
Machine size	700*700*1000mm

(6)Multifunctional heavy duty aluminum cutting machine with protective cover for PVC doors and Windows at any Angle

Model	KV500
Voltage	220V /380V
Motor power	2.2KW
Maximum cutting width	max 182mm
Maximum cutting thickness	max 325mm
Cutting angle	0-180degree
Weight	360Kg
Machine size	1000mm×900mm×1400mm

(7)600mm saw blade Sunroom arbitrary Angle saw ,PVC aluminum doors and Windows cutting machine

Model	MK-DW10
Voltage	220v/50hz
Motor power	1500W
Maximum cutting width	100mm
Maximum cutting thickness	85mm
Cutting angle	45,90 degree
Weight	175kg
Machine size	700*700*1000mm

(8)CNC 45 degrees, 90 degrees doors and Windows PVC aluminum cutting machine

Model	KVCNC24590	Saw blade specification	455mm
Working pressure	0.6-0.8mpa	Cutting Angle	45°90°
Voltage	220/380V	Cutting width x height	100x100mm
Power	2.2kw*2 PCS	45° Angle minimum cutting	480mm
Dimension	4500x1300x1550mm	90° Angle minimum cutting	250mm
Weight	1000kg	packing way	Standard export case

Detailed Photos

Finished product drawing
Packaging & Shipping
FAQ

FAQ
MOQ	Any quantity is acceptable for your order. And the price is negotiable for large quantity
Voltage	110V 220V 380V 400V 50HZ/60HZ Single /three phase custom-made voltage
Guarantee	Quality guarantee term is for one year. During one year .offer spare parts for free
Payment	T/T , L/C Credit card .Alipay wechat , Western Union . cash E-checking , MoneyGram.RMB
Documents	Express:express waybill;Airport:airway bill;Seaport:B/L.commercial invoice.packing list.CO.FORM A FORAM ETC.
Address	Zhengzhou city. Henan province .China. Welcome to our company!

Before sales	24 hours online service .in time reply Any in Any inquiries will be replied within 12 hours offer professional machine details and information technology knowledge share .
On sale	Protect the client payment security . reasonable price and ensure quality . send machine pictures , videos as client need and let client know machine more better
After sales	Fast delivery and test and adjust machine working well before delivery Supply manual book and technical support in order to use well offer install pictures step by step or videos and dispatch the engineer Guarantee time is one year . during one year . offer the spare parts for free
