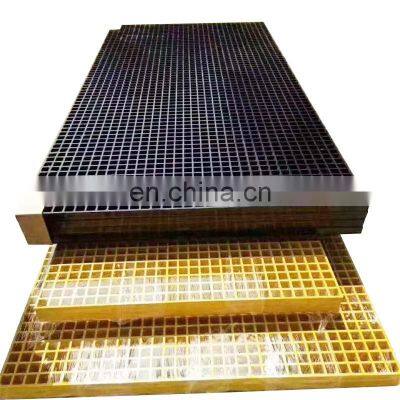

high strength anti-corrosion ISO FRP grating chemical platform

Product Description

Product Description
high strength anti-corrosion ISO FRP grating chemical platformThe product is composed of fiberglass, this is the major component of the fiberglass molded grating. Its numerous significant features are the reasons why it is highly preferred. The next component is the resins. This resin solution can be of two types.Polyester /Vinyl Ester/ ISOThe polyester provides excellent corrosion resistance to the woven fiberglass while Vinyl ester provides the highest level of corrosion resistance.SpecificationBar Size(Top/Below)Panel SizeOpen areaWeightMesh size 38mm*38mm, 25mm thickness6.5/5.0mm1.22*3.66m68%12.5kgs/m2Mesh size 38mm*38mm, 30mm thickness6.5/5.0mm1.22*3.66m68%14.75kgs/m2Mesh size 38mm*38mm, 38mm thickness7.0/5.0mm1.22*3.66m68%19.5kgs/m2Mesh size 50mm*50mm, 50mm thickness8.0/6.0mm1.22*3.66m78%23.5kgs/m2Mesh size 19*19/38*38mm, 50mm thickness7.0/5.0mm1.22*3.66m40%23.5kgs/m2Product Descriptionhigh strength anti-corrosion ISO FRP grating chemical platformFRP molded gratings are available in a variety of resins, standard and custom colors, depths, panel sizes and mesh configurations.Surface options include a meniscus or integrally applied grit top, both of which offer superior, slip resistant footing. FRPmolded grating is used in place of traditional materials for a FRP solution that fits a wide range of applications andenvironments.FRP grating feature:Anti-Fire | Anti-Corrosion | Chemical Resistant | Anti-Slippery | Light Weight | High Loading Capacity | Long Service LifeNon-Conductive or Magnetic | Easy Installation | Cut to Size division available with quick turn-around time.Smooth Surface – Great for Bar Screens at Wastewater Treatment plants or Architectural applicationsGrit Surface – Excellent slip resistant surfaceFRP grating with top coverHigher loading weight38mm height FRP grating25mm height FRP gratingwhole panel size: 1220mm*3660mmCustomized sheet size, such as 1m*2m, 1.22m*2m, 1m*3m or other required size.LanYu has FRP grating exporting experience more than 10years, We are very professional FRP grating manufacturer in China.Welcome your visit to our factory!high strength anti-corrosion ISO FRP grating chemical platformFRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.How to choose FRP grating?1. It is necessary to determine what the FRP grating is used for, that is, to clarify its use goal. For example, the manufacturer of the car wash is to buy the grille board to prepare to use the grille board as the carrier board for the car wash.2. After determining the purpose of the FRP grating, it is time to determine the size and specifications of the grating used.Through the relevant introduction of the manufacturer, you can have a general understanding of the grille. For example, in a car wash, you can choose a 2.5cm thick grille or a 3.8cm thick grille. In electroplating equipment factories, grid plates with a thickness of 2.5 cm are commonly used. In sewage treatment plants and chemical plants, 3.8 cm thick grid plates are often used.3. After selecting a suitable thickness of the FRP grating, the size of the grating plate during use should be calculated. Such as in a car wash. The size of a car wash is mostly 1.220m*2.440m, while the size of the FRP grille is 1.220*3.660, which needs to be cut before it can be put into use.4. Choose appropriate raw materials to make FRP gratings that meet the requirements. For gratings used in chemical plants or sewage treatment plants, it is necessary to select resins with higher corrosion resistance for production.FAQQ: Are you a trading company or a manufacturing factory?A:We are a manufacturing factory with export qualifications. Our factory is one of the Best FRP products manufacturer in China since 2010.We have FRP products of high quality and various kinds.Q: How can you guarantee your product quality?A: 100% of our products will be tested before delivery. To control quality, we are using high quality material from high quality supplier.Q: I am interested in your products, could I get sample for free?A: We could supply a few pieces of FREE samples if we have some in stock. All you need to do is kindly offering your shipping account.Welcome your inquiry about FRP grating anytime.Cathy is always here!
