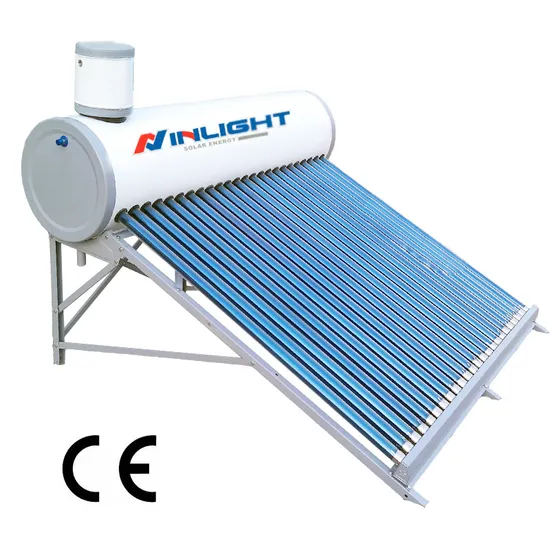

High Efficient Non-Pressurized Color Steel Solar Water Heater

Product Description

Non-pressurized Solar Water Heater

Vacuum tube	Spec.(mm)	Φ47×1500 Φ58×1800 Φ70×2000
	Tube (pcs)	12 / 15 / 16 / 18 / 20 / 22/ 24 / 28 / 30 / 36 / 42
	Material	3.3 Borosilicate glass, magnetron spluttering selective coating
	Coating	AL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN
Water tank	Capacity	70 ~ 400L for inner water tank
	Inner tank	Food-grade stainless steel plate SUS304-2B
	Insulation	High-density polyurethane integrated foam-forming 50~60mm
	Tank shell	Color steel plate
Bracket	Spec.(mm)	1.2 ~ 1.5mm thickness
	Material	Hot-dip galvanized steel plate
Accessories	Stainless bolts & nuts, Silicon rubber seal, Dustproof rubber seal, Plastic pipe holder
Optional device	Electrical heater, Intelligent controller / Assistant tank, Anod magnesium bar
Tilt angle	25°~ 50°
Water output	45-95 o C
Hail resistance	Φ25mm diameter

Description:
1.Non-pressurized solar water heater is such kind of a most economical system with high efficiency at the same time. It works depending on the gravity of water, so it's much better to be installed on the slope or flat roof as top as possible to get enough hydraulic pressure.
2.A simple assistant tank can be equipped for tap water refill automatically or with an intelligent controller to control the start up of auxiliary heating device at the same time.
3.Vacuum tube: Hail-resisting borosilicate glass with high-tech selective coating ensures an efficient solar collecting, tri-target vacuum tube with its patent interference coating makes the efficiency not only improved by 12% but also with a high temperature resistance (380oC).
4.Inner water tank: Food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, together with advanced welding technics to ensure it with a long lifespan (15 years).
5.Water tank shell: Imported color steel plate, with its outer coating treatment ensures a long life even to ocean coast weather.
6.Insulation Layer: Germany-imported polyurethane integrated foam-forming with twice slaking treatment, preserves hot water constantly as long as 70~80 hours.
7.Supporting Bracket: Hot-DIP galvanized steel plate with a good weight bearing and wind resistance(140 km/hr), super mechanical performance and corrosion resistance ensures a long life to ocean coast, easy installation, universal bracket suitable for either flat or slope roof installation.
8. Accessories: Stainless bolts & nuts, water-proof silicon rubber, anti-aging dust-proof rubber seal, plastic pipe holder and ventilating cap to ensure their lives as long as other parts of the system
Working Theory:
Non-pressure vacuum tube solar water heater is an open loop and thermosyphon system. The vacuum tube with special absorptive coating can absorb the sun energy and transfer sun energy to heat energy. Whole system works according to the thermosyphon principle. Water in vacuum tubes is heated and then rises to top of tank. Cold water in tank goes down to the vacuum tube bottom. Water in the system will be heated as circulation keeps going on. This type of solar water heater is one of the most popular systems because of its own advantages of high efficiency,cheap price,simple Installation and free maintenance
