2/3 Axle Curtain Side Box/Van Type 45FT Cargo Transport PVC Tarpaulin Sliding Cargo Truck Semi Trailer with Air Suspension BPW Axle

Product Description

Product Description

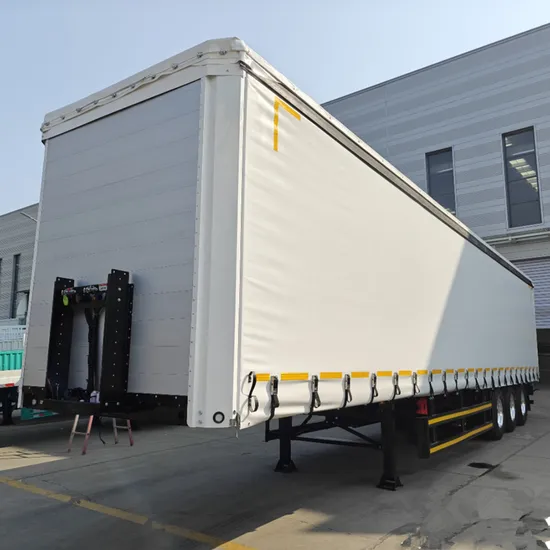

2/3 axle Curtain side Box/Van type 45FT Cargo Transport PVC Tarpaulin Sliding Cargo Truck Semi Trailer with air suspension BPW axle
Features Convenient loading and unloading: The side curtain design makes loading and unloading goods more convenient, and can be quickly loaded and unloaded without using large equipment, improving work efficiency. Flexible adaptability: It is suitable for transporting a wide range of goods, including palletized goods, large equipment and irregular items, providing great transportation flexibility. Strong protection: The side curtain material is not only windproof and rainproof, but also can effectively prevent dust, protect the goods from the external environment, and ensure transportation safety. The low-temperature resistant material we use can be used in environments below minus -40ºC.High-strength structure: The frame is made of high-strength steel, which has excellent fatigue resistance and durability, and is suitable for long-distance heavy-duty transportation. Safe and reliable: Equipped with advanced braking system and safety devices to ensure driving safety in various road conditions.

Inside dimension	13640×2480×2700mm(Size is according to customers requirements)
Overall dimension	13885*2500*4000mm
Payload	40000 kg
Tare weight	6700kg
Front and rear gate	Aluminium alloy
Side plate	Aluminium rail
Frontand rearpillar	Carbon steel
Central pillar	Sliding pillar/6 sets
Roof-hosting system	4sets,the roof can slide to open
Theroof curtain	650GRM,low temperature resistant(-40ºC)
The side curtain	900GRM,low temperature resistant(-40ºC)
Floor hooks	28 pcs or according to requirments
Axle	10T disc braking system,wheel track 2050,two axle with ABS BPW FUWA or local brand is optional
Tire	12R22.5 brand and model is optional
Rim	9.0-22.5 brand and model is optional
Side beam	16mmchannel steel(carbon steel)
Through beam	Factory standard
Thickness of Floor	30mm Waterproof phenolic resin floor(two-sided)
Thickness of Upper and lower wing plate	Upper wing plate 10mm,Lower wing plate 10mm
Web plate thickness andheight	Thickness 5mm,height480mm
Landinggear	FUWA or JOST or SAF brand 28T two-speed landing gear
Suspension	The first axle can be lifted,and imported air suspension
Kin ping	50mm/90mm JOST Bolt-in
Tool box	1 piece 600mm Aluminium
Sparetire frames	Side-installed 2 pcs
EBS	WABCO EBS

Detailed Photos
This curtain side semi trailer we choose aluminum alloy track,more smooth and lightweight to use.Very easy to open when we need load and unload goodsReinforced aluminum alloy cross brace makes the trailer light and strong.The goods more secure during delivery.The floor of the curtain side semi trailer we choose 30mm wood floor.Anti corrosion on both sides, anti slip on the surface.It is designed according to customers requirements.The front and rear doors are both made of aluminum alloy material,The front door is made in a corrugated style for greater durability. There is a hidden ladder at the rear of the car, making it easier and faster to get in and out of the curtain side semi trailer.FUWA or JOST brand landing.Even if we use local brand landing gear we also can guaranteed quality.We will not use bad trailer parts to reduce the cost. Our Advantages

1.	Years of experience in semi trailer design and production can supply best design for customers.
2.	Famous Brand Axle/suspension/landing gear/tires support trailer durable and high attendance rate.
3.	China best raw material support stronger trailer chassis and body.
4.	Professional advanced production technology and strict quality control ensure the quality of semi-trailer
5.	Years of export experience can help customers apply for various certifications or certificate of Origin.

The steel plates used for semi trailer manufacturing are purchased from china well-known large steel factory.
Cutting raw material according to production drawings.Welding the main beam of the semi trailer.We use Gantry Main Sill Welding Machine.Welding other accessoriers of the semi trailer such cross member,suspension,floor.Sandblasting and rust removal of semi trailer frame.Make the semi trailers easier to paint and less prone to peeling and rusting Clear the welding slag and conduct welding quality inspection on the semi-trailer.Dust free spray painting room:1coat of anti corrosive prime,2coats of final paint.Color and logo is according to customers requirements.
Customer also can choose electrostatic powder spraying.
Stronger adhesion and corrosion resistanceComplete assembly, wait for shipment after re inspection.
We will try to save more space for customers to save shipping cost.
Packaging & Shipping

1.	Loading in the container by cutting the tail.One 40HQ can load two sets 40ft flatbed semi trailer.
2.	3 units flatbed semi trailer in one set to save cost.Nude with wax spray.
3	2 units semi trailer in one set.Professional package design to meet different customer needs

Company Profile
Shandong tank automobile company limited is a professional semi trailer and trailer parts exporter.Our company have our own semi trailer and trailer parts factory.Our factory covering an area of 200000 square meters, and over 130 employees.
At present, the company mainly specializing in manufacturing special vehicles such as low bed semi trailer, flatbed semi trailer, skeleton type semi trailer,cargo transport semi trailer,oil tank semi trailer, bulk cement semi trailer,dumper semi trailer and so on.We also export used truck tractors.And our trailer parts factory mainly manufacture semi trailer axle,mechanical suspension,air suspension,bogie suspension and landing gear. Our boasts strong technical force, advanced line production equipment of welding and excellent quality guarantee system, modern testing means and high qualified specialist technicians, making the products trusted and welcomed widely by the users from all over the world. The company wants the customer's thoughts and urgency. Solving problems for customers and meeting customer needs is our eternal pursuit!
Our company's products are sold worldwide. The company has won the unanimous recognition of consumers with satisfactory product quality and perfect after-sales service. We have a professional R & D team. We can design and produce according to the drawings provided by our customers.

FAQ
1.What's your payment terms ?By T/T,LC,Paypal. T/T 30% deposit in advance, balance 70% before shipment by T/T or L/C2.How long is your production lead time?It depends on product and order quantity. Normally, it takes us 15 days for an order with MOQ quantity .3.Can you do OEM and ODM for me?We accept all OEM and ODM orders,you just contact us and give me your design and information. we will offer you are reasonable price and make samples for you .4.When can I get the quotation ?We usually quote you within 8 hours after we get your inquiry. If you are very urgent to get the quotation,please call us or tell us in your mail, so that we could regard your inquiry priority.
