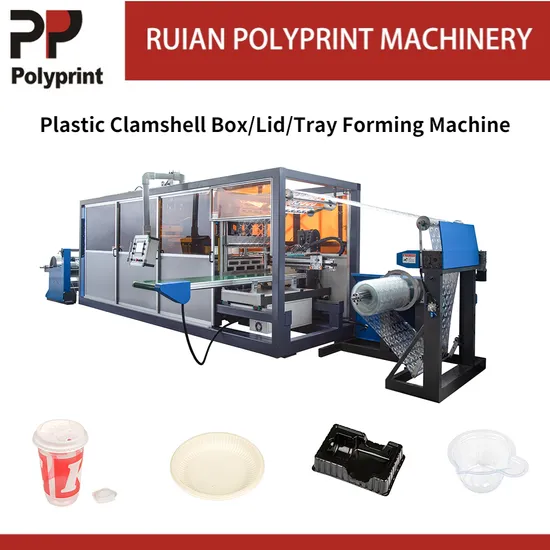

Domestic & Food Plastic Machinery Industry Egg Box Cake Container Cup Lid Making Machine

Product Description

Products Description:
1. PPBG-750 automatic positive and negative pressure molding machine is our company combined with the domestic and foreign plastic machinery industry advanced technology independent research and development of a fully functional automatic model, perfect completion of the plastic industry a major innovation, is the traditional plastic machine update model.
2. This machine adopts the method of laminating heating, adopts the technology of moving film punching, no secondary pollution, high sanitary level, high production safety coefficient, saving labor, the equipment set positive pressure/negative pressure/positive and negative pressure automatic molding, punching, cutting, manipulator grasp stack counting in a production line to complete continuously, automatic conveying products.There is no need for manual punching, manual cutting and other subsequent processing procedures, reduce a series of quality problems caused by manual punching and cutting and cumbersome subsequent procedures, save the site, reduce secondary pollution, save labor costs, product quality has been greatly improved.
3. This model is suitable for production of high demand on all the blister products: blueberry box, fruit box lid, fresh food tray, moon cake tray, disposable fast-food containers, disposable take away containers, Instant noodle bowl cover, milk tea lid, coffee lid, beverage cup lid, ice cream cup, jelly cup, packing box, daily necessities blister packaging, medicines and drugs blister packaging, wine packaging, electric equipment blister packaging etc.Bright and clean cutting edge, uniformity of thickness.
Details:
Touch Screen
Forming Mould
Punching Station
Cutting Mould and Stacking Robot
Waste Rewinding Unit
Feature:
1. Adopt laminated heating with ultra-low energy consumption.The maximum power consumption of the equipment is only 8 kW/h, and the product can be up to 150 kilograms of products.
2. Save the edge material, servo drive clamping feed, edge material only 10mm wider than the sealing ring can be smoothly produced, laser knife cutting, heating knife plate, no plastic powder.
3. Grasp the finished product in the mold, and use the mechanical hand to grasp the completely cut product and send it to the conveyor belt, with the accumulative counting function, to solve the problem of product even point burr.
4. Compact structure and small floor space.
5. Automatic feeding, with fast feeding platform, no need to stop the feeding.
6. X-shaped curved arm structure with horizontal stabilizer bar features stable operation, long service life and simple maintenance.
7. The unique oil circuit design of the whole machine can automatically and continuously lubricate and recycle the lubricating oil.
8. It can produce PLA, PVC,PS, PET,PP etc. All kinds of covers.
Technical Parameter:

1	Suitable Products	Disposable plastic lids,egg trays,clamshell boxes,plates etc.
2	Suitable Materials	PLA, PVC,PS, PET,PP sheet
3	Thickness Range	0.1-1.5mm
4	Stroke Range	30-440mm
5	Max. Forming Depth	120mm
6	Max. Forming Area	730x500mm
7	Industry Voltage	380V/50Hz (Three Phase, Four Wires)
8	Total Power	28kW
9	Max. Speed	10-40 Cycles/Min,with the robot max.25cycles/Min
10	Max. Cutting Force	30Ton/0.8Mpa
11	Air Pressure	0.5-0.7MPa
12	Air Consumption	≥ 0.3 m3/h
13	Cooling Water	Normal Tap Water Recycle Cooling
14	Noise	<75Db
15	Machine Dimension	7300×1500×1820mm
16	Machine Weight	4300kg

Our Services:
1.Warranty:1 year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2.Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3.Quotation: valid for 60 days.
Packaging Shipping:
Company Information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.
