Laboratory Battery Electrode Die Cutter Plate Foil Die Cutting Machine for Pouch Cell Making

Product Description

Laboratory Battery Electrode Die Cutter Plate Foil Die Cutting Machine For Pouch Cell Making

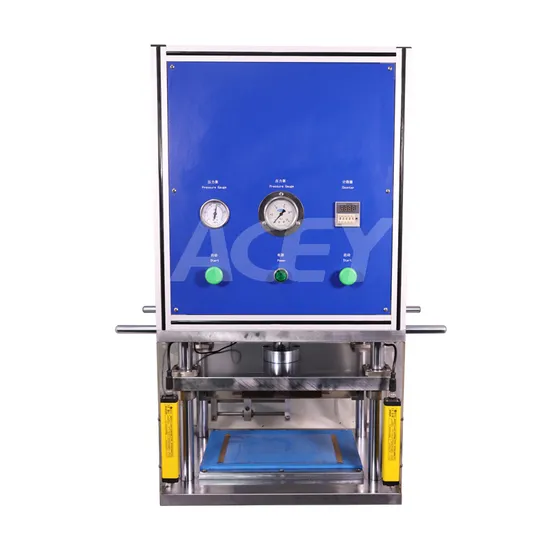

Product Description ACEY-SDC-1 is an equipment used for die-cutting positive and negative plates of lithium battery laminates. The equipment uses a pressurized cylinder to punch single-piece or coiled pole pieces, and can provide various shapes of knife dies according to customer requirements to realize the forming and die-cutting of battery pole pieces of different sizes.
Features
*Using infrared positioning device, accurate and convenient pole piece positioning die-cutting;
*It is convenient and quick to change the knife mold;
* Long tool life, normal use ≥ 30,000 times;
* There are no quality defects such as burrs, powder falling, and indentation;
*Between manual and fully automatic, high efficiency 800~2000 pieces/hour;
(According to the size of the die-cut pole piece, 1-8 pieces can be punched each time, the standard is 2 pieces)
*Using four guide pillar structure, sliding up and down smoothly and high precision;
*The equipment inlet has a safety protection light curtain, which makes the operation very safe;
*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
*Easy to operate, safe and reliable, small size
*Using infrared positioning device, accurate and convenient pole piece positioning die cutting
*Vertical burr≤15μm, horizontal burr≤20μm;
*Long tool life, normal use ≥ 30,000 times
*Pneumatic-liquid pressurized cylinder driven, punching force and punching speed are adjustable
*With safety protection light curtain Product Parameters

Product Name	Die cutter Machine
Model No.	ACEY-SDC-1
Punching size	280x180mm (can be customized according to customer requirements)
Punching accuracy	±0.1 mm
Booster cylinder	3T
Die cutting stroke	150mm
Capacity	800~2000EA/H (sheet die cutting efficiency is slightly lower)
Power supply	220V/50Hz
Power	100W
Compressed air	0.5Mpa~0.8 Mpa
Dimensions	L590xmmW415mmxH900mm
Equipment weight	190KG

Q1:How to order?
A: Please send us your purchase order by email or call us sales, or we can make the proforma invoice under your request.We need to know the following information for your order before sending your Pl. Payment methods? T/T, L/C, D/P and so on.
1)Product information-quantity, specification(size, material, technological if needed and packing requirements etc.)
2)Shipping information-company name, street address, phone number,destination sea port.
Q2: How to control quality?
A,All the raw materials by IQC(Incoming Quality Control) before launch whole process into the process after the screening,
B, Process each ink in the process of IPQC(Input Process Quality Control)patrol inspection.
C, After finished by QC full inspection before packing into the next process packing.
D, OQC before shipment for each slipper to do full inspection.
Q3:How do I install and operate the machine myself?
A: Our system development is based on the integrated development view, when you get the machine, just connect it to the power supply and the machine is ready to work, as the English software is already installed on the machine, all you need to do is to learn how to use the software, a complete English user manual will be sent to you with the machine.
Q4: How do I get technical support after purchase?
A: Our factory provides online technical support in English, you can get to know us easily online through Skype, Wechat, WhatsApp or E-mail. If you need any remote assistant support, we will support you through Team viewer software.
Q5:What's the warranty for the items?
A: We are very confident in our products and we package them very well so you will usually receive your order in perfect condition. The warranty on the equipment is one year (12 months) and if any part of the equipment is damaged within one year due to non-human factors, we will provide a replacement part free of charge.
Q6:Can I customize products?
A: Yes, OEM&ODM is available! we can provide not only standard machines but also customized machines according to your requirements. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
