High Frequency Metal Ceramic Power Grid Tube Vacuum Triode (8T25RA)

Product Description

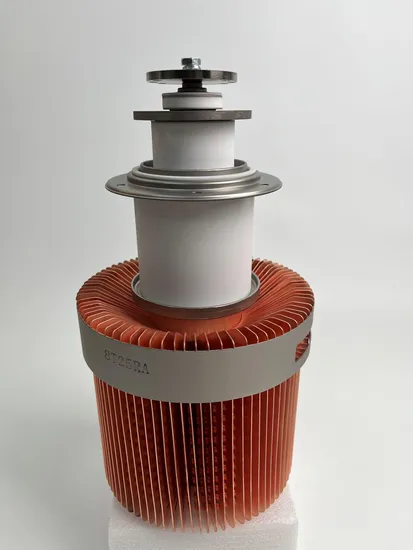

8T25RA, it is metal ceramic high-power triode, with the directly heated thorium tungsten cathode, the anode is cooled by forced air. Max anode dissipation power 15kW, when the frequency is less than 40MHz, the continue output power can up to 28kW, this tube is mainly used as oscillators and amplifiers in industrial high frequency medium heated equipments. Electrical Characteristics

Filament Voltage	8±0.5V
Maximum filament impulse current	240A
Filament Current	130A
Amplification Factor	20
Transconductance(1a=2A)	24mA /V
Interelectrode Capacitances
Grid - Anode	32pF
Grid - Filament	46pF
Anode - Filament	1.8pF
Maximum working frequency	40MHz
Maximum Diameter	202mm
Maximum Height	402.5mm
Weight	10.7kg
Operating position	Vertical or anode down
Cooling	Forced air
Anode cooling air flow	25m³/min
Air flow on filament heat	1m³/min
Max temperature at any point tube envelope	250ºC
The highest temperature terminal	200ºC

Limit Working Conditions:
Rf Power Amplification and Oscillation
(Class C telegraphic state)

DC Anode Voltage	14kV
DC Anode Current	4.5A
DC Grid Voltage	-2000V
DC Grid Current	0.8A
Grid Dissipation	400W
Anode Dissipation	15kW

Typical Operation:
(Oscillating)

Frequency	40MHz
DC Anode Voltage	10V 12V
DC Anode Current	4 3.7A
DC Grid Current	0.4 0.4A
Grid Resistance	2.5 2.8kΩ
Anode Output Power	28 31kW

Dimension(mm) Product Picture
Product Description 8T25RA is a High frequency metal ceramic Power grid tube triode designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This tetrode may be operated in CW or pulse modes.
For operation in pulse mode, the parameters depend on each equipment characteristics.
