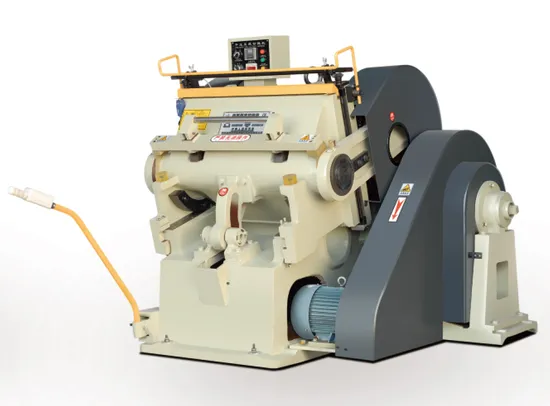

Die Creasing or Die Cutting Machine for Paper Sheets (ML-750)

Product Description

Die Creasing or Die Cutting Machine for Paper Sheets (ML-750) Detailed Photos
Features:
High strength due to one piece casting by using top-ranking material for machine body.
Single plate electromagnetic clutch is sensitive and reliable.
Operating position is reasonably arranged, moving-bed can be opened to its optimum. Buttons controlled is stable.
Skipping is accurate, so as to save foils.
With three functions of continuous creasing and cutting,opening dwell operation and closing dwell operation and large dwell adjusting range.
Safety system is reliable.
All models can be optional: Air brake clutch,Pneumatic jacking device,Infra-red Light safety device, Centralized Automatic oil pump,Centralized manual oil pump.

Model	ML1100	MODEL 750
Working Area (mm)	1100*800	750*520
Work Speed(times)	20+-2min	25+-2min
Maximum length (m)	30	15
Power(kw)	4kw	2.2kw-6h
Machine weight (kg)	4000	2000
Dimension (mm)	2020*2010*1900	1450*1600*1450

CREASING AND CUTTING MACHINE CONFIGURATION LIST
Body casting: HT200
Large bearing: composite tile
Gear: ZQSn6-6-3, QT600-3
Bearing: Harbin (one of the three major brands China bearing)
Contactor: Sch
Time relay : South
Electronic counter Baile
Air switch: LG
Limit switch: Sch
Option:1. Electrical central oil lubrication system Oil container IR safety system #63 Eccentric copper sleeve CE standard machine cover frame
Follow your requirements to offer different models!!
