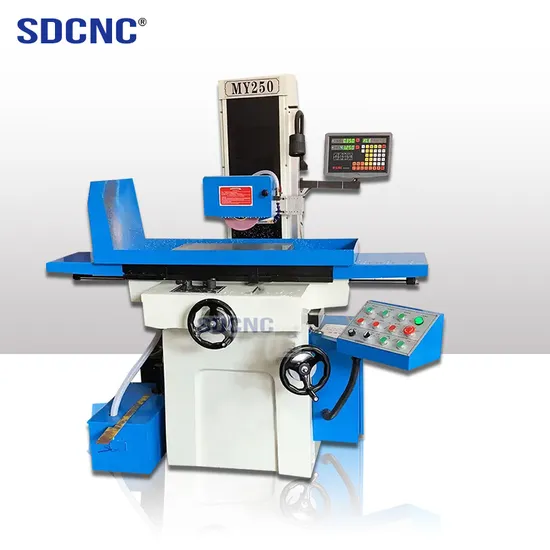

MY250 Hydraulic Metal Rotary Round Table Centerless Cylinder Head Surface Grinder Machine
| US$3,500.00-4,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MY250
Type
Surface Grinding Machine
Processing Object
Gear
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Wheel Size
250*540*420
Slide Table
V Flat Rail
Table Maximum Load
220
Table Size
250*500
Transport Package
Wood Packaging
Specification
1250*1400*1800
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
125.00cm * 140.00cm * 180.00cm
Package Gross Weight
900.000kg
Product Description
SPECIFICATIONS| technical specifications | MY250 | |
| The grinding wheel size (o. d * w * i. d.) | 250*540*420 | |
| Maximum longitudinal movement of the working table | 500 | |
| Maximum horizontal displacement of the working table | 200 | |
| Maximum distance from working table to spindle center | 420 | |
| Slide table | V Flat rail | |
| Table maximum load | 200 | |
| Table size (length * width) | 250*500 | |
| Table T type slot | 14×1 | |
| After the feed hand wheel | 0.02/grid 2.5/round | |
| Start feed wheel | 0.01/grid 2.0/round | |
| Feed Rate | 0.002mm | |
| Digital Display | 0.001 | |
| Grinding wheel size (outer diameter * width * inner diameter) | 200*30*31.75 | |
| Spindle speed | 50Hz | 2850 |
| Main motor | 1.5 | |
| Cooling pump | 40 | |
| The surface of the base of parallelism | 300:0.006 | |
| Surface roughness | Ra0.32 | |
| Machine tool overall size (L * w * h) | 1.25*1.4*1.8 | |
| Gross weight, net weight | 0.95 | |
COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC
machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe,
CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC
products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tool
