WiFi Connection Electronic Mineral Blast Vibration Test/Sam-20 Blasting Vibration Monitor

Product Description

Product Description SAM-20 Blasting Vibration Monitor
Specification
Blasting vibration Monitor satisfies all the needs of blasting vibration recording happened in the engineering projects of construction, mining, bridge, tunnel, roads and so on. Consultants equipped it as a must for blasting affection estimation as well as people works in the seismic institutes or related universities.

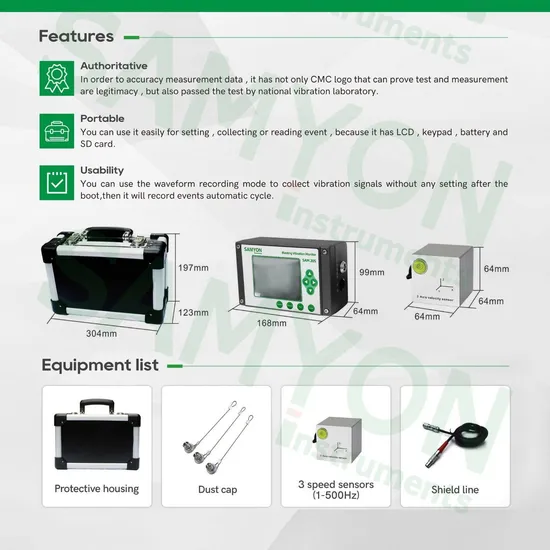

Authoritative In order to accuracy measurement data, it has not only CMC logo that can prove test and measurement are legitimacy, but also passed the test by national vibration laboratory.
Portable You can use it easily for setting, collecting or reading event, because it has LCD, keypad, battery and SD card.
Usability
You can use the waveform recording mode to collect vibration signals without any setting after the boot, then itwil1 record events automatic cycle.
Technical Advantages
1. WIFI connection can realize remote monitoring.
2. All 3 speed sensors in one make cable setting easy.
3. A/D resolution reaches 24 bit, which makes waveform smooth and precise.
4. 8-keytactile keypad drives simple menu operations.
5. Without any setting in automatic mode.
6. Used fully transition away from compute.

System	24 bit A/D quantization precision1/16777216
Channel	3 channels
Range	Speed:0.0001-35.5cm/s Frequency: 1-500Hz
Accuracy	Precision for acquisition: 5%
Work pattern	Automatic or manual
Record length	1-200 sec or adaptation
Record mode	Continuous
Sample rate	1-50 KHz adjustable
PC interface	WIFI and Rj45
Storage	4G flash
LCD screen	3.5 inches LCD
Clock precision	≤5sec per month
Working temperature	-10°F~ 75°F
Battery	Rechargeable sealed lithium cell, capacityfor24 hours of continuous working

SY-6360 Ultrasonic Crosshole Pile Testing System
Application
This instrument is specially designed to detect the completeness of foundation piles by acoustic-transmission method.
Standard
ASTM D6760
Specification
Technical code for testing of building foundation piles JGJ 106-2003
Technical specification of Dynamic pile tests for Highway Engineering JTG/TF81-01-2004
Technical specification for inspection of concrete defects by ultrasonic method CECS21:2000
Technical specification for detecting strength of concrete by ultrasonic-rebound combine method CECS 02:2005
Code for investigation of geotechnical GB50021-2001
Purpose
Testing of building foundation piles by cross-hole sonic logging;
Inspection of concrete defects by ultrasonic method, such as uncompacted, cellular, hole area.
Detecting strength of concrete by ultrasonic-rebound combine method
Detecting strength of concrete crevice by ultrasonic-rebound combine method
Detecting defects of one hole by one trigger two receives
Testing dynamic performance of geotechnical investigation, rock, concrete etc

Specification

Channel	2/3/4
Transmitted pulse width	20us
Main Controller	ARM A8 1GHZ 16G
Bandwidth	2~500kHz
Sampling mode	Synchronous sampling
Receiving sensitivity	<=10μV
Sonic time range	2*106μs
Interchannel crosstalk	=<60dB
Record length	0.5~4k
Power supply	Li battery,can work more than 8hours
First wave judging method	Iteration/Threshold method
Working temperature	-10ºC~+45ºC
Gain Dynamic Range	107dB
WIFI communication	time=<1s/Distance=<100m
Gain accuracy	0.4dB
Sampling interva	5cm ~ 100cm selectable
Sections	1/3/6
Max pulling speed	60m/minute

Other Product SY-8360 Ultrasonic Drill Hole Monitor
Application
Testing the drillhole and groove quality of the railway, highway, sea port and other high buildings.
Standard
DGJ32/J 21-2009DB 29-112-2004T/CECS 596-2019T/CECS 597-2019JTG/T 3512
Specification

Probe Size	104*104*300mm
Winch Size	800*500*390mm
Probe Weight	14kg
Winch Weight	65kg
Test Depth	100m/150m,resolution=<5mm, accuracy =<0.1%
Test Range	300mm~11000mm(hole diameter), mud ratio =<1.4g/cm3
Lifting Speed	0-20m/min,adjustable
Ultrasonic	Frequency 83KHz,transmit voltage 1000V
Power Supply	AC 220V 50Hz / Li battery
Working Temperature	-20ºC~+80ºC

Sediment Thickness Tester
Application
Used to test the sediment thickness of the bored pile hole
Standard
DGJ32/J 21-2009DB 29-112-2004T/CECS 596-2019T/CECS 597-2019JTG/T 3512
Specification

Application	Standard
Used to test the sediment thickness of the bored pile hole	DGJ32/J 21-2009DB 29-112-2004T/CECS 596-2019T/CECS 597-2019JTG/T 3512
Used to test the sediment thickness of the bored pile hole	DGJ32/J 21-2009DB 29-112-2004T/CECS 596-2019T/CECS 597-2019JTG/T 3512
Used to test the sediment thickness of the bored pile hole	DGJ32/J 21-2009DB 29-112-2004T/CECS 596-2019T/CECS 597-2019JTG/T 3512
Used to test the sediment thickness of the bored pile hole	DGJ32/J 21-2009DB 29-112-2004T/CECS 596-2019T/CECS 597-2019JTG/T 3512
Used to test the sediment thickness of the bored pile hole	DGJ32/J 21-2009DB 29-112-2004T/CECS 596-2019T/CECS 597-2019JTG/T 3512
Used to test the sediment thickness of the bored pile hole	DGJ32/J 21-2009DB 29-112-2004T/CECS 596-2019T/CECS 597-2019JTG/T 3512
Used to test the sediment thickness of the bored pile hole	DGJ32/J 21-2009DB 29-112-2004T/CECS 596-2019T/CECS 597-2019JTG/T 3512
