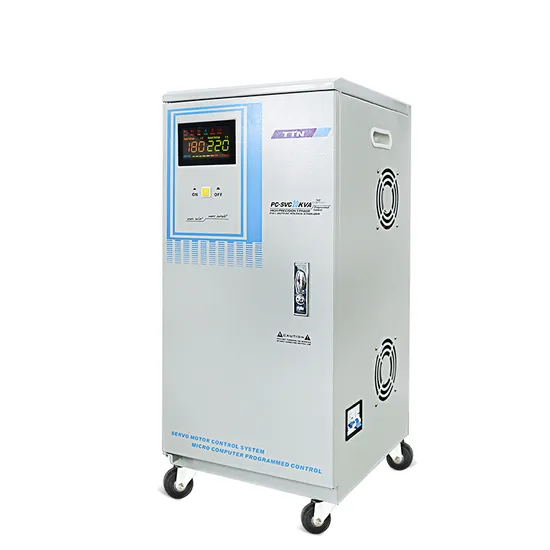

High Quality Servo Motor Control AC Automatic Voltage Stabilizer Pcsvc-15000va
| US$255.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
PCSVC-15000VA
Frequency Characteristics
Intermediate Frequency
Usage
Triac
Frequency
Intermediate Frequency
Size
Medium
Iron Core Shape
U
Power Source
Switching Regulated Power Supply
Application Range
Electricity Unstable Area
Brand
Ttn
Input Voltage
AC150V-260V
Weight
57kgs
Info
Input Voltage/Output Voltage/Load Usage/Time Delay
Technology
Servo Control+Micro Computer Ptogramed Control
Output Voltage
220V+/-3% Adjustable
Transport Package
Stardard Exporting Carton
Specification
CE, ISO: 9001
Trademark
TTN
Origin
Wenzhou, Zhejiang, China
Production Capacity
50000units/Month
Product Description
Advantages:1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect
4.Wide input voltage range
5.Efficiency more than 90%
6.No additional waveform distortion
Specifications:
1.Model:PCSVC-15000VA
2.Input Voltage:AC150V-260V
3.Output Voltage:220v±3% adjustable
4.Frequency:50HZ/60HZ
5.Phase: Single Phase
6.Packing Size:42.0*52.0*91.0cm
7.G.W.:57kgs
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment
| Model | PCSVC-10000VA | PCSVC-15000VA | PCSVC-20000VA | PCSVC-30000VA |
| TECHNOLOGY | Servo Motor Control System+Micro computer ptogramed control | |||
LED DISPLAY | Info | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | ||
Protection | Over voltage | Output Voltage≥243±4V | ||
| Low Voltage | Output Voltage≤188±4v | |||
| Over Loading | More than 120% | |||
| Over Temperture | 120ºC±10ºC | |||
| Delay Time | Long time(255 seconds)/Short time(5 seconds) | |||
| Circuit Breaker | Regulator/Bypass | |||
| Language | English/Russian/Chinese | |||
| INPUT VOLTAGE | AC150V-AC260V | |||
| OUTPUT VOLTAGE | 220V±3% adjustable | |||
| FREQUENCY | 50HZ/60HZ | |||
| PHASE | Single Phase | |||
| EFFICIENCY | ≥90% | |||
| AMBIENT TEMPERATURE | -15ºC-45ºC | |||
| RELATIVE HUMIDITY | <95% | |||
| WAVEFORM DISTORTION | No additional wave from distortion | |||
| INSULATING RESISTANCE | Normally more than 2MΩ | |||
| SPECIFICATIONS | ||||
| POWER | 10000VA | 15000VA | 20000VA | 30000VA |
| PACKING SIZE(CM) | 43.0*45.0*72.0 | 42.0*52.0*91.0 | 42.0*52.0*91.0 | 51.5*48.0*94.0 |
| PACKING(pcs) | 1 | 1 | 1 | 1 |
| G.M(kgs) | 54.00 | 57.00 | 66.00 | 85.00 |
