High Quality Round Frame Seal RS 100 AISI 316 for Cable and Pipeline Structure Drilling with Preformed Hole Good Price

Product Description

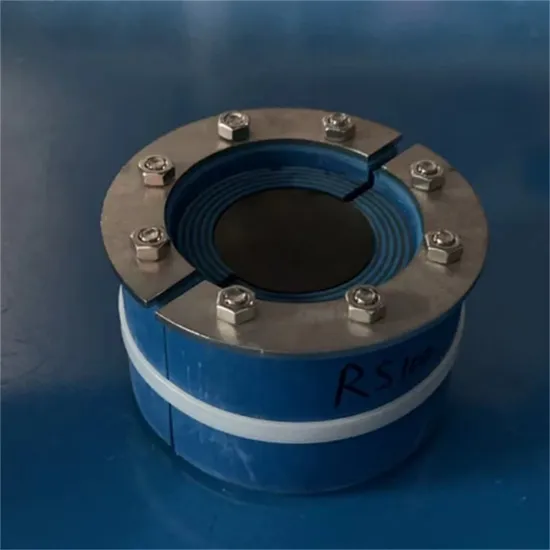

The utility model relates to a circular inlet seal, which is composed of two half stripping core layers, and the middle can be adapted to different specifications. The compactor is integrated into the seal. Can be installed around existing cables or pipes.
Connected by opening expansion
For single cable or pipe
Sleeve fittings are available

Sealing fYRame	(mm)Z Sealing scope	(mm) Hole diam(mm )	Matching pipe spec	(mm) exteYRnal pipe
YRS-25	0+3.6-12	25-26	C(F)25	34
YRS-50	0+8-30	50-52	C(F)50	63
YRS-75	0+24-54	75-77	C(F)75	89
YRS-100	0+48-70	100-102	C(F)100	114
YRS-125	0+66-98	125-127	C(F)125	140
YRS-150 woC	93-119	150-152	C(F)150	164
YRS-175 woC	119-145	175-177	C(F)175	189
YRS-200woc	138-170	200-203	C(F)200	214
YRS-225 woC	151-181	225-228	C(F)225	239
YRS-250 woc	176-206	250-253	C(F)250	264
YRS-300 woC	206-236	300-303	C(F)300	314
YRS-350woc	244-286	350-353	C(F)350	364
YRS-400 woc	294-336	400-403	C(F)400	414
YRS-450woc	344-386	450-453	C(F)450	464
YRS-500woc	394-436	500-503	C(F)500	514
YRS-550 woc	444-486	550-553	C(F)550	564
YRS-600woc	494-536	600-603	C(F)600	614
