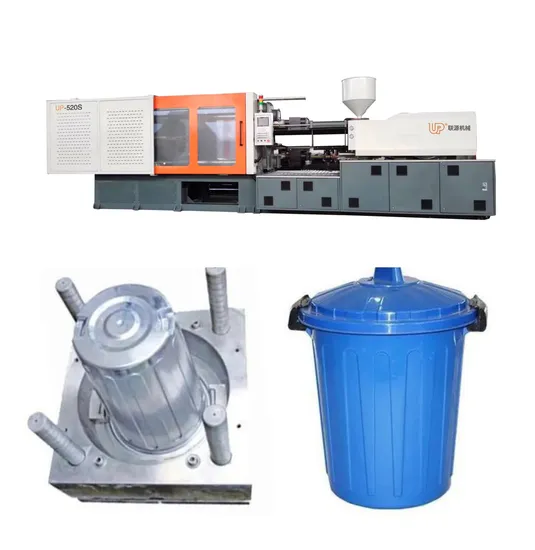

Plastic Paint Bucket Oil Tanks Making Moulding Injection Molding Machine

Product Description

China servo injection molding machine.

A. modulus of capacitance: The position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the injection molding machine guide pillar (Green column).standard injection molding machine manufacturer

B .nozzle parameters: spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, positioning aperture.standard injection machine. C. code mold parameters: code mold hole, slot size.ce standard injection molding machine. D .Ejection mechanism: The position of the ejection point and the diameter of the ejector rod, and if necessary, the ejection force and ejection stroke are also provided.
E. Mold opening stroke and maximum opening distance.plastic injection machine

Technical Parameters	Model UP-520T
Injection Unit	A	B	C
Screw diameter (mm)	80	85	90
Shot Volume (cm3)	2135	2410	2702
Injection weight (g)	1943	2194	2495
injection pressure (Mpa)	168	148	132
Screw speed (rmp)	230
Clamping Unit
Clamping force (KN)	5200
Open stroke (mm)	850
Max Mold height (mm)	810
Min Mold height (mm)	330
Space between tie bars(mm)	830x830
Ejector force (KN)	150
Ejector stroke (mm)	240
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	45(63)
Heating power (KW)	31.5
Machine dimension (M)	8.4x2x2.76
Machine weight (T)	21
Oiltank cubage (L)	900

FAQ
1: Are you a trading company or a manufactory?
We are a manufactory, we supply the factory price with good
quality, welcome to visit !
2:Do you have QC or any safety standards for your plastic injection molding machine?
yes,we have established a highly strict quality control department to guanrantee good quality.
3:Why choose our plastic injection molding machine?
High quality with competitive price
4::How about quality control in your factory?
"Quality is first, Customers are friends".
5:Can you help us with the shipment of this machine ?
Yes , with honor ,we have our special shipment company which
already cooperate
