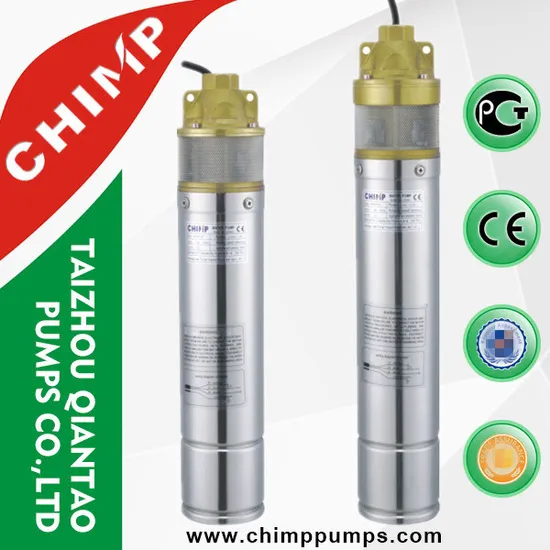

Brass Impeller High Pressure Unit Centrifugal Submersible Pump

Product Description

Company profile
History: More than 20 years experience of manufacturing pumps and motors;
Scale: Cover working area of 11000 square meters and around 300 employees;
Technology: Three groups of professional technical engineers and strong R& D team;
Management: Scientific ERP management and strict quality control system;
Equipments: Automatic wiring machine, Automatic paint spraying equipment, CNC precision automatic lathe, electrophoresis line;
Innovation: Continuously diversity products range to satisfy customers' needs;
Production capacity: 60000 pcs/month
Marketing network: Africa, America, Asia and Europe
Certificates: CE, RoHs, ISO9001
Marketing models: Exports and domestic sales
IDENTIFICATION CODE
SKM
4: Well diamater: 100mm(4")
SK: pump name
M: Single motor( Three phase without M)
100: Power code

APPLICATIONS
For water supply from wells or reservoirs.
For domestic use , for civil and industrial applications.
For garden use and irrigation.

OPERATING CONDITIONS
Maximum fluid temperature up to +35ºC
Maximum sand content: 0.25%
Maximum immersion: 50M
Minimum well diameter: 3"/4"

MOTOR AND PUMP
Rewindable motor, full obturated screen motor
Three phase: 380v-415v/50hz or 60hz
Single phase: 220v-240v/50hz or 60hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standard

OPTIONS ON REQUEST
Special mechanical seal
Other voltages or frequency viable

Model		P2		DELIVERY n=2850 1/min
1~ 220V/240V	3~ 380V/415V	kW	HP	Q	l/min	0	5	10	15	20	25	30	35	40	45
					m3/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
3SKM75	3SK75	0.55	0.75	H(m)		35	30	27	24	20	16	11	7	1
3SKM100	3SK100	0.75	1.0			58	51	45	38	30	26	21	15	3
4SKM100	4SK100	0.75	1.0			61	57	54	45	40	36	32	28	20	3
4SKM150	4SK150	1.1	1.5			100	90	83	68	62	54	43	38	22	5
4SKM200	4SK200	1.5	2.0			130	110	100	85	75	70	64	60	40	8

FAQ

Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year!

Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.

Contacting information:
TAIZHOU QIANTAO PUMPS CO.,LTD(CHIMP)
TEL: 0086-576-86330365
FAX: 0086-576-86334238
WEB: chimppumps.en.made-in-china.com
