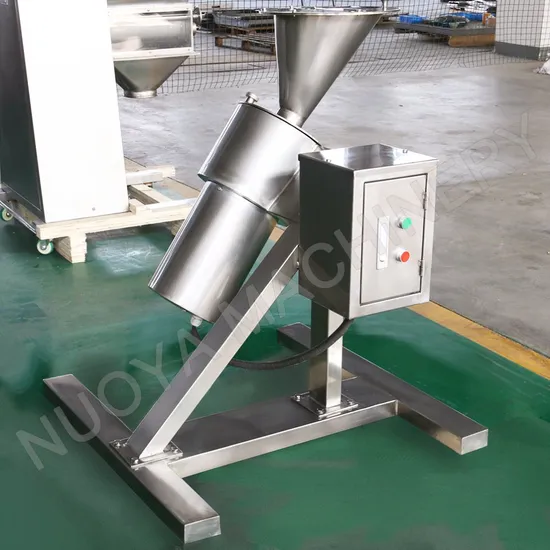

Zlk-160 Series High Speed Granulator

Product Description

Zlk-160 Series High Speed Granulator
Our machine has been used successfully, for many years in pharmaceutical, chemical and food industries, it is designed with filter net and shaft.
It can be easy to crush a block of material. The friction filter can make solid granule on a big block of material according to centrifugal force principle,
Characteristic
1, Consistent adherence to specific pharmaceutical guidelines guarantee that the machines conform to GMP standards.
2, Fast and easy exchange of the various screens and breaker inserts.
3, Special friction screen inserts mill and sieve hard products simultaneously grinding oversized agglomerates. Therefore, If this equipment is used together with and granulator the uniformity of granules will be greatly improved.

TYPE	ZLK-80	ZLK-120	ZLK-160	ZLK-200
Spin Spring length mm	185	185	185	185
Sieve pore Dia mm	1-8	1-8	1-8	1-8
Output kg/h	50-100	100-200	150-300	200-400
Power kw	0.55	1.1	1.5	2.2
Rotate speed r/min	1500-3000	1000-1500	1000-1500	800-1000
Size mm	650*450*1000	1000*800*1200	1060*850*1350	1100*1000*1500
Net Weight kg	100	180	230	280
