45° Slant Bed CNC Machine with High Rigid Lpt15L CNC Lathe for Lathe for Long Pipe

Product Description

Product Description

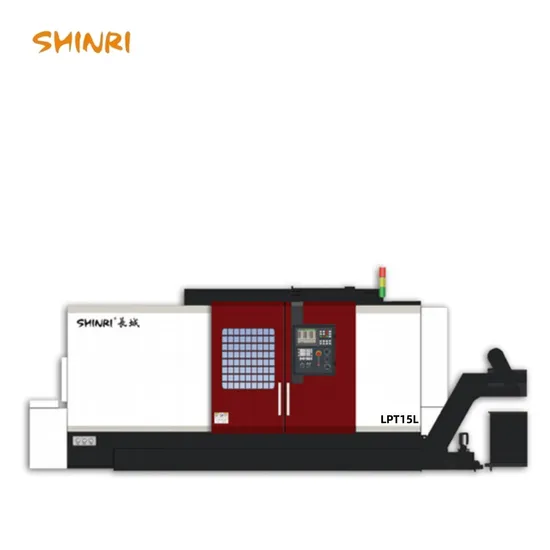

1.LPT series CNC oil country lathe is special CNC machine designed for petroleum machinery industry, which is used for cylindrical turning, face cutting, grooved, chamfered, external thread, boring hole and turning internal thread on the end of long tube parts such as oil casing, drill pipe, drill collar etc.
2.The whole series can be used with automatic loading and unloading system of oil casing, drill pipe, drill collar to combine into efficient automatic production lines, which is appropriate for terminal thread batch processing of oil casing, drill pipe, drill collar and features short beat, high efficiency, wide processing range, high automation, safe and reliable.
3.The whole series adopts hydro mechatronics design. The 45°slant machine with high rigid rectangular plastic covering sliding guide pair features good dynamic performance and high stability. The machine with beautiful design and brief shape features safe, reliable, and fully embodied man-machine function, which is the quality equipment of high precision, high efficiency, high stability for turning processing.
Product Parameters

Specification	Unit	LPT10	LPT15	LPT15L	LPT15T	LPT20	LPT20L	LPT36	LPT36T
Max. swing duameter over bed	mm	Φ630	Φ680	Φ630	Φ780	Φ800	Φ680	Φ1050	Φ1050
Max. swing diameter over saddle	mm	Φ440	Φ460	Φ440	Φ640	Φ640	Φ460	Φ450	Φ450
Through hole diameter of spindle	mm	Φ120	Φ150	Φ150	Φ150	Φ225	Φ220	Φ375	Φ375
Spindle speed	rpm	25~1200	20~800	20~800	20~1250	20~550	20~550	30~300	30~300
Machining range of API oil casing and tubin maching	mm	1.315″~4″	2 3/8″~5 1/2″	2 3/8″~5 1/2″	1.9″~5 1/2″	4 1/2″~7 5/8″	4 1/2″~7 5/8″	6 5/8″~13 3/8″	6 5/8″~13 3/8″
Max. machining length	mm	750	1160	550	600	1200/2500	920	540	500
Control system		FANUC 0i-TF	FANUC 0i-TF	FANUC 0i-TF	FANUC 0i-TF	FANUC 0i-TF	FANUC 0i-TF	SIEMENS 802D-SI	FANUC 0i-TF
Frequency converter		YASKAWA	×	×	×	×	×	ABB	ABB
Brand of spindle motor		sfcmotor	FANUC spinled servo	FANUC spinled servo	FANUC spinled servo	FANUC spinled servo	FANUC spinled servo	ABB frequency conversion	ABB frequency conversion
Power of spindle motor	kW	22/30	22/30	22/30	30/37	22/30	22/30	75	160
Rapid travel speed	m/min	10/12	9/13	10/12	X1/Z1:10/12; X2/Z2:10/12	12/12	9/13	10/10	10/10
Spindle head type		A2-11	A2-11	A2-11	A2-11	A2-15	A2-15	Cylindrical nose Φ440	Cylindrical nose Φ440
Pneumatic chuck through hole	mm	Φ115	Φ150 or 160	Φ150 or 160	Φ150	Φ230	Φ230	Φ335	Φ375
Turret		AK31125*8 (B type)	BSV250*8	BSV250*8	Top table: bsv-250*8 Setting table: Staic tool holder	LS320*12	LS320*8	AK31125*8 (B type)	Top table: bsv-250*8 Setting table: Staic tool holder
OD shank size		32×25	32×32	32×25	32×25(Capto C6)	32×32	32×32	32×32	32×32(Capto C6)
Oil cooler		×	×	×	√	√	√	√	√
Cooling pumps		PM-35A	PM-35A	PM-35A	CDLK2-260/26	PM-35A	PM-35A	CDLK2-260/26	CDLK2-260/26
Sizing device		Axial stop device	Axial stop device	Axial stop device	×	Axial stop device	Axial stop device	×	×
Beam device		×	×	×	√	×	×	√	√
Rotary hydraulic cylinder		×	×	×	√	×	×	√	√
Stock stop		×	×	×	√	×	×	√	√
Overrall dimension(including chip conveyor)	mm	4935×1860×1910	5960×1950×2065	4845×1860×1910	5960×1950×2065	6065/7400×2820×2340	5960×1950×2065	6080×3460×2875	6080×3460×2875
Machine weight	T	9	12.5	9.5	14	16/21	13.5	25	26
