16/24-Port 100 Mbps + 2-Port Gigabit Managed Poe Switch with Plug and Play Supports IP and Mac Binding Based on Port (PFS4218-16ET-190/240/PFS4226-24ET-240/360)

16/24-Port 100 Mbps + 2-Port Gigabit Managed Poe Switch with Plug and Play Supports IP and Mac Binding Based on Port (PFS4218-16ET-190/240/PFS4226-24ET-240/360)

US$129.00-199.00 1 Piece (MOQ)

Basic Info.

Model NO.
PFS4218-16ET-190/240/PFS4226-24ET-240/360
Ports
≧48
Certification
CE, ISO, RoHS, GS
Condition
New
Wiring Devices
Cat 5e Cable
Standby Consumption
0.2W(Under Free Load)
Max Consumption
45W(Under Full Load)
Dimensions
179mm*107mm*30mm(L*W*T)
Weight
0.3 Kg
Transport Package
Paper Box
Specification
CE, FCC, ROHS,
Trademark
Dahua without logo
Origin
China
HS Code
8525801390
Production Capacity
10000PCS/Month

Packaging & Delivery

Package Size
65.00cm * 60.00cm * 50.00cm
Package Gross Weight
4.800kg

Product Description

Product Description 16/24-port 100 Mbps + 2-port Gigabit Managed PoE Switch With Plug and play supports IP and MAC binding based on port(PFS4218-16ET-190/240/PFS4226-24ET-240/360)

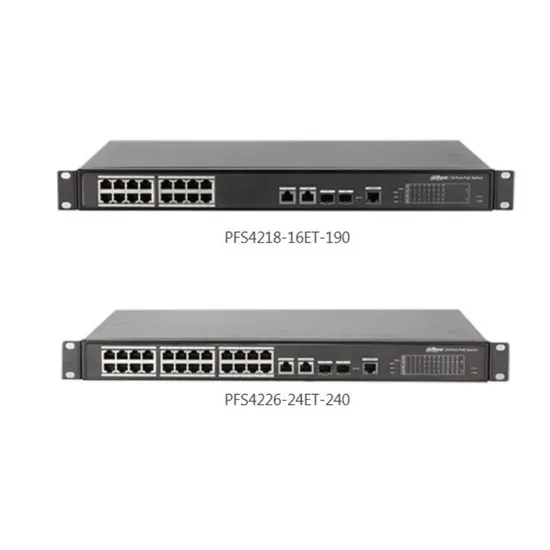

PFS4218-16ET-190 16-port 100 Mbps + 2-port Gigabit Managed PoE Switch
* The parameters and datasheets below can only be applied to V2.0 (version 2.0)
> Intelligent PoE
> Red port supports 90W IEEE802.3bt
> Web management with friendly interface and easy operation
> 250 m long distance PoE transmission
> PoE watchdog
> Plug and play
Performance
Layer
 Layer 2
Managed
 Yes
Switching Capacity
 8.8 Gbps
Packet Forwarding Rate
 5.36 Mpps
Packet Buffer Memory
 2.75 Mbit
MAC Table Size
 4K
Communication Standard
 IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab;
IEEE 802.3z
Hardware Feature
Standard Power Supply
 Yes
PoE
 Yes
Ethernet Port
 16
Optical Port
 2
Ethernet Port Rate
 100 Mbps
Optical Port Rate
 1 Gbps
Number of Bussiness Card Slots
 Port 1-16: 16 × RJ-45 10 M/100 M (PoE)
Port 17-18: 2 × RJ-45 10 M/100 M/1000 M (uplink)
Port 17-18: 2 × SFP 1000 M (uplink) (combo)
Debugging
 Console × 1
Power Supply
 100V-240V AC
Operating Temperature
 -10 °C to +55 ° (14 °F to 131 °F)
Operating Humidity
 10% RH-90% RH
Power Consumption
 Idling: 10W
Full load: 190W
PoE
PoE Standard
 IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
PoE Budget
 Port 1-2 ≤ 90W, Port 3-16≤ 30W, total ≤ 190W
PoE Pin Assignment
 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Management
 Power consumption management
Power on and power off
Power down for overload
Green PoE
Legacy support
Long Distance PoE Transmission
 250 m long-distance power supply
Function
Spanning Tree Protocol
 IEEE 802.1d (STP); 802.1w (RSTP)
VLAN
 IEEE802.1q Standard VLAN
Flow Control
 Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Link Aggregation
 Static; LACP
Port Mirroring
 One-to-one; multiple-to-one
Multicast
 GMP snooping based on port
DHCP
 DHCP client
Security
 Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication
QoS
 High and low priority
WRR
802.1P
DSCP
Priority based on protocol
General
ESD
 Air discharge: 8kV
Contact discharge: 6kV
Thunder-proof
 Common mode: 4kV
Differential mode: 2kV
Dimensions
 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") (L × W × H)
Packaging Dimensions
 Packing box: 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33") (L × W × H)
Protective box: 584 mm × 549 mm × 446 mm (22.99" × 21.61" × 17.56") (L × W × H)
Transmission Performance:
Switch power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m)
 Load Capacity(W)
 Bandwidth(Mbps)
IEEE802.3bt 90 W
100
 71.3
 100
150
 62
 10
200
 51
 10
250
 40
 10
Hi-PoE 60 W
100
 53
 100
150
 50
 10
200
 47
 10
250
 37
 10
IEEE802.3at 30 W
100
 25.5
 100
150
 25.5
 10
200
 25.5
 10
250
 25.5
 10
PFS4218-16ET-240 16-port 100 Mbps + 2-port Gigabit Managed PoE Switch
* The parameters and datasheets below can only be applied to V2.0 (version 2.0)
> Intelligent PoE
> Red port supports 90W IEEE802.3bt
> Web management with friendly interface and easy operation
> 250 m long distance PoE transmission
> PoE watchdog
> Plug and play
Performance
Layer
 Layer 2
Managed
 Yes
Switching Capacity
 8.8 Gbps
Packet Forwarding Rate
 5.36 Mpps
Packet Buffer Memory
 2.75 Mbit
MAC Table Size
 4K
Communication Standard
 IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab;
IEEE 802.3z
Hardware Feature
Standard Power Supply
 Yes
PoE
 Yes
Ethernet Port
 16
Optical Port
 2
Ethernet Port Rate
 100 Mbps
Optical Port Rate
 1 Gbps
Number of Bussiness Card Slots
 Port 1-16: 16 × RJ-45 10 M/100 M (PoE)
Port 17-18: 2 × RJ-45 10 M/100 M/1000 M (uplink)
Port 17-18: 2 × SFP 1000 M (uplink) (combo)
Debugging
 Console × 1
Power Supply
 100V-240V AC
Operating Temperature
 -10 °C to +55 ° (14 °F to 131 °F)
Operating Humidity
 10% RH-90% RH
Power Consumption
 Idling: 10W
Full load: 240W
PoE
PoE Standard
 IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
PoE Budget
 Port 1-2 ≤ 90W, Port 3-16≤ 30W, total ≤ 240W
PoE Pin Assignment
 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Management
 Power consumption management
Power on and power off
Power down for overload
Green PoE
Legacy support
Long Distance PoE Transmission
 250 m long-distance power supply
Function
Spanning Tree Protocol
 IEEE 802.1d (STP); 802.1w (RSTP)
VLAN
 IEEE802.1q Standard VLAN
Flow Control
 Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Link Aggregation
 Static; LACP
Port Mirroring
 One-to-one; multiple-to-one
Multicast
 GMP snooping based on port
DHCP
 DHCP client
Security
 Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication
QoS
 High and low priority
WRR
802.1P
DSCP
Priority based on protocol
General
ESD
 Air discharge: 8kV
Contact discharge: 6kV
Thunder-proof
 Common mode: 4kV
Differential mode: 2kV
Dimensions
 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") (L × W × H)
Packaging Dimensions
 Packing box: 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33") (L × W × H)
Protective box: 584 mm × 549 mm × 446 mm (22.99" × 21.61" × 17.56") (L × W × H)
Transmission Performance:
Switch power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m)
 Load Capacity(W)
 Bandwidth(Mbps)
IEEE802.3bt 90 W
100
 71.3
 100
150
 62
 10
200
 51
 10
250
 40
 10
Hi-PoE 60 W
100
 53
 100
150
 50
 10
200
 47
 10
250
 37
 10
IEEE802.3at 30 W
100
 25.5
 100
150
 25.5
 10
200
 25.5
 10
250
 25.5
 10
PFS4226-24ET-240 24-port 100 Mbps + 2-port Gigabit Managed PoE Switch
> * The parameters and datasheets below can only be applied to to V2.0 & V3.0
> Intelligent PoE
> Red port supports 90W IEEE802.3bt
> Web management with friendly interface and easy operation
> 250 m long distance PoE transmission
> PoE watchdog
> Plug and play
Performance
Layer
 Layer 2
Managed
 Yes
Switching Capacity
 8.8 Gbps
Packet Forwarding Rate
 6.55 Mpps
Packet Buffer Memory
 2.75 Mbit
MAC Table Size
 4K
Communication Standard
 IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab;
IEEE 802.3z
Hardware Feature
Standard Power Supply
 Yes
PoE
 Yes
Ethernet Port
 24
Optical Port
 2
Ethernet Port Rate
 100 Mbps
Optical Port Rate
 1 Gbps
Number of Bussiness Card Slots
 Port 1-24: 24 × RJ-45 10 M/100 M (PoE)
Port 25-26: 2 × RJ-45 10 M/100 M/1000 M (uplink)
Port 25-26: 2 × SFP 1000 M (uplink) (combo)
Debugging
 Console × 1
Power Supply
 100V-240V AC
Operating Temperature
 -10 °C to +55 ° (14 °F to 131 °F)
Operating Humidity
 10% RH-90% RH
Power Consumption
 Idling: 10W
Full load: 240W
PoE
PoE Standard
 IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
PoE Budget
 Port 1-2 ≤ 90W, Port 3-24 ≤ 30W, total ≤ 240W
PoE Pin Assignment
 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Management
 Power consumption management
Power on and power off
Power down for overload
Green PoE
Legacy support
Long Distance PoE Transmission
 250 m long-distance power supply
Function
Spanning Tree Protocol
 IEEE 802.1d (STP); 802.1w (RSTP)
VLAN
 IEEE802.1q Standard VLAN
Flow Control
 Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Link Aggregation
 Static; LACP
Port Mirroring
 One-to-one; multiple-to-one
Multicast
 GMP snooping based on port
DHCP
 DHCP client
Security
 Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication
QoS
 High and low priority
WRR
802.1P
DSCP
Priority based on protocol
General
ESD
 Air discharge: 8kV
Contact discharge: 6kV
Thunder-proof
 Common mode: 4kV
Differential mode: 2kV
Dimensions
 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") (L × W × H)
Packaging Dimensions
 Packing box: 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33") (L × W × H)
Protective box: 584 mm × 549 mm × 446 mm (22.99" × 21.61" × 17.56") (L × W × H)
PFS4226-24ET-360 24-port 100 Mbps + 2-port Gigabit Managed PoE Switch
* The parameters and datasheets below can only be applied to V2.0 (version 2.0)
> Intelligent PoE · Red port supports 90W IEEE802.3bt
> Web management with friendly interface and easy operation
> 250 m long distance PoE transmission
> PoE watchdog
> Plug and play
Performance
Layer
 Layer 2
Managed
 Yes
Switching Capacity
 8.8 Gbps
Packet Forwarding Rate
 6.55 Mpps
Packet Buffer Memory
 2.75 Mbit
MAC Table Size
 4K
Communication Standard
 IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab;
IEEE 802.3z
Hardware Feature
Standard Power Supply
 Yes
PoE
 Yes
Ethernet Port
 24
Optical Port
 2
Ethernet Port Rate
 100 Mbps
Optical Port Rate
 1 Gbps
Number of Bussiness Card Slots
 Port 1-24: 24 × RJ-45 10 M/100 M (PoE)
Port 25-26: 2 × RJ-45 10 M/100 M/1000 M (uplink)
Port 25-26: 2 × SFP 1000 M (uplink) (combo)
Debugging
 Console × 1
Power Supply
 100V-240V AC
Operating Temperature
 -10 °C to +55 ° (14 °F to 131 °F)
Operating Humidity
 10% RH-90% RH
Power Consumption
 Idling: 10W
Full load: 360W
PoE
PoE Standard
 IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
PoE Budget
 Port 1-2 ≤ 90W, Port 3-24 ≤ 30W, total ≤ 360W
PoE Pin Assignment
 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Management
 Power consumption management
Power on and power off
Power down for overload
Green PoE
Legacy support
Long Distance PoE Transmission
 250 m long-distance power supply
Function
Spanning Tree Protocol
 IEEE 802.1d (STP); 802.1w (RSTP)
VLAN
 IEEE802.1q Standard VLAN
Flow Control
 Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Link Aggregation
 Static; LACP
Port Mirroring
 One-to-one; multiple-to-one
Multicast
 GMP snooping based on port
DHCP
 DHCP client
Security
 Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication
QoS
 High and low priority
WRR
802.1P
DSCP
Priority based on protocol
General
ESD
 Air discharge: 8kV
Contact discharge: 6kV
Thunder-proof
 Common mode: 4kV
Differential mode: 2kV
Dimensions
 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") (L × W × H)
Packaging Dimensions
 Packing box: 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33") (L × W × H)
Protective box: 584 mm × 549 mm × 446 mm (22.99" × 21.61" × 17.56") (L × W × H)
Transmission Performance:
Switch power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m)
 Load Capacity(W)
 Bandwidth(Mbps)
IEEE802.3bt 90 W
100
 71.3
 100
150
 62
 10
200
 51
 10
250
 40
 10
Hi-PoE 60 W
100
 53
 100
150
 50
 10
200
 47
 10
250
 37
 10
IEEE802.3at 30 W
100
 25.5
 100
150
 25.5
 10
200
 25.5
 10
250
 25.5
 10
Company Profile PAIZE TECHNOLOGY LIMITED was founded in 2015, we have the professional sales and technical support team in Hangzhou. Since established, we are always focusing on the distribution of security products, and cooperate with the top3 manufacturer in security field. Our business covers many countries including Europe,
Africa,America, Asia, Australia, and so on.
The products we sell include DVRs, NVRs, IP cameras, HDCVI cameras, and so on. All the products we providing are original international versions and OEM orders are also welcome.
We will make great efforts to offer excellent pre-sales, sales, and after-sales service.
We adhere to the principle of "Customer Upmost, Service First" We are sincerely looking forward to your cooperation!

FAQ Q: How to confirm whether the product is Dahua's genuine English version?
A: You can download software from the official website of Dahua.Only Dahua's genuine product is compatible with the software. And we promise all of our products are Dahua genuine products.
Q: When will you ship my order?
A: For those in stock, we will ship orders within 1-5working days once we get a confirmation for payment
For those out of stock, delivery time is around one month
Q: Can l install the IP camera by myself?
A: Of course the camera is flexible and installed. And there is a user manual in the box.
Q: What's your payment method?
A: We accept T/TWesternUnion, MoneyGram, and Paypal
Q: Do you support drop shipping?
A: Yes, your drop shipping is available
Q: How about a warranty?
A: Three years warranty and you can contact us for any technical problems. Our technicians will support you in 24 hours.
>> Eco-Friendly Flat Bond Nylon Spun Bond Nownwoven Fabric for Home Textile
>> High-Performance Gl Series Side-End Milling Machines for Sale
>> Wholesale Red 8 Bright Organic Pigment
>> Aluminum Housing Outdoor Waterproof IP65 24V 24W LED Wall Washer Linear Light
>> 2kw Silent Gasoline Inverter Generator Set
>> Polyurethane Weatherstrip Seal Machine /PU Weatherstrip Seal Machine /Weatherstrip Seal Making Machine
>> Nt-140 Max. Mould Height 460mm Machine Plastic Injection Mold DIY for Medical Applications
>> High quality Wireless oral camera dental intraoral scanner
>> Yk-Phd3016 Professional Manufacturer High Speed CNC Drilling Machine for Steel Plates
>> 320 Ton Automotive Plastic Decorative Parts Manufacturing Haitian Injection Moulding Machine
>> CE Shantui Mini Size Digging Machine Se25sr Backhoe Bucket Hydraulic Mini Crawler Excavator
>> Red Yellow Flakes 60% Min Sodium Sulphide CAS 1313-82-2 for Dyeing and Printing Industry
>> ISO Approved Agricultural 3 Points Hanging Grass Mower 30-60HP Grass Mower
>> 2024 New Design Bottle Price Suppliers Fully Automatic Plastic Pet Bottle Blowing Machine
>> Hot Selling 100% Eucalyptus Fiber Bed Sheets Set Eucalyptus Lyocell Tencel Bedding Set
>> Taijia bjlf-1 Digital Crack Width Gauge crack gauge detector detect crack
>> Factory Good Quality 5 Liters Blow Mloding Plastic Jerry Can Blow Molding Machine
>> Fastest OEM Cat 6A 4pair U/FTP Cable 0.56 Made in China with CE/RoHS/ETL/CPR Test
>> Best Selling Medium Processing Tungsten Carbide Inserts Ccmt09t308-Hm Turning Insert for Steel Processing
>> Senke CNC Router Foam Wood Engraving Machine
>> Open Rubber Mixing Machine Series
>> Jm80b High Quality Ride-on Power Trowel Machinery with 13HP Gasoline Engine
>> Romeroca Supply 92/188 110/220 Plastic Extruder Extrusion Machine for Spc Flooring Production Line
>> European Style O-Ring Seal Clamp-in Brass Metal Truck Tyre Valve V3-20-2
>> First Aid Kit, Ambu Bag, Medical Silicone Manual Resuscitator
>> CNC Steel Metal Plate CNC Drilling Machine for Plate
>> Tractor Support Vertical Shaft Power Driving Harrow
>> Double Bin Plansifter for Flour Milling Corn Crushing Screening Machine Sieve Frame
>> Auto Parts Tail Lamp Back Light 81551-06440 81561-06440 For Camry
>> Industrial Warehouse Storage Steel Long Span Rack with Medium Duty Shelf
Product
