Hot Sale Concrete Machinery Hzs180 Concrete Batching Plant

Product Description

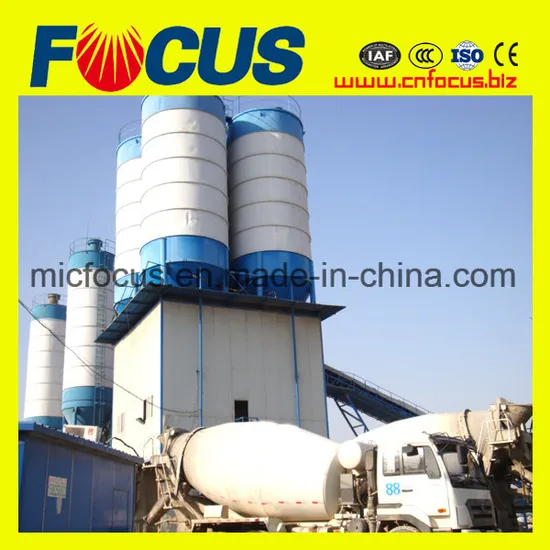

Hot Sale Concrete Machinery HZS180 Concrete Batching Plant
HZS180, JS3000 Concrete mixer, it can well fulfill the need of road, bridge, dam and marine construction. With the combination of our rich experience and European teconology. FOCUS Machinery has gotten a good reputation at home and abroard.
Advantages of Focus Belt Conveyor concrete batching plant:
1. Competitive price & high quality
2. Good after-sale service
3. ISO&CE certified with 1 year warranty
4. Reliable perfoemance
Parameters of FOCUS Belt Conveyor concrete batching plant:

Model	HZS60	HZS90	HZS120	HZS180	HZS240
Theoretical output(m³/h)	60	90	120	180	240
Mixer model	JS1000	JS1500	JS2000	JS3000	JS4000
Output per batch(m³)	1	1.5	2	3	4
Aggregate batcher	PLD2400	PLD2400	PLD3200	PLD4800	PLD6400
Total power(KW)	110	145	160	205	340
Aggregate weighing accuracy(%)	(0-3000)kg±2%	(0-4000)kg±2%	(0-4500)kg±2%	(0-4500)kg±2%	(0-6000)kg±2%
Cement weighing accuracy(%)	(0-600)kg±1%	(0-1000)kg±1%	(0-1200)kg±1%	(0-1800)kg±1%	(0-2400)kg±1%
Water weighing accuracy(%)	(0-400)kg±1%	(0-400)kg±1%	(0-600)kg±1%	(0-800)kg±1%	(0-1000)kg±1%
Fly ash weighing accuracy(%)	(0-400)kg±1%	(0-400)kg±1%	(0-600)kg±1%	(0-800)kg±1%	(0-700)kg±1%
Additive weighing accuracy(%)	(0-40)kg±1%	(0-40)kg±1%	(0-50)kg±1%	(0-50)kg±1%	(0-120)kg±1%
Discharge height(m)	3.8-4.2
Max. aggregate dia.(mm)	80-100
Cement silo and screw conveyor	On request
Total weight (ton)	46	60	71	87	112
Overall dimension(LxWxH)(m)	33.8x14.8x19.4	38x16x19.4	44x18x19.4	58.5x23.5x22	60x25x22

What are the main features of FOCUS Belt Conveyor concrete batching plant?
1. Adopting twin-shaft compulsory concrete mixer, FOCUS concrete mixing plant mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete;
2. Compact-structured planetary gear was adopted in our concrete mixing plant to ensure smooth, speedy and efficient transmission;
3. Concrete batcher can be designed as underground, partially underground or fully-above ground, 3-6 hoppers are pneumatically controlled by computer with fast and accurate instruct, whole job can be done in separate or accumulative models;
4. Aggregate belt conveyor is truss-framed for easy assembly, inclination angle is normally less than 20 degrees, however, it can be up to 45°by adopting through(groovy) belt when the ground area is limited for the concrete mixing plants;
5. Three-point suspension sensors equipped to guarantee accurate and fast powder and liquid weighing;
6. Dust collection system mainly aims at dealing with dust generated in the process of loading the mixer and pumping powder into the powder tank, the whole mixing plant is all in closed state;
7. UPS, stable performance Siemens PLC, high speed and precision weighing unit module combined with our professional control and monitoring software;
8. Full automatic and easy operated production process of material measurement, transfer, mixing and discharging.
9. Heating system and ice plant could be adopted into this concrete plant in severely cold and hot environment.
Thanks for visiting, by the time you are paying attention to us, our concrete batching plants are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visit us @ micfocus.en.made-in-china.com
