Ridge Cap Roll Forming Machine Nexus Ibr Ridges Roofing Machinery

Product Description

Product Description

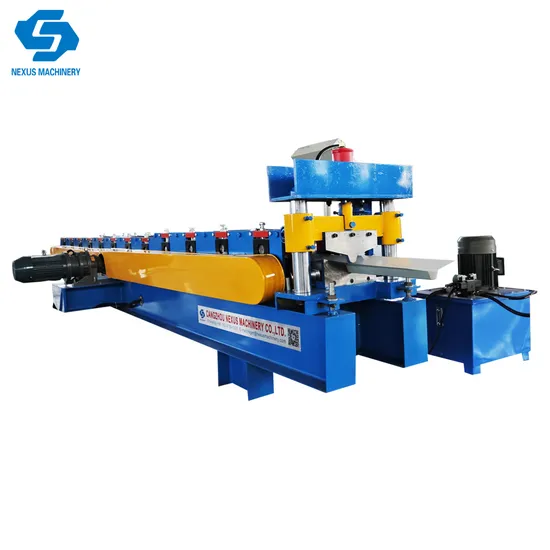

Ridge Cap Roll Forming Machine NEXUS IBR Ridges Roofing Machinery is one most popular type of roll forming machines. It makes a specific shape of steel roof sheet, which is popular in Americ, Bahamas ect countries. For this machine, it suits thickness range is from 0.2mm to 0.8mm metal steel sheet. We adopt 16mm thick wall board to make machine frame strong and beauty. Usually it can run with the speed to 15-20m/min, PLC with touch screen operation make the machine simple and easy for usage.
Detailed Photos
Product Parameters
Manual decoiler:
Usage:It is used to support the steel coil and uncoil it in a turnable way.The steel coil is uncoiled by hand.
Loading capacity:5T
Inner diameter:500-508mm
PLC control system:
PLC brand:Delta or customized
Language:English Spanish Russian Chinese
Control panel:Button or touch screen.
HMI:easy to operate.
Several stainless steel rollers with built-in bearings and two groups nylon wheels can protect the paint surface of the coil
and make coil enter into roll forming machine smoothly.
Hand wheels on both side can adjust the feeding width easily.
The front manual cutter can cut off the irregular part at the beginning of the coil and cut the coil when the order quantity is completed to avoid material waste.
Different feeding inlet for your choice.
1).Adopt advanced Air cooling hydraulic system
2).Motor:4kw Shanghai Lichao
3).Hydraulic oil: 46#
If the machine works more than 8 hours per day, we will equip fan on the tank, in case the oil temperature getting hot when the machine working for hours continuously, ensure the hydraulic oil in a constant temperature to have enough power for cutting device

Configurations	manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station, PLC control system
Material	Raw material	PPGI, GI Sheet
	Coil width	1100mm
	Thickness	0.30mm-0.70mm
Manual Decoiler	Inner Diameter:450-550mm	Expand by manual
	Outer Diameter: max 1500mm
	Max Coil width:1250mm
	Capacity: 5T
Main Machine	Number of Forming steps	13 steps for ridge cap
	Shaft diameter	70mm solid shaft
	Design type	Middle plate welded
	Machine frame	350# H steel welded
	roller material	45# steel, surface hard chromium plating.
	shaft material	45# steel
	Work speed	15-20m/min
	Transport	By chains
	Power of main machine	5.5 kw SHANGHAI LICHAO
	Type of cutting	Hydraulic guide pin cutting
	Cutting tolerance	±1mm
	Cutter	Gcr12MOV
	Cutter quantity	1 set
	Working pressure	20MPA
Hydraulic system	Hydraulic oil	46#
	Hydraulic power	4kw
	Cutting length	As required
	No distorting or wasting. High level safety factor.
Control Device	PLC control	PLC DELTA, TAIWAN
	PLC language	English and Chinese
	Transducer	7.5KW Delta, TAIWAN
	Touch screen	7 Inch large screen, DELTA, TAIWAN
	Function	Automatic length and quantity measurement
	coder	Omron, JAPAN
	Other electrical device	International brand
	Weight	About 2 tons
	Dimension	About 6500*800*1200mm L*W*H
	Main body color	Yellow and blue
	Voltage	380v/50hz/3ph

Packaging & Shipping
Company Profile
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
Our Advantages
1. More than 10 years experiences in manufacturing&exporting roll forming machines.2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.3. High performance in operation, maintenance, and debugging. Easy to load and unload.4. Good machine quality, Competitive price and Fast delivery time and superior service.
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer, we have 3 workshop for different kind of roll forming machine. The first one is for making color steel roll forming machine, second one is for making metal purlin roll forming machine, last one is for raw material processing.
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional. We can send engineer to buyer's factory to teach and install.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians. What's more, we can provide updated spare parts to customer if they have requirement.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001.Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference.
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: Absolutely not. Most machines are customized according to buyer's specific demand.
7) Q: How can I contact you?
A: You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you.
8) Q: How to visit your factory?
A: 1) Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi, then we can pick up you.
