High Speed Paper Cup Machine with Ce
| US$38,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
RD-12/22-100A
Speed
100cup/Min
Required Paper
Single and Double PE Coated Paper
Automation
Automatic
Certification
CE, ISO
Condition
New
Process
Paper Machine
Usage
Household Paper Machine
Type
Paper Cutting Machine
Automatic Grade
Automatic
Computerized
No
Transport Package
Wooden Case
Specification
CE
Trademark
RUIDA
Origin
China
HS Code
84413090
Production Capacity
100 Set/Year
Product Description

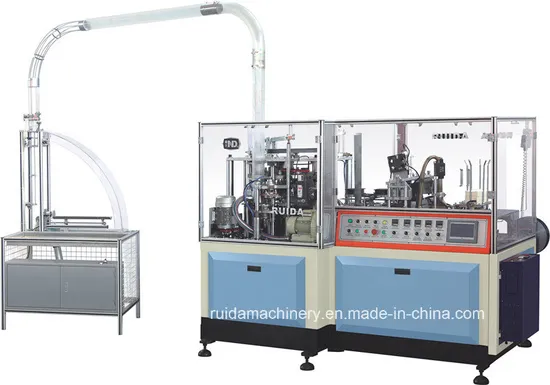

RD-12/22-100A high speed paper cup machine comes with two turnplate, open intermittent indexing cam mechanism and gear transmission, longitudinal axis structures.The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. Cup side sealing is done by Switzerland Leister heater to ensure side sealing stability, bottom sealing by Switzerland Leister hot air device.
Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and better appearance. The machine comes with PLC control system, sensorfailure detecting, and can stop working automatically if the machine has any problem, it can greatly improve operation saftety and reduceing labor cost. The machine can finish the whole process including paper feeding, side sealing, cup bottom punching and feeding, heating, knurling, cup-top curling, cup stacker.
It is the best choice for making paper cups.
Technical data:
| Model | RD-100 |
| Cup size | 6-16oz, 16-22oz |
| Paper material | 180-380gsm |
| Speed | 80-100pcs/min |
| Max. cup dimensions | Top diameter: 92mm Cup height: 170mm Bottom diameter: 65mm |
| Min. cup dimensions | Top diameter: 65mm Cup height: 60mm Bottom diameter:50mm |
| Power supply | 380V or 220V, 50HZ, 3PH |
| Total power | 10KW |
| Compressor air | 0.4m3/min |
| Weight | 3000kgs |
| Overall dimensions | 2300 × 1200× 1800mm |
