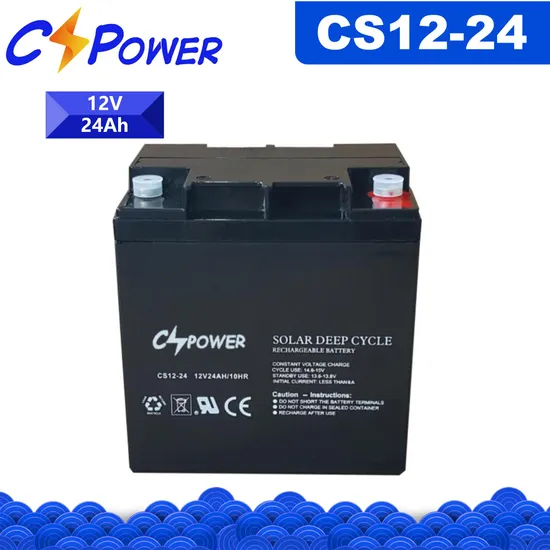

12V24ah Lead Acid Battery UPS Battery with Ce ISO

Product Description

CSPower: Constant Safe Power For You!
CSPower Durable AGM VRLA Battery CS Series
CS 12V Series Sealed Free Maintenance VRLA AGM battery, own 8-10years long life, your best partner for solar market and hot area. CSPower CS series of 12V sealed free maintenance VRLA AGM batteries are recognized as the most reliable and high quality battery system in the industry. They are designed with advanced patented AGM technology, Long service life designed with 10 years, 50% DOD 700 Cycles, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide.
Sealed Free Maintenance VRLA AGM battery 12V100Ah, 150Ah, 200Ah most popular models Advanced Features:
Φ Environmentally friendly Φ Completely Maintenance-Free Φ Non-Spillable construction design.
Φ Wide Operating Temperature Range(-20°C~+50°C) Φ Longer Life(10years designed life) Φ Explosion Proof
Φ Valve Regulated & High Discharge Rate Capability Φ Low Self Discharge Φ Independent of Position
Φ Ease of Shipment Φ No need of balanced charge or boost ΦNo Memory
Chinese Best Quality VRLA SMF Battery Applications:
Φ Communication equipment Φ Telecommunication control equipment Φ Emergency lighting systems Φ Electric power systems Φ Power station
Φ Nuclear power station Φ Solar powered and wind powered systems Φ Load leveling and storage equipment Φ Marine equipment Φ Power generation plants
Φ Alarm systems ΦUninterruptible power supplies and stand-by power for computers Φ Medical equipment Φ Fire and security systems Φ Control equipment
Φ Stand-by electric power. CSPower Durable AGM VRLA Battery CS12-24 Product Parameters -------------------------------------------------------------------------------------------------

CS12-24D
Nominal Voltage			12V (6 cells per unit)
Design Floating Life @ 25ºC			8 Years
Nominal Capacity @ 25ºC		10 hour rate@2.4A,10.8V	24Ah
Capacity @ 25ºC		20 hour rate (1.33A, 10.8V)	26.6Ah
		5 hour rate (4.41A, 10.5V)	22.0Ah
		1 hour rate (16.0A,9.6V)	16.0Ah
Internal Resistance		Full Charged Battery@ 25ºC	≤14.0mΩ
Ambient Temperature		Discharge	-15ºC~45ºC
		Charge	-15ºC~45ºC
		Storage	-15ºC~45ºC
Max.Discharge Current			@ 25ºC 144A(5s)
Capacity affected by Temperature (10 hour )		40ºC	105%
		25ºC	100%
		0ºC	85%
		-15ºC	65%
Self-Discharge@25ºCper Month			3%
Charge (Constant Voltage) @ 25ºC	Standby Use	Initial Charging Current Less than 6A Voltage 13.6-13.8V
	Cycle Use	Initial Charging Current Less than 6A Voltage 14.4-14.9V
Dimension (mm*mm*mm)	Length 165±1 * Width 126±1 * Height 174±1 (Total Height 174±1)
Weight (kg)	7.7±3%

Product Structure

Component	Positive plate	Negative plate	Containe r &Cover	Safety valve	Terminal	Separator	Electrolyte	Pillar seal
Features	Sn low Ca grid with Special paste	Balanced Pb-Ca grid for improved recombinati on efficiencv	Fire resistanc e ABS (UL94-V0octional)	Flame Si-Rubber and aging resistance	Female Copper lnsert	Advanced PVC /AGM separator for high pressure cell desbm	Silicon Gel	Two layers epoxy resin seal

Φ Positive plate : Thick high Sn low Ca 3D flat pasted plate Φ Negative plate : Balanced Pb-Ca grid and AM with Supper-C addtives Φ Separator : Imported Amer-sil PVC separator for Gel battery Φ Electrolyte : nano GEL electrolyte Φ Battery container and cover : ABS for higher temperature Φ Pillar seal : 100% factory tested, proven two layers epoxy resin seal Φ Relief valve : Complete with integrated flame arrestor Assembling
Quality control
Projects
Certifications Φ IEC 60896-21/22 Φ IEC 61427 Φ ISO9001/14001/18001 Φ Eurobat guide, long life Φ BS6290 part 4 Φ GB/T 22473 Φ CE Φ MH63727-UL Applications
Φ Electric Powered Vehicles Φ Wheel Chairs Φ BTS Stations Φ Medical Equipment Φ Solar and Wind Φ Golf Cars and Buggies Φ Power Tools Φ Control System Φ UPS systems Φ Emergency systems Factory CSpower Battery Tech Co.,Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on. Customers
Customers from 168 countriesIn domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Pakistan, Iran, Korea, Thailand, South Africa, Nigeria, Ghana, etc. Packing Free OEM/ODMCSPower is competent at ODM and OEM orders according to customers realtime request. Please come to us for your quality battery and solar partner in China today.
FAQ--------------------------------------------------- Φ Q1. Can your battery be delivered by sea and air?
A: Yes, our batteries can be delivered both by sea and by air. We have MSDS, test report for safe transport as non-dangerous products. Φ Q2. Can I put my logo on the battery?
A: Yes, you can print your logo on our batteries when you order reach 20ft container quantity. If not, price will be negotiated. Φ Q3. Can I fast charge my battery?
A: Fast charging is not recommended as ifs harmful for the battery. Φ Q4. Can I do a partial replacement of my batteries?
A: Partial battery replacement of lead acid battery banks is not recommended. Φ Q5. How about your delivery time usually?
A: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products. Φ Q6. What is your warranty time for VRLA battery ?
A: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements. Φ Q7. Why battery has different capacity at different hour rate?
A: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current. For example, a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A. With the 20-hr rate, the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate. Φ Q8. What is the shelf life of VRLA battery and how to maintain the battery?
A: The limiting factor of battery's shelf life is the rate of self-discharge which itself is temperature dependent. VRLA batteries will self-discharge less than 3% per month at 77° F (25° C). VRLA batteries should not be stored for more than 6 months at 77° F (25° C) without recharged. If in hot temperature, recharge it every 3 month. When batteries are taken out of long storage, it is recommended to recharge before use. Φ Q9. Are you a battery manufacturer, and do you produce the plate by yourself ?
A: Yes, we are a professional battery manufacture in Guangdong Province, China. And we produce plates by ourselves. Φ Q10. What certificate your company have?
A: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor. Φ Q11. How does your factory control the quality?
A: We Adopt ISO 9001 quality system to control the quality. We have Incoming Quality Control (IQC) department to test and confirm raw material meets high quality producing requirements, Production Quality Control (PQC) department contains The first Inspection, In-process quality control, acceptance inspection and full inspection, Outgoing Quality Control (OQC) department confirm no defective batteries come out from the factory. Product specifications and models-------------------------------------------------------------------------------------------------

12V Sealed Free Maintenance AGM Battery Model list
Model	Nominal Voltage (V)	Capacity (Ah)	Dimension (mm)				Net Weight	Gross Weight	Terminal
			Length	Width	Height	Total Height	kgs	kgs
CS12-15	12	15/20HR	152	99	96	102	3.8	4	F2
CS12-18	12	18/20HR	181	77	167	167	5.18	5.38	L1
CS12-20	12	20/20HR	181	77	167	167	6	6.2	L1
CS12-24	12	24/10HR	165	126	174	174	7.7	7.9	M6
CS12-26	12	26/10HR	166	175	126	126	8.3	8.6	M6
CS12-33	12	33/10HR	196	130	155	167	10	10.3	M6
CS12-38	12	38/10HR	198	166	174	174	12.3	12.6	M6
CS12-45	12	45/10HR	198	166	174	174	12.9	13.2	M6
CS12-50	12	50/10HR	229	138	208	212	15.8	16.3	M6
CS12-55	12	55/10HR	229	138	208	212	16.3	16.8	M6
CS12-65	12	65/10HR	350	167	178	178	20.5	21	M6
CS12-70	12	70/10HR	350	167	178	178	21.5	21.7	M6
CS12-75	12	75/10HR	260	169	211	215	22	22.2	M6
CS12-80	12	80/10HR	260	169	211	215	23.5	23.7	M6
CS12-85/90	12	85/90/10HR	331	174	214	219	25	25.3	M6
CS12-100C	12	100/20HR	307	169	211	215	27	27.3	M6
CS12-100B	12	100/20HR	331	174	214	219	28	28.3	M8
CS12-100A	12	100/10HR	331	174	214	219	29	29.3	M8
CS12-120	12	120/10HR	407	174	210	233	33	33.5	M8
CS12-120A	12	120/10HR	407	174	210	233	34	34.5	M8
CS12-150B	12	150/20HR	484	171	241	241	41	41.5	M8
CS12-150A	12	150/10HR	484	171	241	241	43.5	43.7	M8
CS12-160	12	160/10HR	532	206	215	219	48.3	48.6	M8
CS12-180	12	180/10HR	532	206	215	219	53	53.3	M8
CS12-200B	12	200/20HR	522	240	219	224	56	56.3	M8
CS12-200A	12	200/10HR	522	240	219	224	58.2	58.5	M8
CS12-230	12	230/10HR	522	240	219	224	60.5	61	M8
CS12-250	12	250/10HR	520	268	220	225	70	70.5	M8

Solar battery FEATURES AND BENEFITS Φ Long life and supper stability under high temp. environment Φ Electrolyte immobilized as gel state, no leakage and no stratification. Φ Supper deep cycle life at high temperature Φ Use supper-C additives:Deep discharge recovery capability Φ Supper PSOC cycling performance
