CNC Wheel Head Moving Surface Grinder
| US$12,450.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7130B
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size(Wxl)
300X1000(mm)
Max. Machining Dimension(Wxl)
300X1000(mm)
Max. Distance Between Spindle Center Lin
975(mm)
Longitudinal Moving Speed of Worktable
5-25m/Min
T-Slot Number X W
3X18mm
Transport Package
Wood Case or Carton
Specification
CE ISO
Trademark
GNG MACHINE
Origin
China
HS Code
84595900
Production Capacity
500 Sets/Month
Product Description

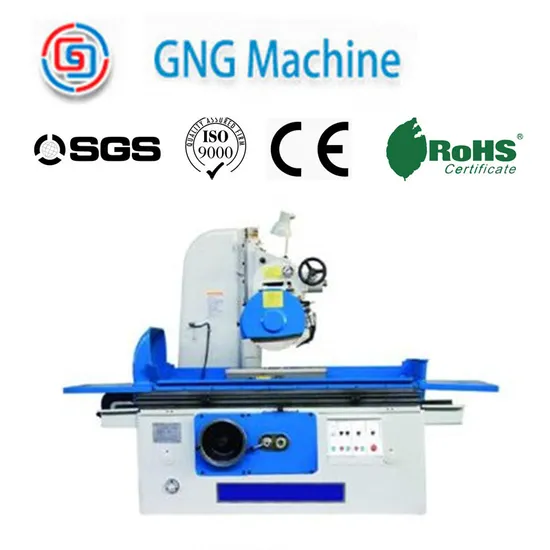

M71 wheel head moving surface grinder
package dimensions(LxWxH):284X171X261(cm)
machine weight:3.7T
| M71 wheel head moving surface grinder | |||
| Item/Model | Unit | M7130B | |
| table size(WxL) | mm | 300x1000 | |
| max. machining dimension(WxL) | mm | 300x1000 | |
| max. distance between spindle center line and worktable surface | mm | 975 | |
| longitudinal moving speed of worktable | m/min | 5-25 | |
| T-slot number x W | mm | 3x18 | |
| wheel head cross moving | continuous feed speed | m/min | 0.5-4.5 |
| intermittent feed speed | mm/t | 3-30 | |
| hand wheel feed | mm/gra | ||
| wheel head vertical moving | rapid speed | mm/min | 400 |
| feed of handwheel | mm/gra | 0.005 | |
| wheel head motor | power | kw | 5.5 |
| rotation speed | rpm | 1440 | |
| total power | kw | 9 | |
| max. loading capacity of worktable with chuck | kg | 470 | |
| chuck size (W x L) | mm | 300x680x1 | |
| wheel size (ODxWxID) | mm | 350x40x127 | |
| machine dimension(LxWxH) | cm | 286x154x251 | |
| package dimensions(LxWxH) | cm | 284x171x261 | |
| machine weight | t | 3.7 | |
