China Automatic Horizontal CNC Lathe Machine (BL-TK36S/EK40)
| US$19,000.00-21,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-TK36S/EK40
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Guideway Width
316mm
Max. Swing Dia. Over Bed
360/400mm
Max. Swing Dia. Over Slide
180/200mm
Center Distance
750/1000mm
Spindle Bore
57mm
Spindle End Type
ISO702/I A2-6
Spindle Speed
140~3000(Stepless)
Spindle Motor
5.5kw
Spindle Chuck Size
8′′
Tool Turret Type
Vertical 4/Horizontal 6 Station
X Axes Travel
200/150mm
Z Axes Travel
610/550/510mm
X/Z Axes Rapid Speed
6/8m/Min
Positioning Accuracy(X/Z)
0.026/0.032mm
Repeat Positioning Accuracy(X/Z)
0.007/0.009mm
Transport Package
Plywood Case/Steel Pallet
Specification
mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
500 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description

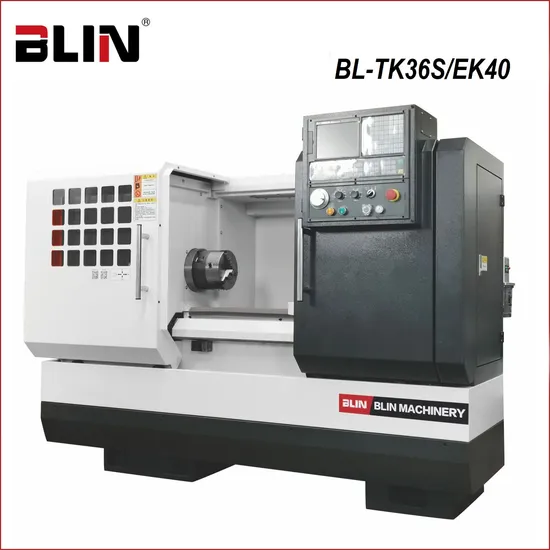

China Automatic Horizontal CNC Lathe Machine (BL-TK36S/EK40)- Adopt China best high strength compound resin sand cast iron
- Aging treatment,has good vibration absorption and rigidity
- Adopt independent spindle,3000rpm high speed, especially suitable for nonferrous metal processing
- Spindle unit adopt precise angle contact ball bearing and double column cylindrical roller bearings
- Guideway hardened by ultrasonic frequency and precise ground, good precision keeping
- Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force
- Adopt independent coolant tank design
| Item | Specification | Unit | BL-TK36S | BL-EK40 |
| Capacity | Guideway width | mm | 316 | |
| Max. swing dia. over bed | mm | Φ360 | Φ400 | |
| Max. swing dia. over slide | mm | Φ180 | Φ200 | |
| Max. turning dia. | mm | Φ320(vertical 4T tool turret); Φ220(horizontal 6T tool turret) | Φ400 | |
| Center distance | mm | 750/690/650 (vertical 4T/horizontal 6 T tool turret/ Φ75mm tailstock quill) | 750/1000 | |
| Max turning length | mm | 600/540/500 (vertical 4T/horizontal 6 T tool turret/ Φ75mm tailstock quill) | 580/830 | |
| Max. workpiece weight | kg | 550(8'' manual chuck) | ||
| Spindle | Spindle bore | mm | Φ57 | |
| Spindle head type | / | ISO702/ I A2-6(manual chuck, 8'' hydraulic chuck); ISO702/ I A2-5(6'' hydraulic chuck) | ||
| Spindle speed | rpm | 140~3000(stepless) | ||
| Spindle motor | kw | 5.5(servo) | ||
| Chuck size | / | 8'' | ||
| X/Z axes | X axes travel | mm | 200/150 (vertical 4T/horizontal 6T tool turret) | 230 |
| Z axes travel | mm | 610/550/510 (vertical 4T/horizontal 6 T tool turret/ Φ75mm tailstock quill) | 590/840 | |
| X/Z axes rapid speed | m/min | 6/8 | ||
| X,Z axes ball screw O.D./pitch | mm | Φ25/5,Φ40/6 | ||
| Tool post | Tool turret type | / | Vertical 4/Horizontal 6 station/gang tool | |
| Tool shank size | mm | 20×20,Φ32 | ||
| Tailstock | Tailstock quill dia./travel | mm | Φ55/120(hydraulic tailstock: 100); Φ75/150(hydraulic tailstock:130) | Φ65/120 |
| Tailstock quill taper | / | MT4#/MT5#(Φ75mm tailstock quill) | MT4# | |
| Accuracy | X/Z axes positioning accuracy | mm | 0.026/0.032 | 0.026/0.032(750mm); 0.036(1000mm) |
| X/Z axes repeatability positioning accuracy | mm | 0.007/0.009 | 0.007/0.009(750mm); 0.011(1000mm) | |
| Turning workpiece roundness | mm | 0.004 | ||
| Others | Total power | KVA | 12 | |
| N.W. | kg | 1700 | 1700(750)/2100(1000) | |
| Overall size(L×W×H) | mm | 2150×1260×1600 | 2150×1260×1600(750mm) 2400×1260×1600(1000mm) | |
Main parts list:
| Item | Brand |
| Spindle bearing | CHINA top-CSC/ZWZ |
| Ball screw bearing | CHINA top-CSC |
| Ball screw | CHINA top |
| Lubrication pump | JAPAN-LUBE |
Standard configuration: - FANUC 0i TF CNC Controller
- Manual chuck
- 4 station tool post
- Manual tailstock
Optional configuration: - SIEMENS 808D/GSK980TDi
- Hydraulic chuck
- 6 station tool turret
- Hydraulic tailstock
Other models choice:
All our machines range:
