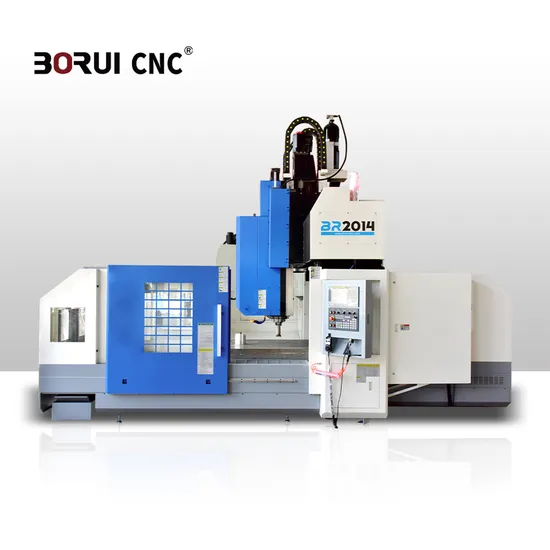

Br2014 Big Bore Gantry Type Milling Machine Automatic CNC Gantry Machining Center

Product Description

BR2014 Big Bore Gantry Type Milling Machine Automatic Cnc Gantry Machining Center Product Description
The gantry machining center refers to the machining center in which the axis of the Z axis of the main shaft is perpendicular to the worktable. Especially suitable for machining large workpieces and workpieces with complex shapes. There are fixed beam type (beam fixed, worktable moving/rotating), moving beam type (beam moving up and down, worktable moving back and forth), moving column type (worktable fixed, gantry moving), crane type (worktable fixed, cross beam) Mobile) There are also multiple types of gantry machining centers in the above composite form. Gantry machining center adheres to the characteristics of traditional gantry machine tools with strong rigidity, symmetrical structure and high stability. Through finite element analysis, the structure of basic components is optimized, the dynamic performance of products is improved, and the perfect combination of high power, high torque, high efficiency and high precision machining is realized. . It is suitable for large and heavy processing fields such as ships, metallurgy, petrochemicals, mining machinery, electric energy, plastic machinery, construction machinery, and heavy industry machinery.
Product Parameters

Specifications	BR-2014	Unit
Control system
Software :AICC2/R660/nano smooth/arc inflection point/mirror processing	FANUC 0I MF PLUS 3pcs
Monitor :Chinese and English display dual screen	10.4″color screen/10″color screen
CF card interface,handheld portable operating system
Working travel
x-axis	2200	mm
y-axis	1300	mm
z-axis	750	mm
Spindle nose to table	150~900	mm
Worktable
Table size	2000X1050	mm
Max. loading capacity	4	T
Size of T-slot	22x180x6	mm
Spindle
Spindle speed	6000	rpm
Spindle taper	BT50
Spindle motor	15/18.5	KW
Spindle torque	236	N.m
Slide way
x-axis 2 guide	45x2 roller P grade	mm
y-axis 2 guide	55x2 roller P grade	mm
z-axis T-shaped ram	Hard way	mm
Driving screw
Ball screw accuracy	C3 grade
Ball screw diameter x.y.z	63/50/50	mm
Three-axis lead	10/12	mm
Motor connection	Direct
Number of bearings at both ends	6/5/5	Pcs
Three-axis motor
x zaxis motor	2000	N.m
y zaxis motor	2000	N.m
z zaxis motor (nitrogen balance)	2000 (Brake )	N.m
Feed rate
x axis rapid feed rate	15000	mm/min
Y axis rapid feed rate	15000	mm/min
Z axis rapid feed rate	12000	mm/min
Three-axis cutting feed rate	0-10000	mm/min
Tool (Optional)
Max. tool length	300	mm
Max. tool dia	Ø200	mm
Max. tool weight	15	kg
Tool specification	BT50
Tool change time	4	second
Factory precision
Positioning	0.010/1000	mm
Repeat positioning	0.006/1000	mm
Least input increment	0.001	mm
Other
Power Capacity	45	KVA
Net weight	15	t
Packing dimensions(L x W x H)	6000x3000x3500	mm

Detailed Photos

Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
