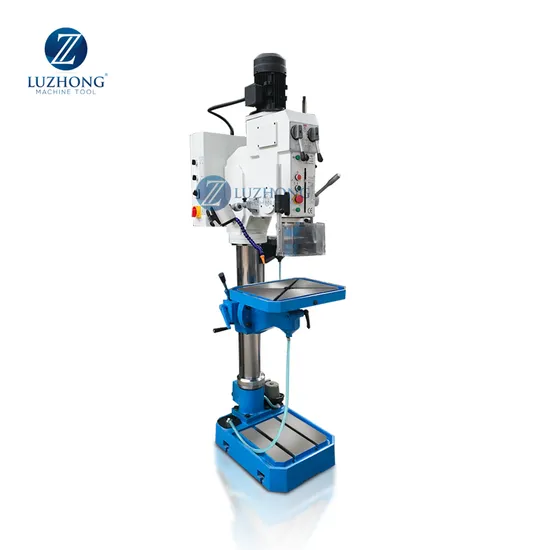

Z5032 high precision metal conventional vertical drilling machine
Basic Info.
Model NO.
Z5032
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
configuration
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
name
Z5032 high precision metal conventional vertical d
Max. drilling dia.
32mm
Spindle travel
130mm
Distance between spindle nose and table
725mm
Distance between spindle nose and stand
1125mm
Distance from spindle axis to column
283mm
Table size
380*300mm
Transport Package
Plywood Case with Steel Base
Specification
1000*750*1850mm
Trademark
luzhong
Origin
China
Packaging & Delivery
Package Size
1020.00cm * 770.00cm * 1880.00cm
Package Gross Weight
490.000kg
Product Description
Z5032 high precision metal conventional vertical drilling machineProduct Description
Product Parameters
| Specifications | Z5032 |
| Max.drilling dia. | 32mm |
| Spindle taper | M.T.3 or R8 |
| Spindle travel | 130mm |
| spindle speed steps | 6 |
| spindle speed range 50Hz | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m |
| Min.distance from spindle axis to column | 283mm |
| Max.distance from spindle nose to worktable | 725mm |
| Max.distance from spindle nose to stand table | 1125mm |
| Max.travel of headstock | 250mm |
| Swivel angle of headstock (horizontal/perpendicular) | 360°/±90° |
| Max.travel of worktable bracket | 600mm |
| Worktable size of avaliablity | 380×300mm |
| Swivel angle of table horizontally | 360° |
| Table leaned | ±45° |
| Size of stand worktable of avaliability | 417×416mm |
| Motor Power | 0.75KW(1HP) |
| speed of motor | 1400 r.p.m |
| Net weight/Gross weight | 430kg/480kg |
| Packing size | 1850×750×1000 mm |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
