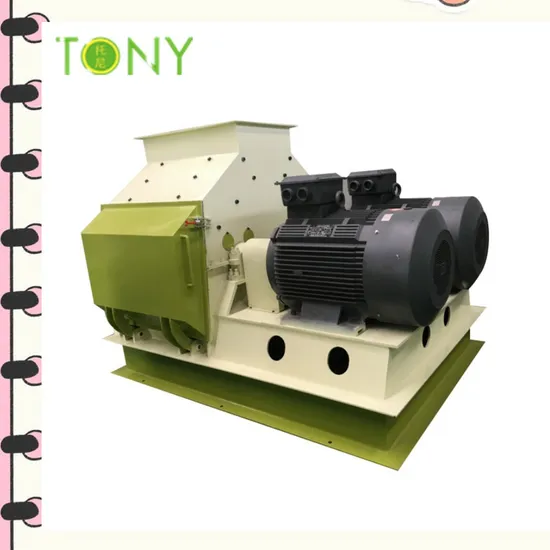

2-3tph High Efficiency Wood Chip Shaving Hammer Mill

Product Description

2-3tph High Efficiency Wood Chip Shaving Hammer Mill
Company Profile
Shandong Tony Environmental Protection Technology Co., Ltd is an intergrated enterprise spechializing in developing,anufac-turning and intenational trade of pellet equipment for over 20 years.Main products are biomass ring die and flat die pellet machine,biomass pellet line,feed pellet machine,drying,crushing equipment,cooling screening,mixing and environmental protection equipments. TONY main processing areas are logs or furnature waste,agricultural crop stalks,animal feces and so on. Looking to the future, we sincerely hope to establish a long-term reliable cooperation relationship with clients all over the world.
Product Description
1.Brief Introduction of hammer mill
TFD series high-efficiency hammer mill is a pulverizer specially used for raw materials crushing in the biomass fuel production process. It has two series of single spindle and dual spindle, with features of high output and efficiency. It can crush wood chips, shavings, crop and plant crude fibers, roughage, etc.
2.Technical Datas of Hammer Mill

Type	Model	Power(KW)	Capacity(T/H)	Hammer QTY(PC)	Size:L*W*H(MM)	Weight(T)
Single Shaft Hammer mill	TFD65*55	37-55	1-2	48	2000*1600*1700	2.5
	TFD65*75	55-75	2-3	72	2000*1800*1700	3.2
	TFD75*100	90-110	3-5	96	2000*1800*1900	4.5
	TFD75*130	132	4-5.5	120	3000*1950*2200	5.9
	TFD75*130	160	5-6.5	120	3000*1970*2200	6.7

3.Advantages of high-efficiency hammer mill
1). The shell adopts welded-steel plate construction, the main machine is embedded for seal, completely avoids dust spillover and maintains a clean work environment.
2). The motor and crusher are direct-connected driving with drum coupling and built-in rotors. Dead-zone free crushing and better uniform granularity.
3).The magnetic selector on the upper part can sort out the magnetic metal materials and reduce the machine's damage rate.
4).Forged hammers has symmetric homogeneous permutation, small vibration without blind angle, large crushing friction area. Wear-resisting material behind sieving slice has big wrapping angle. Hammer are independent designed with fasteners for easy assembly. The blades are enhanced for better wear-resistance and longer working life.
5).After balance calibration, rotors can work reversely.
6).The operating door has safety interlock equipment to make sure it can not be opened when the machine is running.
7).The blower's efficiency is maximized with faster pneumatic conveying and minimum wind resistance. Arc side door ensures easy observation and replacement of the sieve, without disturbing wind and flying dust.
4.Application Of High effective hammer mill:High effective hammer mill is the most ideal grinding equipment for all kinds of wood chips, wood shavings, grass, straw, stalk, rice husk, palm fiber and so on. When crush plastic, PVC, rubber etc. It adopts water cooling structure inside, avoiding the damage to spare parts due to long time working friction. Except biomass, it also can crush animal feed materials such as soybean, maize, cereal and fertlizer materials from animal manure, chemical etc. Which is mainly used in wood factory, feed factory, organic.
5.Spare Parts of Hammer Mill:
The sawdust making machine key spare parts such as hammers and screener are made by our CNC systems, through high technical heat treatment, standing out from other suppliers is that we could ensure the parts high precision and good quality.
6.Whole Set Hammer Mill

Components of Grinding Process
Item	Function
Mulitfuntional Hammer mill	To crush the materials into 3-5mm sawdust
Blower	To help transport the sawdust into dryer
Cyclone	To discharge the materials and collect the dust
Air-lock	To prvent the outside air from entering inside
Bag Dust Collector	To collect the dust while in the production

7.Raw Materials to Finished Products:
8.Customer Case
9.We can also supply for the pellet machines as following:
1. The SKJ Series flat die pellet mill with the volume 100kg to 4 ton per hour.
2.TheTY Series ring die pellet mill with the volume 800kg to 5 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with volume 100kg to 400kg/h.
4.The SKJT Series Pellet Mill with Tractor Engine with volume 80kg to 400kg/h.
5.Hammer Mill
6.Wood crusher
7.Wood chipper shredder machine
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from the volume 0.5 ton to 60 T/h.
10.Company Introduction
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
11.The advantages of buying equipments in our company are:
1. a full range of design, construction, equipment supply, construction, installation supervision and commissioning, staff training;
2. license for the design, construction, installation, wiring, and other works;
3. full certification of equipment;
4. officially registered trade mark;
5. full warranty, post warranty and service;
6. warranty on all equipment - 13 months;
7. ratio price-quality-assurance;
8. vast project experience. we have established and put into operation so many of pellet plant productivity on the finished product from 0.5 to 20 t / h in Malaysia, Thailand, Vietnam, Germany, France, Bulgaria, Serbia, Romania, Korea, Australia etc;
9. large stock of finished equipment and spare parts;
10. all equipment of our production, equipped with electric motors and gearboxes, that made in big company
12.TONY Exhibition:
13.Best Service
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
14.CE CERTIFICATE:
15.FAQ: 1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China.
You can fly to Jinan airport and then we will pick you up(40 minutes by car) .
All our clients are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality
controlling from the very beginning to the very end. Our factory has
gained CE authentication.
