Factory Sale Aluminum Ropp Screw Bottle Cap Capping Machines Production Line Making Machine for Glass Bottle Screw Cap Bottle Making

Product Description

Production line composition
Factory Sale Aluminum Ropp Screw Bottle Cap Capping Machines Production Line Making Machine for Glass Bottle Screw Cap Bottle Making

Deep Throat Punching Machine	Deep throat punching machine, able to work with big area sheet. 2.CNC control panel, easy to operate, save time and high feeding precision, improve the yield rate.
Screw Machine	Automatic separation of waste and cap
Sheet Feeding Machine	Microcomputer control, two coordinate linkage, fast programming and accurate delivery of sheet material, reduce waste
Curling Machine	To avoid hurting hands, roll the edge of the bottle cap
Knurling Machine	Automatic roll pattern on bottle cap
Pad Adding Machine	To improve the sealing of the cap, add a gasket at the top
Stamping mold	The mold consists of a mold base, a mold core, an air path and a blowing device The upper and lower die base steel plates are made of No. 45 steel. The upper die is cut with SKD11 and the lower die is cut with P20 die steel. The concave and convex die is made of 45# steel.

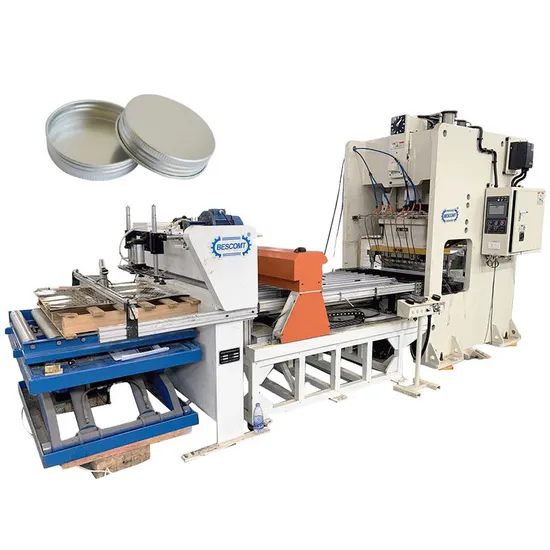

BESCO full automatic aluminum screw cap making machine
Besco high precision full automatic aluminum cap production line, The mechanical structure of the machine adopts 50*50 aluminumsquare pass and channel steel welding to ensure the weight of the machine body and enhance its stability. The drive screw andguide rail are made of the Taiwan silver brand to ensure the running speed and accuracy.Speed:400-600pcs/minute
Product Description

Parameter for the cap production line
Item	Parameter
Processing plate size (adjustable)	800*900mm
Loading table load	2 tons
Feed accuracy	±0.08mm
Feeding speed (adjustable-cooperate with punch)	48m/min
Refueling time	1-2 seconds
Dimensions	3460*2210*1765mm
Total weight	2000kg

How To Make Aluminum Screw Cap?

1.Cut and stretch

2.Cut cap side

3.Knurling&ribbing cap

4.Get a cap

Introduced Machine
1.Automatic CNC Punch Press
1. 35TON deep throat punching machine, able to work with big area sheet.
2.CNC control panel, easy to operate, save time and high feeding precision, improve the yield rate.
3. Equiped with air clutch, speed adjustable, six side guider, high precision, auto lubrication, auto sheet metal feeder.
4.The overall beam structure, carriage and beam integrated design, enhanced rigidity, accurate positioning, high-speed feeding situation is more stable, to prevent the table X, Y axis dynamic bias.2.Screen rings machine
This machine is used to automatically insert liner for caps/lids so as to seal which is used in production line equipped with hoisting
machine(hoister). 2.production capacity:100-150pcs/mins
3.Automatic Curling Machine
1.Include automatic feeding parts and puching machine, complate 2.The frame of J23 series mechanical power press is made of steel construction and their heavy cross section and rigid design assure minimum deflection and accurate alignment cast iron legs will be supplied up to 30 ton press.4.Automatic Machine Richard
5.Automatic Knurling
6.Pad Adding Machine

Company Introduction
Why choose us?BESCO started Production of CNC equipment began in 1997,and matched production linefrom 2002. And all the times our company put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include:Foxconn, NK car, China Aluminum Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy thecustomers" as our target, hope to create the best future with old and new customers.
We provide 24 hours on-line service Can contact us by MSN, Skype, Email and Telephone at any timeOur factory also will make DVD to show the operation steps for the
customer.
We can send the component by DHL, TNT freelyOur guarantee time is one year, if any component is damaged during guarantee time
Our factory can send our engineer to the customer's factory install, commission and training freelyThe customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to
our factory to learn the operation and maintains freely.Transport And Pack

We are currently reviewing our product packaging from the angles of waste-reduction and resource-saving. We are also working on improving transportation efficiency from the design phase of product development.1. .Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.2.All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.3.The outmost is wooden case with fixed formwork.4.The bottom of the wooden case has firm iron jack, convenient to handing and transport.
FAQ
1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis /Conformance; Insurance; Origin, and other export documents where required.
2.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
3.Do you guarantee safe and secure delivery of products?
We always use high quality export packaging. We also use specialized hazard packing for dangerous goods. Specialist packaging and non-standard packing requirements may incur an additional charge.
4.Guaranty covers?
Main parts of the machine , wearing parts not included .PARTS DELIVERY.Within 5 days by DHL / Fexed .
