St-72yt Smartlathe Servo Turret Electric Turret Metal Lathe

Product Description

ST-72YT Smartlathe Servo Turret electric turret metal lathe
ST Series is an integrated multiplex turning center that combines the processing capabilities of a turning center with those of a machining center via Y and C axis control. The versatile 12-station power turret allows it to completely manufacture parts with complex shapes in a single setup operation.
Specification

CAPACITY
Swing Over Cross Bed	Φ350mm
Swing Over Carriage	Φ350mm
Max. Length of Workpiece	500mm
Turning Diameter	Bar Materials up to φ71mm Single Workpiece up to φ350mm
Bed Type	30° Slant Bed

SPINDLE
Spindle Nose Taper	A2-8
Speed	3000 RPM
Spindle Motor Power	11 kW Servo motor
Collet Type	3-Jaw Hydraulic Chuck With Soft Jaws(10")
Spindle bore	Φ85mm

TRAVELS
Z-Axis	550mm
X-Axis	200mm
Y-Axis	±45mm
Guideway Type	35mm TAIWAN ball screw rod 35mm TAIWAN linear guideway
Z/X Axis	Up to 25m/min
Machining Accuracy	±0.0025mm
Surface roughness	≤Ra 1.6μm

TOOLS
Power Turret	MT55 12 stations
Tool holder	Inner Hole Tool Holders (4 Sets) Outer Circular Tool Holders (4 Sets) Facing Tool Holder (1 Set) Side Milling Tool Holders (2 Sets) Face Milling Tool Holders (2 Sets)

Tailstock
Tailstock Type	MT5
Tailstock Travel	500mm

CNC CONTROL
Controller	SYNTEC

POWER SUPPLY
Total Power	20KW
Voltage	380VAC 50Hz

DIMENSIONS
Dimensions (L/W/H)	3030mm*1860mm*2030 mm
Weight	4700 kg

Standard Configuration

Fully enclosed splash guard with top roof	11KW spindle servo motor	Telescopic guards for X/Z axes
Spindle speed 3000 rpm, A2-8	Automatic lubrication system	Coolant system
Lubrication system	Hydraulic system	Coolant tank
Oil separator	LED working lamp	Electronic handwheel (MPG)
Coolant gun	Toolbox and user manuals	Power Turret
Collet	C axis	CNC Simulation

Optional Accessories

Bar feeder

Chain Chip Conveyor

Part Catcher

Oil Mist Collector

Side Milling Tool Holder

Face Milling Tool Holder

Automated tool binding

Applications

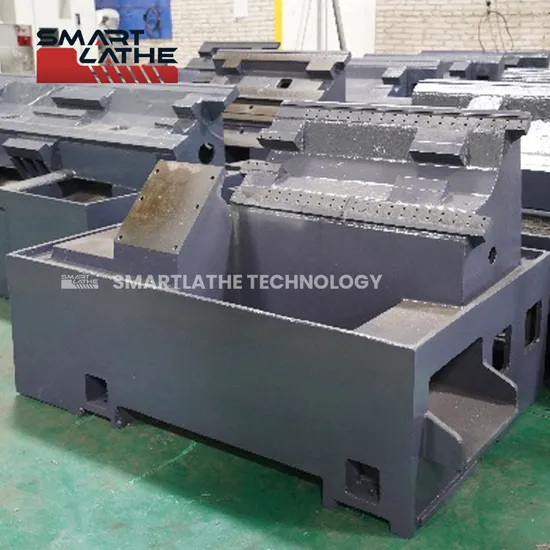

Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to φ71 mm or single workpieces up to φ300mm. High Rigidity casting iron body provides the possibility of higher hardness materials and better smoothness (smaller roughness).
ST-72YT is equipped with a CNC program-controlled hydraulic tailstock, a 12-station power turret, a power milling head that can be installed at the upper or bottom position of the Y-axis (turret), high rigidity cutting, suitable for long-axis turning, milling, Processing of complex multi-process products such as drilling and tapping.
Features
Company Profile
FAQ
1:How can I choose machines?
A: for the model selection, please send us the drawing of the turning part and our engineer will evaluate it and provide the suitable configuration of the CNC lathe fit for your needs.
2: What's the main products of your company?
A: SmartLathe concentrated all its resources to develop successfully the SL series of the CNC slant bed lathes including the SL-07, SL-25, SL-36, SL-46, and the CNC Turning-Milling machines to help our customers in the field of prototyping, entry-level business, and the craftsman with a bootstrap budget.
3: Where is our factory located? How can I visit there?
A: Our factory is located in Foshan City, Guangdong Province, 528300 China. You are warmly welcome to visit our factory.
4: What are the Trade & Payment Terms?
A: FOB, CFR, and CIF are all acceptable. T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC at sight.
5: What's the MOQ?
A: 1 set. We will offer you're a better price if you order more.
6. What is the delivery time?
A: The full series of standard models are in stock. For a customized one, it depends.
7. Do you have any certificates?
A: Yes, our machine is CE-compliant, and our factory is ISO 9001 accredited.
8. What is the warranty period?
A: The warranty period is generally 13 months after B/L date.
9. Machine installation
A: SmartLathe could assign the technician to the place for the on-site installation if requested by the purchaser.
10. Technical Support
A: The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
11. Demo and Testing
A: SmartLathe built a training center for the clients and employees to study the operation of the machine. You are welcome to visit our factory anytime for the machines' demo. Furthermore, we could demo per your drawing of turning parts.
