NANYANG MJ329/3DE(L)F Saw Machine Bandsaw Sawmill Log Carriage China Supplier 1300mm Max Sawing Diameter Vertical Industrial Band Saw Machine Automatic Carriage

Product Description

NANYANG MJ329/3DE(L)F Saw Machine Bandsaw Sawmill Log Carriage China Supplier 1300mm Max Sawing Diameter Vertical Industrial Band Saw Machine Automatic Carriage
Product Description

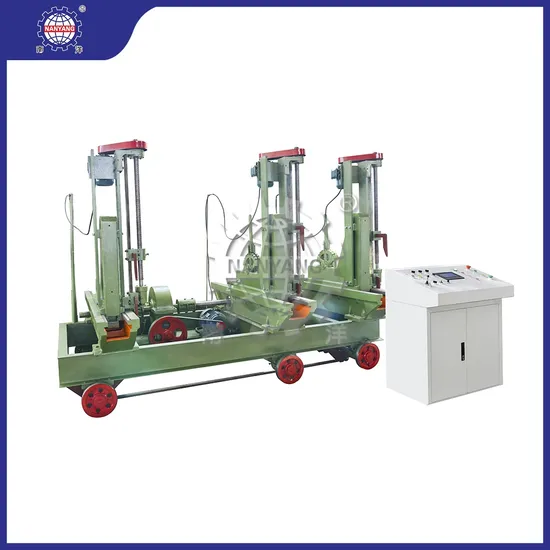

Automatic Carriage For Band Saw
The Band Saw Automatic Carriage is one of the main equipment of wood processing machinery. It uses a band saw blade to cut wood in a straight line. Its main structural components are: machine base, fuselage, upper and lower saw wheels, saw card, and saw blade tensioner.
This product has a reasonable structure, reliable performance, smooth operation, and simple operation. It is especially suitable for collective operations and individual processing. It is an ideal woodworking machine for the wood processing industry and wood product manufacturing industry.
Product Parameters
Technical Parameters

Item	MJ329/3DE-G(L)F (With automatic rolling device))	MJ329/3DE-G(L)	MJ329/3DE3-G(L)
Max. sawing diameter	1300mm	1300mm	1300mm
Max. sawing length	6000mm	6000mm	4000mm
Max.Forward speed	66m/min	66m/min	66m/min
Max.Backward speed	92m/min	92m/min	92m/min
Footage speed	23mm/s	23mm/s	23mm/s
Effective stroke of timber-blocking pile	1100mm	1100mm	1100mm
Quantity of timber blocking pile	4	4	3
Traction mode	Wire rope (or Chain)Transmission	Wire rope (or Chain)Transmission	Wire rope (or Chain)Transmission
Power of hydraulic system in rolling	5.5kW
Working pressure of the hydraulic system in feeding	7Mpa
Hydraulic oil label of hydraulic sister	46#
Track length	18000mm	18000mm	12000mm
Total motor power	24.2kW(20.7kW)	17.6kW(14.1kW)	16.5kW(13kW)
Dimensions	5100x2200x1900mm	4800x1600x1900mm	L:4000×1600×1900mm G:3200×1600×1900mm
Weight	6500kgs	5500kgs	4500kgs

It consists of shafts, wheels, and supports. It needs to run on two parallel rails during movement and is equipped with a ruler for measuring when processing wood. Some are equipped with lasers for more accurate measurements.
When woodworking is processing wood, manpower can be used to carry the wood, but when the wood is relatively heavy, it can be used instead of manpower, which has a strong load-bearing capacity.
Product Function
1. Automatic forward and backward; Electric hook
2. PLC control system; Touch screen display
3. Frequency control
4. Automatic concede
5. optional:Automatic rotating device, Automatic feeding device, Automatic conveyor line
Automation Control Panel
Easy to operate
The console is usually well-designed with a clear layout of operating buttons and control panels, allowing the operator to easily master the use of the equipment.
Easy to adjust
The adjustment buttons and levers on the console are relatively simple and intuitive to operate, and can easily adjust the cutting angle, cutting depth, and other parameters.
Good view
The design of the console allows the operator to observe the cutting process more clearly, which is beneficial for improving work accuracy and safety.
Efficient and high-speed
It can quickly complete wood-cutting operations and improve production efficiency.
High cutting accuracy
The equipment has high cutting accuracy and can ensure the flatness and accuracy of wood cutting.
Safe and reliable
The equipment has safety protection measures, such as overload protection, automatic shutdown when power is off, etc. to ensure the safety of operators.
Compact structure
The equipment occupies a small area and is suitable for wood processing operations in limited spaces.
Easy to operate
The equipment is equipped with an automated control system and is easy to operate. The operator only needs to set parameters to complete the cutting operation.
Energy saving and environmental protection
Compared with traditional circular saws, it is more energy-saving, reduces energy consumption, and meets environmental protection requirements.
