Full Automatic Blanking Machine Medicine Box Tobacco Box Stripping Machine After Die Cutter Box Offline Blanking Stripping Machine for Folding Box

Product Description

KYD-1080 MINI Semi Automatic Stripping & Blanking Machine

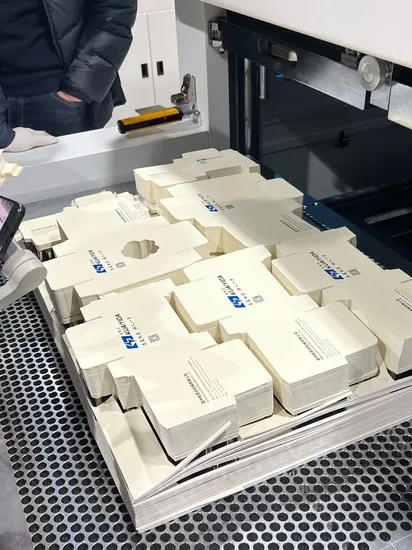

Samples
Processing:
Instruction
This automatic machine has a powerful waste removal function completely, which can achieve one pass fully remove all waste after die cutting for different specifications of box types, windows, and aircraft holes, and material waste edges of front and back stitching as long as they are within the size requirements of machine.
This machine have the high quality for removing the waste completely in one pass, with fast efficiency, simple operation, increasing user's production capacity.
Machine Advantage
1. pass to stripping & blanking waste area completely, High efficiency with Simple adjustment,Easy operation. Improve the user's production capacity greatly.
2.Not need the mould for different product size, with the honeycomb plate frame and pins to adapt to the changeable box shape. The down pins support box area, the upper pins pressed on the waste area to remove the waste.
3.Save Labor and Save tool cost and mould cost.
4.Machine can one time full remove the waste for front and back imposition of materials.
Technical Parameters:

Model	KYD-1080
Max Material Stack Size	1080*780MM
Max. Product Size	1060*760MM
Mini. Product Size	35*35MM
Max Material Stack Height	80MM
Max Pressure	100 Bar
Speed	1-5 Times/min
Total Power	4KW
Average Power	2.8KW
Air Consumption	65L/min
Air Press	0.5-0.6Mpa
Voltage	380V/3 phase/50HZ/
Machine size	2100X1760X1700mm
Weight	2580KGS

Certifications
Packaging & Shipping
Company ProfileWENZHOU KUAIYIDA MACHINERY CO.,LTD
established in 2023, we focus on the development and innovation of blanking &stripping machine, provide efficiency products and reasonable stripping solution to every user. Company structure is scientific and reasonable with humanized management mechanism. Mature customer service system, technical engineers at any time provide after-sale consultation and arrangement installation and trouble shooting service for foreign customers
Our Workshop
Exhibition Photos
After Sales Service
Warranty period of the productThe product warranty period is generally one year, and our company provides lifetime maintenance services. If the machine has quality problems, our company will help the customer to solve it through the following ways:
a. Send spare parts to the customer.
b. Remotely assist customers in maintenance.
c. Notify our agent company to send personnel to the customer's factory for maintenance.
d. Our company directly dispatches relevant personnel to the customer's factory for maintenance.About transportation damageIn the process of product transportation, if product damage occurs, it is determined that our product packaging and reinforcement work is not in place, and our company will bear the corresponding losses.About machine maintenanceWe will contact customers on a regular basis on how to maintain and maintain the machine. For domestic customers, we will have a master to provide on-site service.Problems during useIf there is any problem in the process of using the product, the customer can directly call or send an email to our after-sales department (24-hour hotline). The personnel of our department will respond immediately and make a decision on the response measures within 24 hours
