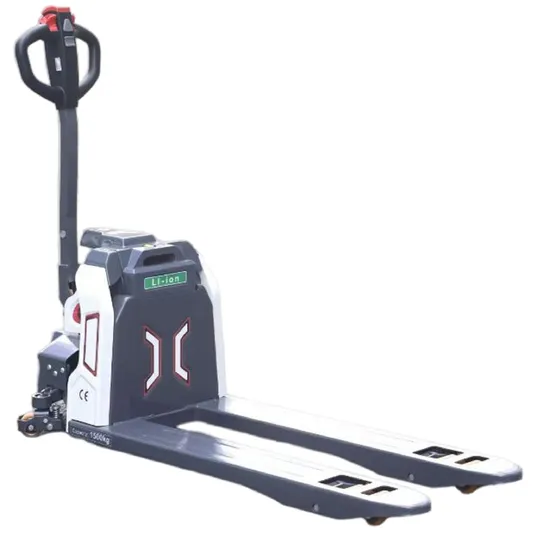

China Factory Price Strong Load Bearing Automatic Hand Electric Powered Power Pallet Truck Jack in The Workshop

Product Description

Product Application Technology Characteristics 1,EPT15V/20V full electric pallet truck is perfect for light-duty applications with compact &skeleton design;
2,fast-charging li-on battery with the integrated charger what makes this electric pallet truck so versatile;
3,fast battery replacement,high maneuverability;
4,from the warehouse to the factory to the supermarket,EPT15V/20V can handle all;
EPT15V/20V provides customers with a new solutionthat can replace traditional products,it reduce the physical damage to the operators caused by the long term drag or lifting and lowering operation,the light weight of the truck without sacrificing the strength of frame ,is very suitable for the spaces where the truck's weight is required
Technology Parameter

Model	Unit	EPT-15V	EPT-20V
power unit		electric	electric
operation		pedestrian	pedestrian
loading capacity	kg	1500	2000
load centre	mm	600	600
wheel base	mm	1270	1270
service weight with battery	kg	142	145
wheels type		PU	PU
driving wheel size,number	mm	φ210*70/1	φ210*70/1
loading roller size,number	mm	φ80*70/4	φ80*70/4
lifting height	mm	110	110
height of tiler in druving position min/max	mm	585/1200	585/1200
owered height	mm	85	85
overall length	mm	1620	1620
overall width	mm	550/685	550/685
single fork dimenions	mm	50*160*1150	50*160*1150
ground clearance	mm	35	35
channel width(1000mm*1200mm tray)	mm	1820	1820
channel width (800mm*1200mm tray)	mm	1870	1870
min.turning radius	mm	1380	1380
travel speed Laden /unladen	km/h	4.2/4.5	4.2/4.5
lifting speed Laden /unladen	mm/s	22/17	22/17
lowering speed Laden /unladen	mm/s	26/30	26/30
maximum climbing ability ,with/without load	%	6%-10%	6%-10%
service brake		electromagnetic	electromagnetic
drive motor	kw	0.75	0.9
lifting motor	kw	0.5	0.5
battery voltage /rated capacity	VAh	24V/20AH(30AH ,40AH can optional)	48V/15AH(20AHcan optional)
battery weight (5%)	kg	5.5	5.5
charging time	h	2.5	2.5
working time after full charge	h	>3	>3

Our products FAQ Q1: How long is the warranty of your products?
A:Equipment max provide 12 months or 2000 working hours warranty as standard ,whichever comes first.
Q2:What payment terms do you accept?
A:Our standard payment term is 30% in advance and 70% in balance by TT before delivery
or original B/L copy.
Q3:How long can I get my order finished?
A:15-20 days for classic forklift ,pallet truck,stacker and attached, 5-10 days for spare parts.
Q4:Can you customize the configuration/logo/lable/color according to our requirements?
A:Yes.
Q5:Do you accept small order?
A:Yes,the MOQ is 1 unit for most of the products,for very small handing equipment,we can check case
