Glue Pot Pressure Wheel Fully Automatic Linear Edge Banding Machine

Product Description

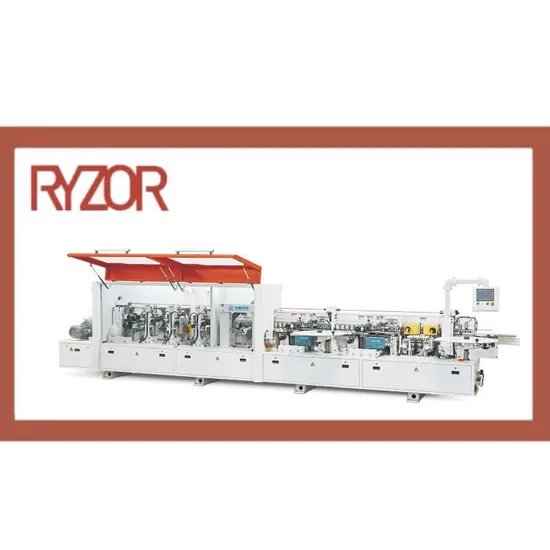

PE-681G high-speed fully automatic straight edge banding machine

Main Operational Functions: 1. Tape Feeding and Gluing with Upper Glue Pot: Includes upper glue pot and quick melt glue for applying glue and attaching edge banding. 2. Dual Rail End Trimming: Ensures precise end trimming. 3. Manual Rough Trimming: Initial edge trimming. 4. Manual Fine Trimming: Secondary edge trimming. 5. Profiling Tracking: Ensures accurate edge profiling. 6. Manual Scraping: Initial edge scraping. 7. Polishing: Provides a smooth and high-quality finish.

Technical parameters/model PE681G
Dimensions (mm)	7113*950*1550	plate thickness	10-60mm
power	20KW	Sheet length	150mm
Processing speed	15-23m/min	Sheet width	80mm
Edge banding thickness	0.4-3mm	Minimum board size (mm)	300(L)*80(W),150(L)*150(w)
Edge banding width	12-65mm

Pre milling mechanism:
1. Two 2.2KW high-speed high-frequency motors;
2. Using a linear slide rail as a guiding ruler, precise and reliable;
3. Tool specification: 100x30xH43;
4. Metal knife cover for efficient vacuuming
Adhesive feeding mechanism:
1. A 2KW glue box with fast heating and uniform glue application. The glue box has an automatic constant temperature function and can be activated in sections;
2. Wheel type edge banding with belt pressing mechanism, the belt pressing wheel has a one-way stop function to prevent the edge banding from backing back during high-speed edge banding;
3. A 1.6KW rapid sol mechanism with a high-temperature liquid level detector, used in conjunction with a glue box;
4. Equipped with an automatic feeding device for rubber particles
Guangdong Rongyao Future Technology Co., Ltd, as the parent company of the independent brand RYZOR, focuses on the automation and CNC of panel furniture machinery and equipment, developing innovative solutions. The company continuously absorbs advanced foreign technologies and reforms and innovates. With years of professional knowledge and an R&D design and manufacturing team, Rongyao ensures the control of product details, guaranteeing the production of advanced, stable, and high-quality machinery to meet the ever-changing market demands. The company′s main products include a full series of edge banding machines such as pressure wheel edge banding machines, track high-speed edge banding machines, intelligent flexible edge banding machines, PUR, HOT AIR, LASER; Computer panel saws, CNC drills, CNC cutting machines, and automated production line equipment. Our products serve over 30 provinces and cities nationwide and are exported to more than 20 countries abroad, earning widespread customer support and trust.

Our machines have been sold to more than 20 countries around the world, such as Russia, South Korea, Spain, the United States, Malaysia, Italy, Africa, Brazil, Australia, the United Kingdom, Germany, Thailand, Canada, Portugal, Türkiye, Ukraine, Iran, Vietnam, Dubai, Egypt, etc., and have received unanimous praise and support from customers.

Q1: Are you a manufacturer?
A1: Yes. We have 16 years of production and export experience.
Q2: Regarding MOQ
A2:1 set, we are OEM, and I will give you a more competitive price than the market.
Q3: Can you customize this machine?
A3: Of course, our machines can be customized according to the buyer's requirements.
Q4: How do I place an order?
A4: Please tell me your question and I will do my best to help you.
Q5: If I want cheaper quality, can you produce it?
A5: Yes, just send us your detailed quality information, such as materials, which parts are cheaper, etc. We will calculate and determine the price based on your requirements.
Q6: If the quantity is large, what is the good price?
A6: Please send us detailed inquiry information, such as product number, quantity of each product, quality requirements, logo, payment terms, transportation method, unloading location, etc. We will provide you with an accurate quotation as soon as possible.
