Basic Info.
Output Type
AC Single Phase
Continuous Working Time
11h
Transport Package
Five Layer Corrugated Cardboard Box+Air Column Bag
Specification
590*430*430mm
Production Capacity
200000PCS/Year
Packaging & Delivery
Package Size
74.50cm * 54.00cm * 56.00cm
Package Gross Weight
89.500kg
Product Description
Advantage

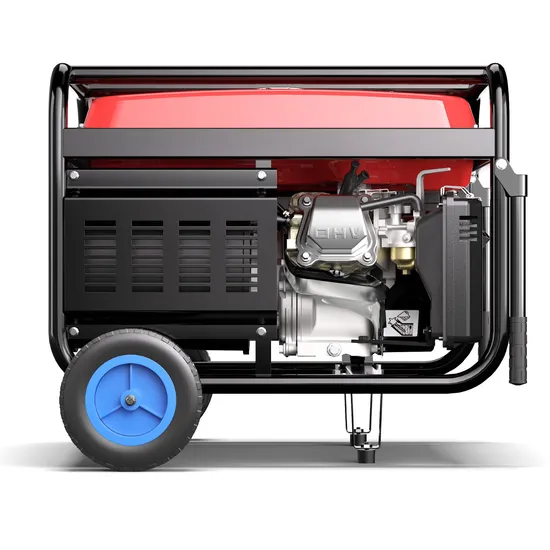

Clean Power for Home & Sensitive Devices-The Erayak EYG6500GE gasoline power generator has a 420cc 4-stroke OHV gasoline engine and delivers 5000/5500 watts of power for homes, RVs, trucks and more. With two covered 230V 16A sockets. Clean power for devices such as cell phones, tablets, coffee machines, LEDs, refrigerators, microwaves, laptops, air conditioners and more.
Ultralight-Weighing only 76kgs, this compact gasoline generator is reliable power source. With built-in handle and compact design, it is easy to push by women and elderly people.
Quiet as a dream-75 dBA from 7 meters at quarter load, ideal for outdoor events or securing some important household appliances.
Fuel Saving-With a full 25 liter gasoline tank, this gasoline generator runs up to 11 hours at 100% load.
Reliable emergency power supply-Erayak technology includes reliable and durable components for pure sine wave. Multiple startup methods: hand recoil & E-start & remote.
Erayak Support-Includes a 1-year limited warranty with FREE lifetime technical support from dedicated experts. Includes an Erayak generator as well as free parts (user manual,wheel,handle,DC wire,repair tools (optional:one EU plug )).
Product Description Specifications
Frequency (Hz) | 50 /60 |
Max. Power (W) | 5500 |
Rated. Power (W) | 5000 |
Rated Voltage(V) | 110,120, 220, 230, 240 |
Rated Current (A) | 46.7 / 21.7 |
Type | Magnet Motor, Single Phase |
DC Output | 12V5A or (USB 5VDC2.1A) |
Engine Model | LY190F1 |
Engine Type | Single-Cylinder , OHV , 4-Stroke , Air-Cooled , Gasoline Engine |
Displacement (CC) | 420 |
Power/ Speed( kW/r/min) | 9.0 / 3600 |
Fuel | Unleaded Gasoline |
Fuel Tank Capacity (L) | 25.0 |
Oil Capacity (L) | 1.10 |
Continuous Working Hours | 11h |
Starting System | E-starter(with Battery) |
Operating Noise Level(7m) dB | 75 |
Machine Dimension | 680*515*535mm |
Package Dimension(air column bag ) | 745*540*560mm |
N.W. / G.W. | 76 / 84 KG |
