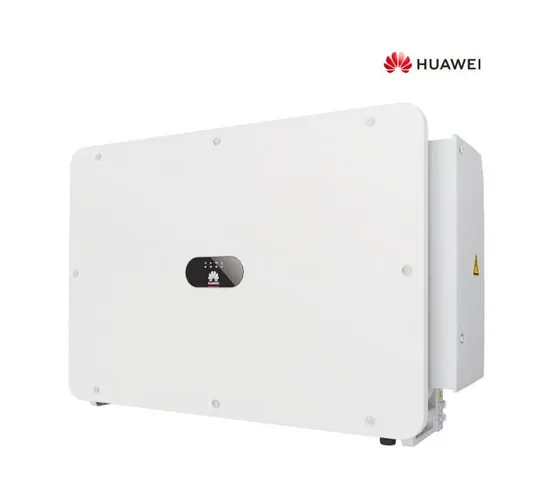

Huawei Solar Inverter Agent Sun2000-60ktl-M0 60kw Three Phase Huawei Inverter Smart PV String Inverters

Product Description

Product Description Product Description
Data Sheets

Technical Specifications		SUN2000-110KTL-M0
Efficiency
Max.Efficiency		98.6%
Chinese Efficiency		98.1%
Input
Max. input voltage		1100 V
Max. Input Current per MPPT		26A
Max. Input Short Circuit Current per MPPT		40A
MPPT Operating voltage range		200V- 1000 V
Rated input voltage		600V
Number of MPP Trackers		10
Max. number of inputs		20
Output
Grid connection		three phase
Rated output power		110000W
Max. apparent power		121000 VA
Rated Output Voltage		3x220V/380V, 3x230V/400V, 3W/N+PE
Rated AC Grid Frequency		50/60 Hz
Max. output current		167.2 A
Adjustable power factor		0.8 leading --- 0.8 lagging
Max. Total Harmonic Distortion		<3%
Protection
Input-side Disconnection Device		Yes
Anti-islanding Protection		Yes
AC Over-current Protection		Yes
AC short-circuit protection		Yes
AC over-voltage protection		Yes
DC reverse-polarity protection		Yes
DC surge protection		Yes
AC surge protection		Yes
Residual Current Monitoring Unit		Yes
Arc fault protection		Yes
DC MBUS to optimizer		Yes
General
Operation Temperature Range		-25ºC---60ºC (Derating above 45ºC)
Relative humidity		0%-100%
Max. operating altitude		0 - 4000 m (Derating above 2000 m)
Cooling Method		Natural Convention
Weight (with mounting plate)		85 KG
Dimensions		1035×700×365 mm
Protection Degree		IP65

Detailed Images
Title goes here. String inverters transform the direct current (DC) from your PV panels into an alternating current (AC) that can be fed into the electrical grid.
String inverters are mostly used in residential and commercial solar projects such as rooftop, carport, ground mount and tracker
installations. String inverters come in a power range between 2.5 kW and 250 kW.
