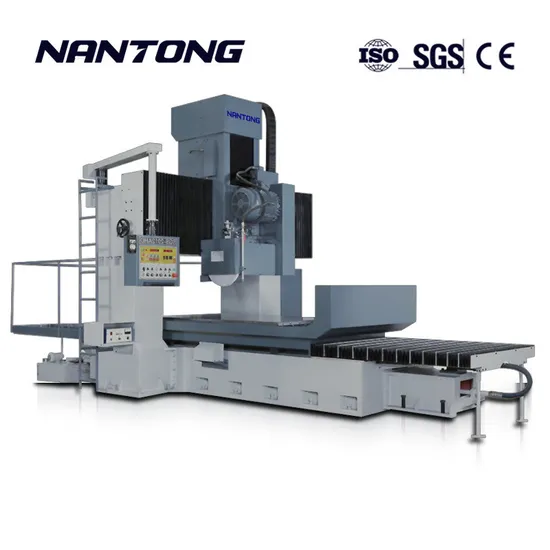

High Precision CNC Metal Milling Machine

Product Description

Advanced Machine Parameters

Model	Unit	SKX2016	SKX2500	SKX3020	SKX4025
Travel
X axis	mm	2,200	2,700	3,200	4,200
Y axis	mm	1,600 / 2,000/2500/3000
Z axis	mm	800(1,000-opt.)
Distance from spindle nose to table	mm	150 - 950(150 / 1,150-opt.)
Distance between two column	mm	1,700 / 2,100/2600
Working table
Table Length	mm	2,000	2,500	3,000	4,000
Table Width	mm	1,600 / 2,000
Table Load	kg	6,000	7,000	9,000	10,000
T- Slot (Width x Number x Pitch)	mm	22x7x180 / 22x9x180
Spindle
Spindle Taper	-	BT-50 / ISO-50 / CAT-50
Spindle Speed	rpm	3,000(6,000-opt.)
Spindle motor(cont./30 minutes rated)	kw	18.5 / 22 (22/26-opt.)
Feed
Rapid Traverse(X/Y/Z)	m/min	12 / 12 / 15			10 / 12 / 15
Cutting feedrate	mm/min	7,000
Accuracy
Positioning Accuracy	mm	±0.005 / 300 ; ±0.015 / Full travel
	mm	P0.03		P0.035
Repeatability	mm	±0.003
	mm	0.025		0.028
ATC
Tool magazine capacity	pcs	32 (24/40/60-opt.)
Max. tool size (full pocket/next pockets empty)	mm	Ø125/245
Max. tool length	mm	350
Max. tool weight	kg	20
Others
Power required	kva	65
Pneumatic input pressure	kg/cm2	6.5
Machine net weight	tons	20 / 22	22 / 24	24 / 26	28 / 30
Floor space (LxWxH)	m	8.5x5.1(5.5)x4.7	10.5x5.1(5.5)x4.7	12.5x5.1(5.5)x4.7	15.2x5.1(5.5)x4.7

Optimal Machine Configuration

Automatic lubrication system

Spindle oil cooler

Air blast through spindle

Manual Pulse Generator

Working lamp

3-color alarm lamp

RS-232 interface

Heat exchanger for electrical cabinet

Water gun and air gun interface

Cutting coolant system

Twin auger chip removal system

Belt type chip conveyor with cart

X axis Heidenhain Linear Scale

Sub-table

3 axes manual pulse generator for mold processing

Coolant through spindle at 20/40/70 bar

Coolant through tool holder interface

Air conditioner for electrical cabinet

Transformer

Oil skimmer

Oil mist collector

Distinguished Company Introduction
NANTONG YIJI MACHINERY CO., LTD
Founded in 1988, Nantong YIJI Machinery Co., Ltd specializes in manufacturing high-end move column CNC machine centers, floor-type boring machines, CNC gantry milling machines, automated solutions, and professional machine tools. Embracing the business philosophy of 'Quality is essence, excellence, full participation,' we continually enhance the 'YIJI' brand's quality. Our strengths lie in specialized design, mature production workmanship, stringent QC management, rapid integrated solutions, and exceptional after-sales service, which have earned our customers' trust. Our expansive market share spans 30 countries across Europe, America, and Southeast Asia, where our diverse product range enjoys robust sales and a stellar reputation. We hold import/export rights, export product licenses, CE certification, and ISO9001 quality system certification.
Innovation knows no bounds. Techniques shape the future. We are committed to providing you with cutting-edge technology, top-quality machines, and unparalleled service.
Our Superior Service
Comprehensive Warranty & After-Sale Service
1. 24-hour expert technical support via email or phone.
2. Provision of additional machine accessories, and custom program creation based on your drawings. Customized or special designs are welcome.
3. All our products come with a 12-month warranty period.
4. Excludes damage caused by human error.
5. We offer materials and technical support to assist our customers in resolving issues.
We will cover the delivery costs for any repair, return, or replacement scenarios.
We eagerly await your inquiry!
