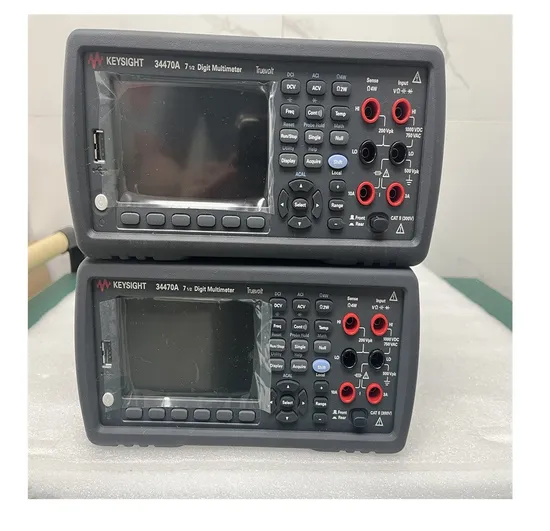

Keysight 34470A Digital Multimeter 7.5 Digit Truevolt Dmm Desktop Multifunctional Digital Display Multimeter

Product Description

Product Description

34470A Digital Multimeter, 7.5 Digit, Truevolt DMM7.5 digit Truevolt DMM with Truevolt technology for greater accuracy and measurement insights. 16ppm basic DCV accuracy, 50K readings/s.
The Keysight 34470A 7½ digit, Performance Truevolt Digital Multimeters offer higher levels of accuracy, speed and resolution.
Histogram, bar and trend charts on 4.3-inch color graphical display ease monitoring and speed up statistical analysis. Measure with confidence, with high basic DCV accuracy of 16 ppm. Test low power devices with 1 µA range and pA resolution. Flexibly automate measurements over USB or LAN/LXI core interface. Digitizing and advanced triggering (DIG) now included. Download BenchVue Basic app for free to control your instruments. What is included:
Standard 3-year Warranty (90 days for unserialized accessories) 34138 Test Lead Set USB Cable Power Cord Certificate of Calibration Keysight 34470A Digital Multimeter Parameter Description
1. For DC: The technical indicators are valid after 60 minutes of preheating, setting the integration time to 10 or 100 NPLC, and enabling automatic zeroing. For communication: Technical indicators are effective after 60 minutes of preheating, using slow AC filtering, and sine wave.
2. Except for 1000 DCV, 750 ACV, 10 A DC, 3 A AC, 10 A AC, and diode testing, all ranges have a 20% over range.
3. Relative to calibration standards.
4. Add a coefficient for every 1 degree (° C) outside the TCAL ± 5 ° C.
5. The technical specifications are effective when the sine wave input is greater than 0.3% range and greater than 1 mVrms. The range of 750 ACV is limited to 8 x 107 V - Hz.
6. Low frequency performance: Three filter settings are available: 3 Hz, 20 Hz, and 200 Hz. Exceeding the frequency set by the filter has been specified and no additional errors will occur.
7. The technical specifications are applicable to 4-wire or 2-wire measurement (calculation bias zeroing) resistance measurement. If there is no mathematical null value, 2-wire resistance measurement will add an additional error of 0.2 Ω.
The 10A range is only available on the front-end connector. Add 2 mA base current value to each amplifier, or input current>5 A rms.
9. The technical specifications are effective when the sine wave input is greater than 1% of the range and greater than 10 μ A AC.
10. The technical specifications are applicable to the voltage measured at the input terminal. The 1 mA test current is a typical value. The variation of the current source will cause a change in the voltage drop at the diode node.
11. The selected probe will limit the actual measurement range and detection error. The probe accuracy includes all measurement and ITS-90 temperature conversion errors. PT100 Ro can be set to 100 Ω± 5 Ω to eliminate the original probe error.
12. Unless otherwise specified, the technical specifications are valid after 60 minutes of preheating and with sine wave input. The technical specifications are applicable for a 1-second gating time (7 digits).
13. Suitable for sine wave and square wave inputs ≥ 100 mV. For 10 mV to 100 mV inputs, multiply the reading error% by 10.
14. The amplitude range is 10% to 120%, below 750 ACV.
15. The square wave input ranges from 10 Hz to 300 kHz.

Brand	Keysight
Type	34470A
