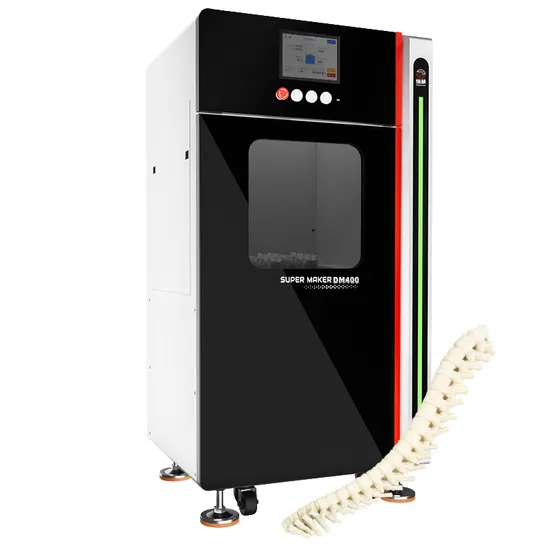

Dm-400 Professional Top-Down DLP 3D Printer with High Resolution and Precision

Product Description

Product Model	DLP-DM400
Operating system	Zongheng Self-developed System
Operating screen	7.0" resistive screen
Print size	384*216*330mm
XY Resolution	100um resolution
Technology	Top-Down DLP
Light source	4k, 405 light source DLP
Connection method	USB stick or network cable
Z-axis accuracy	0.002
Layer thickness	0.03-0.15
Print speed	6-8 seconds per layer
Power Requirements	220v/50HZ
Slicing software	Self-developed
Machine size (L*W*H)	810*690*1560mm
Net weight	320KG
Slicing Software	VoxelDance Tango
Printing Platform	Magnetic detachable platform
Import File Format	igs,stl,step
Coating system	Adjustable negative pressure scraper
Warranty	One Year
Tank Capacity	58.3L(70KG)
Resin	405nm:Model Resin, Dental Resin, Flexible resin, Jewelry Resin, High Temperature Resin, High ToughnessResin,Water Washable Resin,Transparent Resin

1. SuperMaker DM400 is DLP 3d printer developed for model resin and ceramic printing, open style, easier to adjust. 2. Suitable Projector modes: 405nm or 385nm. 3. We have created unique testing function for material testing. Do not need complex operations. Supports single-layer exposure of specified models. Parameters can be modified directly on the touch screen, and a set of curing parameters can be tested in one minute. With just a few milliliters resin, simple models can be printed to test performance. 4. It supports stl, igs, step file. 5. Scrapers: two kinds of working model, one is for without coating and pressure, use for the high sticky resin, such as ceramic resin, another one is with coating and pressure, use for normal model resin etc. 6. Equiped with various tanks with different sizes. Users can customize the tank.
