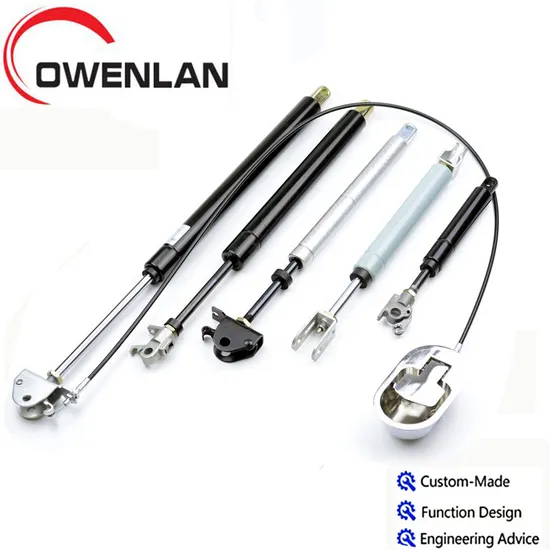

Rigid Lock Gas Cylinder Gas Spring with Thrusting Force/ Air Spring/ Lunch Break Chair

Product Description

Name	Rigid Lock Locking Stopper Gas Spring with Thrusting Force/ Medical bed/ Lunch break chair
	1.100,000 times -passed fatigue test
	2. SGS Cerifty
	3.Passed ISO9001 International Quality System Certification
Use	Automobile;Auto,car;Furniture;Tool Box;Machines,mechanical equipment; Boat,container,etc.
Material	steel/ss304/ss316
Color	silver/black/others
Connector	ball connector/metal eye/clevis and so on
Advantage	1.pass 180,000 times fatigue times
	2.we can supply samples for free
	3.Competitive price
	4.Fast delivery time:1000 pcs 3 days
	The size can be made according the customer requirment

For you refer how to choose reasonable diameter as pressure

Extended length	Stroke	DIA	Force
100-300	30-100	12*4	5-100N
300-600	100-200	15*6	10-300N
600-900	200-300	18*8	50-600N
900-1200	300-400	22*10	100-1200N
1200-1600	400-500	25*12	100-1800N
1600-2000	500-600	28*14	100-3000N
2000-2500	600-700	28*16	100-3000N
2500-3000	700-900	40*20	300-4000N
The size can be made according the customer requirment.

Technical Requirements:
1.Our gas spring according to the standard of GB/T 25751-2010;GB/T 25750-2010 or produce by customers' requirements.
2.Cylinder:20#, black paint on surface, smooth coating, no grinning, no aberration.
3.Piston rod:45#,the surface is treated by chemical deposition for Ni- P alloy,72h salt spray resistance
4.The gas spring have no block and abnormal sound during working.
Multiple Connectors,Switch and other accessory
Application
Certification
About Our Factory
Packing & Shipping
FAQ
1. Q1: What is our factory product range?
A1: Furniture Gas Spring; Office Chair Gas Lift; Supporting Gas Spring; Locking Gas Spring; Auto Gas Spring;
Any stop Gas Spring; Traction Gas Spring; Hydraulic Damper; Kitchen door buffer; End Fittings etc.

Q2: What's your MOQ of this gas spring?
A2: 100pcs.Small quantity is available .

Q3: Is it all right to make customer's own brand name?
A3: that's all right. if customer required, we'll make customer's brand name. otherwise we make our own brand
name.

Q4: How is the lead time of our order?
A4: For Sample3-7days , for Order the lead time is according to the quantity.

Q5: Can we visit your factory before we order from you ?
A5: Yes,welcome ! That is our pleasure to be visited.
.
Q6: Do you provide samples ? is it free or extra ?
A6: Yes, some product can offer the sample for free charge, and some product sample is not free, but do not pay the cost of freight.
