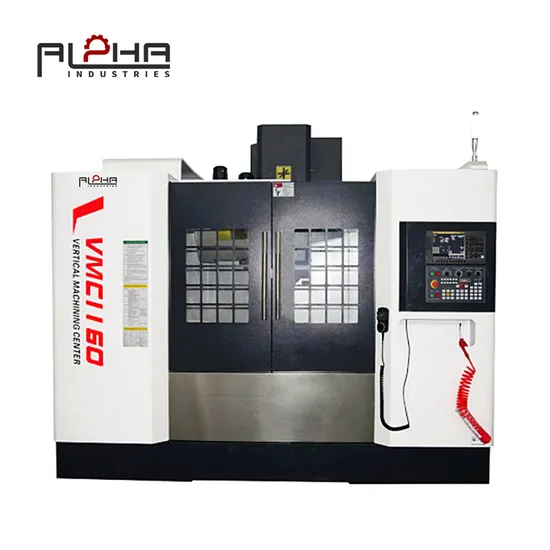

Compact Structure and Size Reasonable Vmc1160 CNC Control System Machine Center

Compact Structure and Size Reasonable Vmc1160 CNC Control System Machine Center

US$20,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC1160
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Precision
High Precision
Transport Package
Standard Export Packing
Specification
3350x2300x2550mm
Trademark
Alpha industries
Origin
China
Production Capacity
100 Sets/Year

Product Description


Product Introduction and Use
This product X, Y, Z three-axis servo direct control semi-closed vertical machining center, three-axis linear ball guide, guide rail load, span wide, high precision, suitable for heavy load, compact structure and size reasonable, the spindle is servo motor driven by the timing belt. It can realize the clamping of various parts such as discs, boards, housings, cams, and molds at one time. It can be used for drilling, milling, boring, expanding, reaming, rigid tapping, etc. The production of medium and small batch products can satisfy the processing of complex and high-precision parts. The fourth rotary shaft can be equipped to meet the processing requirements of special parts.
CNC Control System
The system has complete and reliable interlock , safety protection and fault diagnosis and alarm functions,equipped with RS232 standard and network communication interface,and computer program control and storage,can achieve DNC processing.(according to the system has differences).
Product Parameters
Model No. VMC1160
Travel X-axis 1100mm
Y-axis 600mm
Z-axis 600mm
Spindle nose to table surface 120-720mm
Spindle axis to column surface 650mm
Worktable Table size 1200×600mm
Max.loading 800kg
T-slot width 18
T-slot quantity 5
Spindle Spindle taper BT40
Spindle speed 8000rpm
Spindle motor 11kw
Tool Max.tool dia. φ80/φ150mm
Max.tool length 200mm
Max.tool weight 8kg
Rapid movement X,Y axis rapid movement rate 24000mm
Z axis rapid movement rate 20000mm
Cutting feed rate 1-10000mm/min
Accuracy Position accuracy ± 0.01mm
Repeat positioning accuracy ± 0.003/300mm

Motor

XYZ axis AC servo motor(torque N.m 22/22/22)
Power device Power form 3-phase AC 380V±10% 50Hz±10%
Capacity 20KVA
Coolant system Capacity 200L
Cooling pump power 440W
Cooling pump flow 67L/min
Rated head 16m
Air supply Using air pressure 0.6MPa
Dimension and weight Dimensions 3350×2300×2550mm
Net weight 6200Kg

Accessories

No. Name Specification or marking Quantity Remarks
1 Adjustable block and bolt Created by self 8 sets
2 Milling chuck BT40 1 set
3 Allen wrench 1 set

List of Main Purchased Parts

No. Name Specification Quantity Remarks
1 Spindle unit BT40 (φ150) Taiwan Yucheng 1 set Standard accessories
2 Pressurized knife cylinder 4500 Taiwan 1set Standard accessories
3 Disc magazine BT40-24T Taiwan Desu 1set Standard accessories
4 X direction ball screw 4010/C3 Taiwan HIWIN 1pair Standard accessories
5 Y direction ball screw 4010 /C3 Taiwan HIWIN 1pair Standard accessories
6 Z direction ball screw 4010/C3 Taiwan HIWIN 1pair Standard accessories
7 Screw bearing NSK 15 Standard accessories
8 Coupling Import 3 Standard accessories
9 Coolant pump Domestic 1 Standard accessories
10 Lubrication system Ruiqing Domestic 1set Standard accessories
11 Pneumatic system Yadeke 1set Standard accessories
12 X-direction roller liner rail 45mm Taiwan HIWIN 1pair Standard accessories
13 Y-direction roller liner rail 45mm Taiwan HIWIN 1pair Standard accessories
14 Z-direction roller liner rail 45mm Taiwan HIWIN 1pair Standard accessories

Standard Accessories

Spindle unit 8000rpm GSK 218 control system Rigid tapping
Taiwan HIWIN screw Adjustable block Move the hand vein
Centralized automatic oil lubrication External cooling system and water tank Simple oil-water separation device
Full protection sheet metal shield and rail shield Taiwan HIWIN linear guideway Tubular work lights, warning lights
Taiwan 24 tools disc magazine Spindle servo motor:
speed 8000rpm,power11kW

Optional Accessories

System:Siemens 808D Fanuc 0i-mf Mitsubishi M80

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
