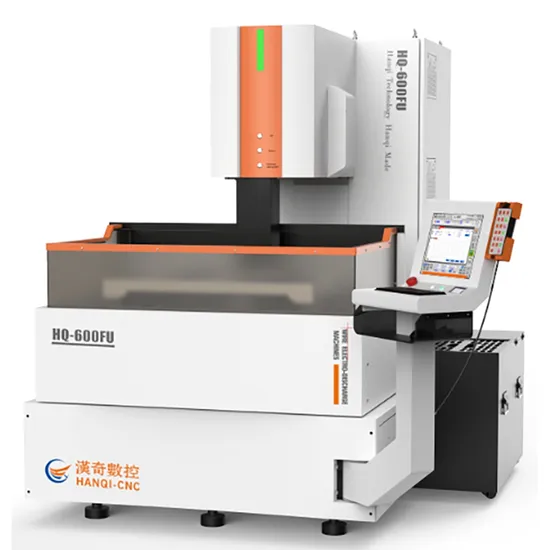

High Precission Servo Wire EDM Machine Hq-600fu

Product Description

Cnc servo steel wire cutting machine FU series Product Parameters

		HQ-400FU	HQ-600FU	HQ-800FU
Machine tool dimensions	mm	1350x1720x2170	2350x2084x2170	2480x2200x2600
Weight of machine	kg	2200	2500	4500
Table travel	mm	400x320x300	600x400x300	800x600x500
U, V-axis stroke	mm	±35	±35	±35
Maximum cutting thickness	mm	300	300	500
Maximum machining taper (angle/thickness)	°/mm	± 12°/80	± 12 °/80	± 12 °/80
Electrode wire diameter range	mm	Φ0.12-0.2	Φ0.12-0.2	Φ0.12-0.2
Machine tool power	Kw	≤2.3	≤2.3	≤2.3
Work area
Size of worktable	mm	660 x 480	900x 560	1100 x 800
Working fluid tank	mm	1000 x 580	1200x 660	1450 x 900
Table load-bearing weight	kg	500	900	2000
Working fluid tank
Filtration accuracy	mm	10	10	10
Maximum volume of the tank	L	130	130	130
Pulse power
Drive mode (X/Y)		Precision Ball Screw	Precision Ball Screw	Precision Ball Screw
Drive mode (U/V)		AC servo	AC servo	AC servo
Surface roughness	mm	Ra ≤0.5	Ra ≤0.5	Ra ≤0.6
Maximum cutting speed	mm²/min	≥300	≥300	≥300
Minimum molybdenum wire loss	mm²	150,000 mm²/zero loss	150,000 mm²/zero loss	150,000 mm²/zero loss
Speed of silk handling		Multilevel frequency control	Multilevel frequency control	Multilevel frequency control
CNC system
Data Systems		HQWNC or AUTO CUT	HQWNC or AUTO CUT	HQWNC or AUTO CUT
Communication interface		USB, RS232	USB, RS232	USB, RS232
Control the number of axes		6-Axis control 4-axis simultaneous	6-Axis control 4-axis simultaneous	6-Axis control 4-axis simultaneous
Process editing		CAD graphics automatic generation and international standard ISO common code	CAD graphics automatic generation and international standard ISO common code	CAD graphics automatic generation and international standard ISO common code
Language interface		Chinese, English, Russian, Japanese	Chinese, English, Russian, Japanese	Chinese, English, Russian, Japanese

M-SPEED WEDM with lifting liquid tank
HQ-400FU
*Ultra low molybdenum wire loss
*Breaking through 150000 mm2 without wire loss, we provide you with additional income (cutting conditions: 9000mm2/h water-based cutting fluid, steel workpiece height 60mm)
*Maximum cutting efficiency: exceeding 300mm ²/min
*Optimal surface roughness: Ras0.5um
Software

Quality Control
Detailed Photos
Sample Parts


Certifications
Company Profile
1) The chairman has worked at Hanchuan Machine Tool Factory in China (1986-2005), focusing on the field of electrical machining for nearly 40 years;
2) In 2005 The company was established , with its factory located in Suzhou High tech Zone, China, covering an area of 20000 meters ²;
3) It is a high-tech enterprise in Jiangsu Province and a specialized, refined, and innovative enterprise in Jiangsu Province;
4) With over 80 employees and nearly 20 research and development personnel, it is a research and development production oriented enterprise;
5) Implement the ISO9001 quality management system and use the Carl Zeiss three coordinate system for precision testing of machine tool components;
6)In 2016, we engaged in product cooperation with Beijing Agie Charmilles Industrial Electronics Co., Ltd;
7)In 2017,we obtained titles such as Jiangsu High tech Enterprise and Jiangsu Private Science and Technology Enterprise;
8)In 2018,Introducing internationally leading production and manufacturing processes, stricter quality management systems, and standardized production processes implemented by Swiss enterprises;
9)In 2020,we developed Fully CNC Lifting Liquid Tank Mirror effect EDM,named HQ-U40,the machine which can achieve the optimal surface roughness up to 0.047um;
10)In 2022,we moved into the new a new address located in the high-tech zone and received the title of specialized, refined, and innovative enterprise in Jiangsu Province;
