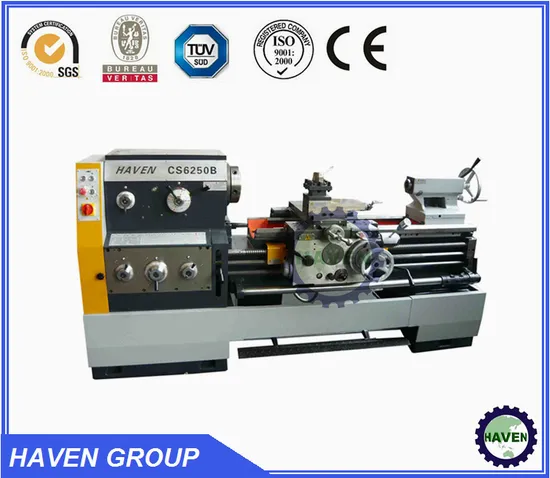

CS6250B/1500 Big Bore Lathe Machine
| US$2,000.00-40,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CS6250B/1500
Processing Accessory
pipe and disc type metal workpiece
Guide Rail
Horizontal Guide Rail
Tool Holder
4-section type turret
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
500mm
Max swing dia in gap
710mm
Spindle Bore
82mm
workpiece length
1500mm
Transport Package
Veneer Box
Specification
CS6250B/1500
Trademark
HAVEN
Origin
China
HS Code
8458
Production Capacity
50unit/Month
Product Description
Big Bore Lathe Machine CS6250B/1500Main features:
- Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
- Threading Inch, Metric, Module and D. P.;
- Perform drilling, boring and groove broaching;
- Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
- Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
- There are hand brake and foot brake for users to choose;
- Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz, 60Hz) are available.
Standard Accessories:
3 Jaw Chuck; Change Gears Set; Reduction Sleeve; Chasing Dial Indicator; Dead Centers; Brake System; Full Length Splash;Guard; Coolant System; Face Plate; 4 Jaw Chuck; Steady Rest; Follow Rest; Tool Box & Tools; Work Light;
Main specification:
| SPECIFICATIONS | UNIT | CS6240 | CS6250 CS6250B CS6250C | CS6266B CS6266C | CQ6280B CQ6280C | |
| Capacity | Max. swing dia. over bed | mm | Φ400 | Φ500 | Φ660 | Φ800 |
| Max. swing dia.in gap | mm | Φ630 | Φ710 | Φ870 | Φ1000 | |
| Max. swing dia. over slides | mm | Φ200 | Φ300 | Φ420 | Φ560 | |
| Max. workpiece length | mm | 1000/1500/2000/3000 | 2000/3000 | |||
| Spindle | Spindle bore diameter | mm | Φ52 | Φ52,B type 82mm, C type 105mm | ||
| Type of spindle nose | no | CS6240/CS6250: ISO 702/III NO.6 bayonet lock others:ISO 702/II NO.8 com-lock type | ||||
| Spindle speed | rpm | 24 steps 9-1600 C type :12 steps 36-1600 | B type: 24 steps 8-1400 C type:12 steps 30-1400 | |||
| Spindle motor power | KW | 7.5 | ||||
| Tailstock | Diameter of quill | mm | Φ75 | Φ90 | ||
| Max. travel of quill | mm | 150 | ||||
| Taper of quill (Morse) | MT | 5 | ||||
| Turret | Tool O.D. size | mm | 25X25 | |||
| Feed | Max. X travel | mm | 145 | |||
| Max. Z travel | mm | 320 | ||||
| X feed range | mm/r | 0.012-2.37mm/rev, 93kinds; C series0.027-1.07mm/rev, 65kinds | ||||
| Z feed range | mm/r | 0.028-6.43mm/rev, 93kinds; C series0.063-2.52mm/rev, 65kinds | ||||
| Metric threads | mm | 0.5 - 224 mm, 48 kinds; C series 1 - 14 mm, 22 kinds | ||||
| Inch threads | t.p.i | 72 - 1/8 TPI, 48 kinds; C series20 - 2 TPI, 25 kinds | ||||
| Module threads | πmm | 0.5 - 112 π mm, 42 kinds; C series0.5 - 7 π mm, 18 kinds | ||||
| Diametric pitch threads | t.p.i.π | 56 - 1/4 DP, 45 kinds; C series 56 - 4 DP, 24 kinds | ||||
| Other | Cooling pump motor power | kW | 0.12 | |||
| Length | mm | 2362/3132/3632/4632 | 3565/4565 | |||
| Width | mm | 975 | 1340 | |||
| Height | mm | 1270 | 1450 | 1490 | ||
| Weight | Kg | 2050 2250/2450/2850 | 2100 2300/2500/2900 | 2200/2400 2600/3000 | 3000/3200 | |
