Basic Info.
Nature of Source Flow
Active Inverter
Certification
CE, ROHS, ISO9001
Circuit Topologies
Push-pull Type
Battery Type
Lithium/Lead-acid
Parallel Capability
6 units maximum
Specification
460*395*132mm
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
65.00cm * 55.00cm * 25.50cm
Package Gross Weight
16.700kg
Product Description

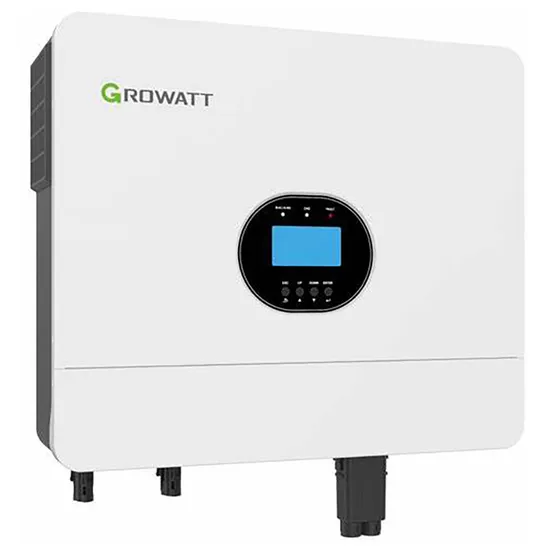

Product DescriptionGrowatt SPF 6000ES plus inverter has a pure sine wave output inverter also just for 12000VA power supply system. It is perfect for off-grid, backup power and self-consumption applications.
Features:Rated power 6KW, power factor 1MPPT ranges 120V~450V, 500VocHigh frequency inverter with small size and light weightPure sine wave AC outputSolar and utility grid can power loads at the same timeWith CAN/RS485 for BMS communicationWith the ability to work without batteryParallel operation up to 6 unit (only with battery connected)WIFI/ GPRS remote monitoring (optional)
Product Parameters
Model | SPF 6000ES plus |
Battery Voltage | 48VDC |
Battery Type | Lithium/Lead-acid |
Rated Power | 6000VA/6000W |
Parallel Capability | Yes, 6 units maximum |
AC Voltage Regulation | 230VAC ± 5% @ 50/60Hz |
Efficiency (Peak) | 93% |
Waveform | Pure sine wave |
Charge Current | 80A |
Selectable Voltage Range | 170-280 VAC ; 90-280 VAC |
Frequency Range | 50Hz/60Hz (Auto sensing) |
Protection Degree | IP20 |
