Solar Heating System
Basic Info.
Model NO.
RNE-SPFS-300
Max. Capacity
>200L
Structure
Separate Type
Pressure
Pressurized
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Connecting Pipe
Certification
CE, ISO9001
System Type
Split Solar Water Heating System
Tank Capacity
300L
Inner Tank Material
SUS304 Stainless Steel 2.0mm
Outer Tank Material
Galvanized Steel 0.5mm
Insulation
Polyurethane Foam 50mm
Solar Collector
Heat Pipe Solar Collector
Expansion Vessel
24L
Pump Station
Sp116
Accessory
Electric Heating Element, Mag Rod, Tp Valve
Transport Package
Carton
Specification
300L
Trademark
RAVEN NEW ENERGY
Origin
China
HS Code
84191910
Production Capacity
2000PCS/ Month
Product Description

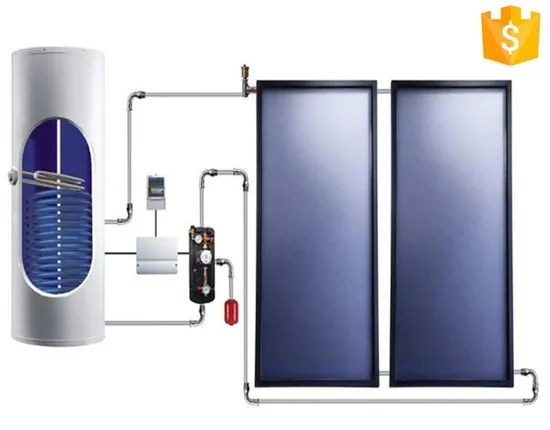

Split flat panel collector split solar water heater system This system is specially designed for household, villa . It consists of followed parts: flat panel solar collector, storage water tank , solar working station , expansion vessel.Specialty:
Collector separate with water tank, system works by pump circulation. Automatic controlling system, reliable operation, supply constant water temperature. Water tank can put anywhere inside house, avoid gradual rust and last long lifetime. Collector can be installed wherever available like balcony, wall, roof etc., Easy and convenient installation and operation, unified with the building completely.
Working Principle:
Adopt the temperature difference circulation, controller operates whole system automatically.
1. Pump will start circulation when temperature difference between collector and water reaches the set value.
2. Pump will stop circulation once the temperature difference lower than set value.
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to the water tank by copper heat exchanger.
5. Assistant heating element will start if hot water does not reach set value.
Storage water tank specification:
| Model | 100L | 200L | 300L | 400L | 500L | ||
| Inner vessel dia.(mm) | φ365 | φ440 | φ480 | φ600 | φ600 | ||
| Water tank dimension(mm) | φ470 | φ540 | φ600 | φ700 | φ700 | ||
| Material & thickness Inner tank | SUS304-2B /316L 1.2mm | SUS304-2B /316L1.2mm | SUS304-2B/316L1.2mm | SUS304-2B/ 316L 2.0mm | SUS304-2B/316L 2.0mm | ||
| Material & thickness Outer tank | Color steel 0.5mm | ||||||
| Insulation thickness PU (mm) | 50 | 50 | 60 | 50 | 50 | ||
| Heat exchanger Surface area | Top (m2) | ---- | 0.6 | 0.6 | 0.8 | 0.8 | |
| Bottom (m2) | 0.7 | 0.7 | 0.7 | 1 | 1 | ||
| Rated heating power | 1.5KW | 2.5KW | 2.5KW | 2.5KW | 2.5KW | ||
| Overall dimension (references)(mm) | φ470×1150 | φ540×1510 | φ600×1840 | φ700×1600 | φ700×1920 | ||
| Packing case size(mm) | 1230×500×500 | 1580×590×590 | 1930×650×650 | 1590×750×750 | 1930×750×750 | ||
| Weight(references)(Kg) | 33 | 50 | 72 | 102 | 126 | ||
Production flows
For more details, please send email to us , thank you !
