Servo Motor Control CNC Angle Steel Drilling Marking Line with Electrical Hydraulic

Product Description

Servo Motor Control CNC Angle Steel Drilling Marking Line With Electrical Hydraulic
Product Description

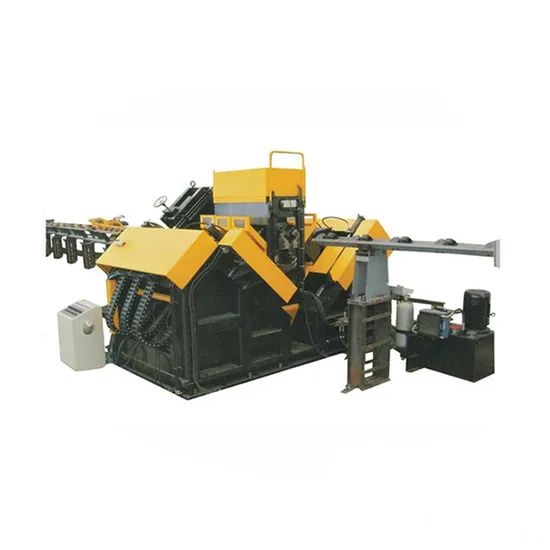

1. This processing line is composed of transverse conveyor, overturn conveyor, infeed conveyor, CNC infeed carriage, two sets of drilling units, one set of marking unit, automatic unload conveyor and corresponding hydraulic station, electric cooling system.
Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.
2. There is one set of drilling unit on each side. Every drilling unit can be installed with three drills of different dimensions. The drilling unit can realize the CNC movement holistically for change of drilling stadia, therefore to ensure the accuracy of holes.
3. Rotation speeds of all spindles are stepless adjustment realized by transducer, and feeding speeds are also stepless adjustment realized by speed regulating valves. Transform of the rapid feeding, work feeding, and rapid withdrawing of spindles all are finished automatically.
4. One marking unit in the drilling line. Marking stadia can be preset conveniently. Marking, clamping of the workpiece and infeed of the drilling are driven by the hydraulic system. Main components are imported. Circulate cooling system is applied so as to prolong the life of drills.
5. All marking and drilling in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength of workers with well advantages than other manufacturers.
6. The control system consists of the host computer, servo motor, PLC, external monitoring switch, etc. Just input the dimension of the workpiece, the processing program will be generated automatically. Besides, the program can be saved, selected, displayed and communicated as per the workpiece No.
7. The machining line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.
Product Parameters

Model	HADM2532	HADM3635
Angle size( mm)	140*140*10-250*250*32	140*140810-360*360*35
Max.length of raw material(m)	14
Marking force(kN)	1030
Marking unit type	Close type
Qty.of character group	1
Qty.of character	15
Character size(mm)	14*10*19
Back marking (mm)	50-220steoless	50-330stepless
Qty.of drill on each side	3
Max.drilling diameter(mm)	26
Taper of drilling spindle	BT40
Max.spindle rotation speed(r/min)	6000
Max.moving speed (m/min)	40
Max.moving speed of slipway of drilling head	10
Max.feeding speed of drilling head	14
Qty.of CNC axes	9
Overall dimension (m)	About 30*7.5*3	About 33.3*8.9*3
Machine weight	About 30000	About 34000

Workpiece Show
Application
This line is fully automatic machine for punching, marking, shearing of the angle line, which used widely in telecommunications angel steel tower industry, electric power fittings, warehouse rack, structural steel construction industries etc. Our customer visit
