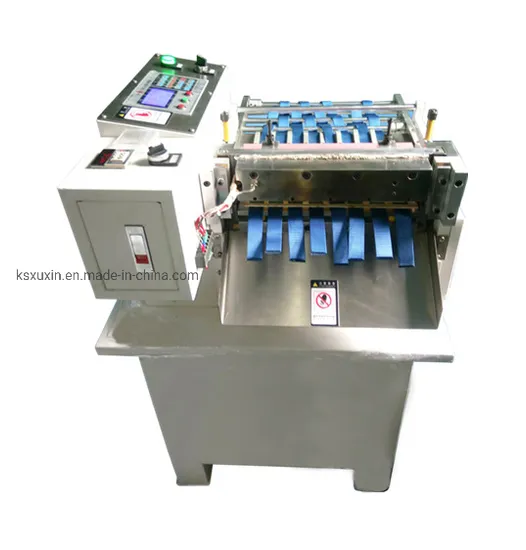

300mm Width Hot and Cold Knife Belt Cut Machine

Product Description

300mm width hot and cold knife belt cut machine ;Nylon belt cutting machine Detailed Photos

Cut material

Product Description Features
* High speed: It can cut 100~120 cut per minute. (50mm long)
* Accuracy: Cut-length is accurate cwing to a stepping motor
* Cutting type: Cutting is neat due to using a cold cutter which is durable.
* Automatic operation: It works autoally only by setting length and quantity
* Automatic stopper: It stops autoally if materials run out during operation
* Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on
* Application: belt loop, soft tube, string, plastic zipper, elastic band, small webbing, etc.
* Freature: Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.

Specifications
* Available Width: 1 ~ 300mm
* Available Length: 1 ~ 99999mm
* Knife: Hot and Cold cutting
* Speed: 120pcs/min
* Accuracy: ± 0.1mm
* Power Supply: AC110V 60Hz / AC220V 50Hz 220W
* Measurement & Weight:

Machine	Automatic Bevel cutting machine
Model :	X-160HC	X-300HC
Type:	Electric	Electric
Cut Shape:	Straight	Striaght
Cut Width:	0.1---160mm	0.1---300mm
Cut length:	3---99999mm	3---99999mm
Cut Speed :	120pcs/min	120pcs/min
Accuracy:	± 0.1mm	± 0.1mm
Power Supply:	AC220V 50Hz/60HZ 300W	AC220V 50Hz/60HZ 4500W
Size & Weight	40*48*120Cm 90KG	70*80*120Cm 150KG
