8CH 8MP 4K Professional Ahd Hybrid DVR Supplier Coaxial Audio Tuya Xvr 8 Channel 5m-N DVR Video Recorder 1080P NVR Tvi Cvi Ahd IP Analog for CCTV Surveillance
| Negotiable | 10 Pieces (MOQ) |
Basic Info.
Model NO.
SE-9108DEL-A
Compressed Format
H.265
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDIM
Video Input/Output
4/8/16/32 Channel DVR, 8CH BNC Input
Audio Input/Output
4 Channel
Remote Control
Without Remote Control
Video File Logging Mode
Alarm Recording, Motion Detection Recording, Video Manual, Time Lapse Video
Audio
8CH Input, 1CH Output
Hard Disk Size
up to 6tb
HDD Supported
1X HDD
BNC Camera Input
8CH 8MP Analog Input
Interface
1CH HDMI, 1CH VGA, 2X USB, Alarm, Audio
Compression
H.265, H.264
HDMI Resolution
3840 X 2160
OEM, ODM
Yes, Support Software and Hardware Customised
Customized Logo
50PCS
Customized Packaging
200PCS
Alarm
8CH Input, 1CH Output
Transport Package
Paper Carton
Specification
300(L)*209(W )*48.5(H )
Trademark
SECUMATE, OEM, ODM
Origin
Shenzhen, China
HS Code
8521909090
Production Capacity
20000 Pieces/Year
Product Description

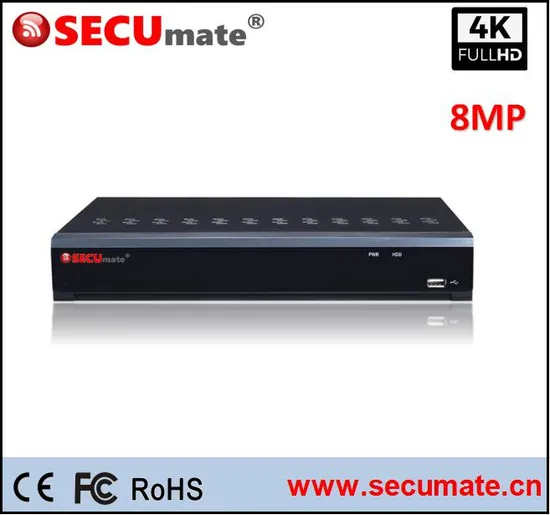

8 Channel H.265 8MP 4K HD Hybrid CCTV DVRMODEL: SE-9108DEL-A
Support 8ch 8MP/5MP/4MP/3MP/2MP AHD/TVI/CVI/CVBS BNC video input
H.265, H.264 Video compression
4ch playback
HDMI/VGA simultaneous video output up to 4K output
Support 1x SATA HDDs, up to 8TB each, 2x USB 2.0
8 Channel Audio input, 1 Channel Audio output
8ch Alarm input, 1ch Alarm output
Multiple network monitoring: WEB browser, VMS, Smart Phone
| Model | SE-9108DEL-A | |
| Video Compression | H.265, H.264 | |
| Video System | NTSC/PAL | |
| Operation System | Linux(Embedded) | |
| Analog video-input | 8ch BNC | |
| IP Video Input | 2ch,(only IP up to 6ch) | |
| Composite Video Input | Up to 12ch (Analog video + IP video) | |
| Video Output | HDMI/VGA Output | |
| Audio input /output | 8CH inputs/1CH output(RCA) | |
| Display | Resolution | 8MP(4K)/5MP/4MP/3MP/1080P/720P/960H |
| Feature | 1/4/6/S.E.Q. | |
| Record | Resolution | 8MP(4K)/5MP/4MP/3MP/1080P/720P/960H |
| Speed | Analog: 8MP: 6fps,5MP: 8fps, 4MP: 10fps, 3MP: 12fps, 2MP/1080P/720P/960H: 25fps, IP: PAL: 25fps(each ch), NTSC: 30fps(each ch) | |
| IP-Recording Bandwidth | 16Mbps ~48Mbps( default is 16Mbps, decrease one Analog channel can increase 8Mbps ) | |
| Maximum output Brandwidth | 48Mbps | |
| Maximum decode performance | 8MP: 28fps(Max 4CH playback),5MP: 80fps(Max 8CH playback), 4MP: 120fps,3MP: 136fps,1080P: 240fps | |
| Recording Mode | Continuous/Manual/Motion detect | |
| Synchronous Playback | 8CH | |
| HDD interface | 1SATA HDD, up to 6TB | |
| Multiplex Operation | live display, record, playback, backup and network | |
| USB | 1xUSB3.0 1*USB2.0(for mouse and backup/upgrade) | |
| Sensor & Alarm I/O | 8ch alarm input, 1ch output | |
| PTZ Control | Yes (RS485) | |
| Mobile Surveillance | Support Mobile Phones based on IOS and Android operation system | |
| VGA/HDMI | 1280*1024,1920*1080, 1680*1050,2560*1440,3840*2160 | |
| Power Supply | DC 12V/2A | |
| Dimension(WxDxH) | 300X227X53mm | |
| Working Temperature | -10°C~+55°C | |
| Working Humidity | 10%~90% | |
