Automotive Production CNC Surface Grinder Machine

Product Description

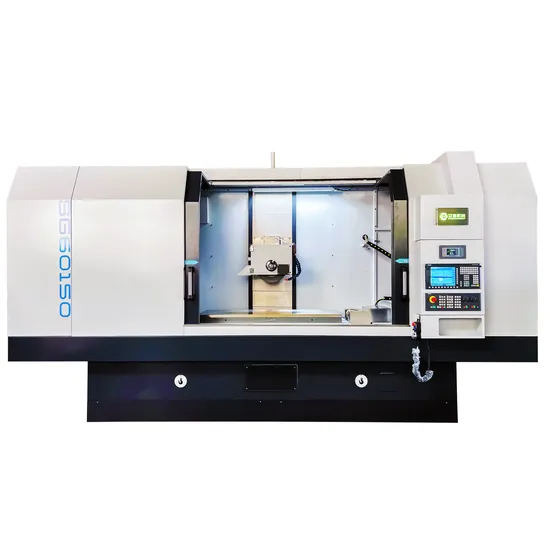

1. Pictures
2. Parameters

Parameters	Unit	SG60150CNC-3	SG60200CNC-3	SG80150CNC-3	SG80200CNC-3
Grinding Square Meter	mm	600×1500	600×2000	800×1500	800×2000
Table Load	kg	2380	3100	2500	3500
X axis Longitudinal Movement
Max. Table Travel	mm	1550	2050	1550	2050
Table Speed	m/min	1~16	1~16	1~16	1~16
Power of servo motor	kw	3.75	3.75	3.75	3.75
Y axis Vertical Movement
Distance Table to Grinding Spindle	mm	180~800	180~800	180~800	180~800
Vertical Speed	mm/min	1~4500	1~4500	1~4500	1~4500
Min Down Feedrate	mm	0.001	0.001	0.001	0.001
Power of servo motor	kw	2	2	2	2
Z axis Cross Movement
Max. Cross Travel	mm	600	600	600	600
Cross Speed	mm/min	1~4500	1~4500	1~4500	1~4500
Min Cross Feedrate	mm	0.001	0.001	0.001	0.001
Power of servo motor	kw	2	2	2	2
C axis Grinding Spindle
Spindle Motor	kw	7.5	7.5	7.5	7.5
		11/15 (Option)	11/15 (Option)	11/15 (Option)	11/15 (Option)
Spindle Speed	rpm	800~2400	800~2400	800~2400	800~2400
Grinding Wheel Dimensions	mm	400×50×127 400×100×127(Option)	400×50×127 400×100×127(Option)	400×50×127 400×100×127(Option)	400×50×127 400×100×127(Option)

3. Standard Accessories

1	Grinding wheel	2	Wheel flange
3	Wheel balancing base	4	Wheel balancing arbor
5	Extractor	6	Diamond dresser
7	Leveling pad	8	Anchor bolt
9	Tool box with tools	10	Electric chuck

4. Feature a. CNC machine has good expansibility, and can be configured with 2-axis and 3-axis CNC forming grinding, which is suitable for the grinding of various special-shaped surfaces, and also outstanding in the grinding field of high hard materials such as ceramics and cemented carbide.
b. A variety of processing methods can be selected: rectangular surface grinding, Z type surface grinding, grooving mode, boss mode, multi groove grinding, step mode, arc grinding, curve grinding, and the fourth axis can also be selected for indexing grinding of circular work piece.
c. Automatic grinding wheel dressing function: in the process of automatic grinding, after rough and fine grinding, automatic grinding wheel dressing can be carried out in the process of automatic cycle, so that after grinding, the work piece accuracy is higher and the processing efficiency is greatly improved.
d. The movable column mechanical mechanism has strong rigidity and stable structure, and is most suitable for the field of large work piece processing.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Main Configuration of Grinding Machine
1. Spindle motor: Use ABB brand which from Sweden.
2. Spindle bearing: Use NSK brand P4 grade precision ball bearing which from Japan.
3. Cross screw: Use P5 grade precision ball screw.
4. Main electrical components: Use S C H N E I D E R brand.
5. Main hydraulic components: Use brand from TAIWAN.
6. Cross feed and down feed servo motor: Use SIEMENS brand.
