Hydraulic Fully Automatic Qt15-15 Solid/Hollow/Paver Cement/Concrete Block Making Machine
| US$50,000.00-80,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
QT15-15
Type
Vibration Molding
Machine Name
Block Making Machine
Machine Model
Qt15-15
Cycle Time
15-25s
Pallet Size
1300X1100mm
Host Machine Power
78.5kw
Rated Pressure
31MPa
Host Machine Weight
17500kg
Vibration Form
Platform Vibration
Overall Dimension
11500X2350X2950mm
Factory Area
3000m2
Transport Package
Nude
Specification
New
Trademark
HONGGONG
Origin
China
HS Code
847480200
Production Capacity
50 Set Per Month
Product Description
| Introduction |

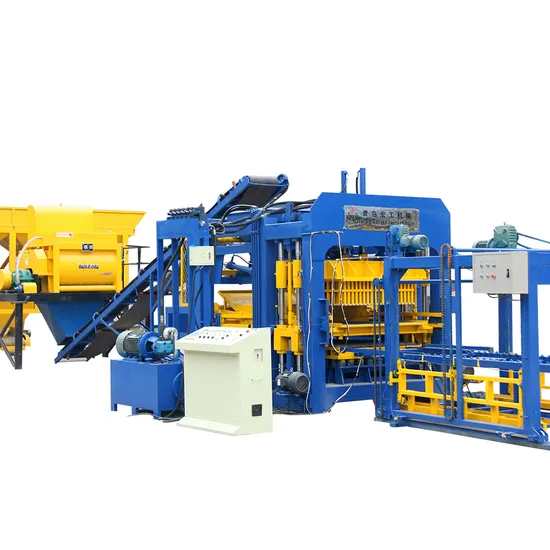

| QT15-15 automatic Block Making Machine 1. Particular storage and description material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density. 2. Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way. 3. The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis 4. PLC intelligent control: Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple training to the operator. 5. It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc. |
| Main technical parameter | |
| Qty/mould | 15pcs/mould (hollow block 400*200*200mm) |
| Molding cycle | 15s |
| Rated pressure | 31MPa |
| Main vibration | Platform vibration |
| Vibration frequency | 2800-4500 r/m |
| Power | 78.5kw |
| Pallet size | 1300x1100mm |
| Dimension | 11500x2350x2950mm |
| Host machine weight | 17500kg |
| Factory Area | 3000m² |
