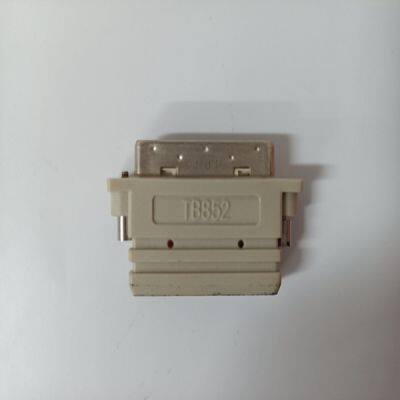

TB852 3BSC950263R1

Product Details

Product Description

Product Description
Brand:ABB
Type:TB852 3BSC950263R1
Origin: the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Our main products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
EIA-232-D Connections The EIA-232-D standard defines the electrical and mechanical aspects of this serial interface. The interface employs unbalanced (single-ended) signaling and is generally used with DB25 connectors, although other connector styles (e.g., DB9 and RJ45) are sometimes used as well. Table A-1 lists the standard EIA-232-D interconnections. Not all pins listed in the table are necessary in every application. To interpret the information correctly, remember that the EIA-232-D serial interface was developed to connect a terminal to a modem. Serial data leaves the sending device on a Transmit Data (TxD) line and arrives at the receiving device on a Receive Data (RxD) line. When computing equipment is interconnected without modems, one of the units must be configured as a terminal (data terminal equipment: DTE) and the other as a modem (data circuit-terminating equipment: DCE). Since computers are normally configured to work with terminals, they are said to be configured as a modem in most cases.
1. A high EIA-232-D signal level is +3 to +15 volts. A low level is -3 to -15 volts. Connecting units in parallel may produce outof-range voltages and is contrary to specifications. 2. The EIA-232-D interface is intended to connect a terminal to a modem. When computers are connected without modems, one computer must be configured as a modem and the other as a terminal. Interface Characteristics The EIA-232-D interface standard specifies all parameters for serial binary data interchange between DTE and DCE devices using unbalanced lines. EIA232-D transmitter and receiver parameters applicable to the MVME162 are listed in Tables A-2 and A-3. Table A-2. EIA-232-D Interface Transmitter Characteristics Parameter Value Minimum Maximum Unit Output voltage (with load resistance of 3000Ω to 7000Ω) ±8.5 V Open circuit output voltage ±12 V Short circuit output current (to ground or any other interconnection cable conductor) ±100 mA Power off output resistance 300 Ω Output transition time (for a transition region of -3V to +3V and with total load capacitance, including connection cable, of less than 2500pF) 2 µs Open circuit slew rate
