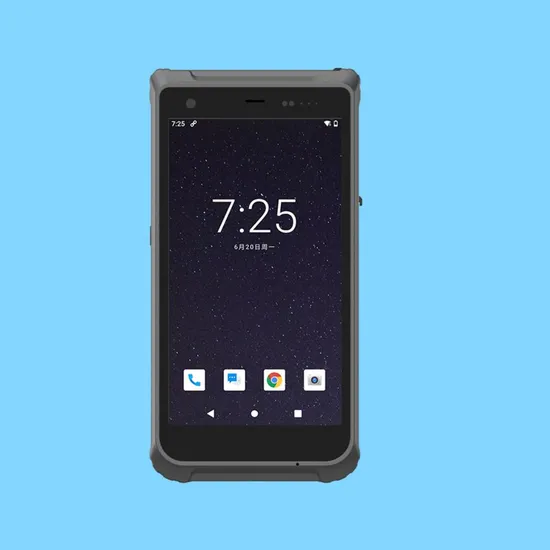

WiFi6 Speed Test and Maintenance Tool for Operators

Product Description

Data		Specification
Parameter	Materials	PC+ABS
	Color	Black
	Dimension	165mm*84mm*30mm
	Weight(Including battery)	About 0.37kg
Communication mode	Network type	4G/5G
SIM card	Built-in card slot	Dual Nano-SIM card slot and TF card holder (Two-out-of-three card slot)
4G/5G Module	Working bands	SA:n1/n8/n28 NSA:n41/n78/n79 TD-LTE:B34/B39/B40/B41 LTE-FDD:B1/B3/B5/B8
System Parameter	CPU	QCM4490 Octa-core, main frequency 2.4GHz
	Memory	6+128GB/(4+64GB optional)
	Software	Android 13.0
Screen	Size	5.5-inch
	Type	IPS LCD
	Resolution	1080*1920
	Touch screen	5-point touch, G+F+F, capacitive screen
Button	Materials	PC+ABS
	Number of digits	Left power button
	Life	>2 million times
Camera	Front camera	8MP, fixed focus
	Rear camera	16MP, auto focus
Interface port	Red light source interface	Default output power of 10mW
	Optical power interface	Support multiple wavelength calibration points at 850/1270/1300/1310/1490/1550/1577/1625nm
	LAN1 LAN2(2.5G)	Used for Ethernet speed test at 2.5Gbps
	HDMI port	It can be used to simulate TV functions, supports 4K and is backward compatible with manual selection of different image quality levels such as 4K/1080P/720P
	Smart Card Reader /Writer (Optional)	Supports simultaneous writing and reading of cards Card Slot Type: Supports contact-based cards compliant with ISO 7816 Supports SIM cards: 2FF single card or multi-in-one cards (2FF+3FF combo / 2FF+3FF+4FF combo)
	NFC reader	Support ISO/IEC 14443 Type A/B
	Earphone	3.5mminterface port(USA type)
	Type-C	Support USB3.0, supports charging and data transmission
	OTG	Support
	Wi-Fi 6	Support IEEE 802.11.ax Speedtest
	TF card	Up to 512GB
Power Supply	Input	AC 100-240
	Output	DC 5V/2A
	Line length	1.5m
Battery	Capacity	5000mAh/3.8V/19.0wh
Power waste	<10W
Standby time	>80hrs
Accessory	Power Supply	1pc
	User manual	1pc
Others	Protection level	IP65
	Working humidity	20 % ~95 %(No condensation)
	Atmospheric pressure	86-106Kpa
	Operating temp.	-20ºC~+55ºC
	Storage temp.	-30ºC~+60ºC

Company ProfileSince its inception in 1996, Shandong Kaer Electric Co., Ltd. has distinguished itself as a trailblazer in the provision of innovative intelligent terminals and comprehensive solutions tailored for both the Internet of Things and mobile Internet landscapes. Over the past two decades, the company has cultivated a robust foundation in research and development, mastering areas such as wireless communication terminal technology, wireless data terminal technology, identification technology, smart education application technology, Internet of Things technology, and cutting-edge video technology. These advancements reflect the company's commitment to pioneering excellence and innovation.
Shandong Kaer Electric Co., Ltd. prides itself on its full spectrum of product production qualifications, encompassing essential certifications like the telecommunications equipment network access license, the radio transmission equipment model approval certificate, and the China National Compulsory Product Certification Certificate. The company's diverse portfolio features two major product categories, divided into three series: smart communication terminals, IoT smart terminals, and bespoke solutions, including cutting-edge smart education terminals and solutions. This comprehensive product range showcases the company's dedication to delivering state-of-the-art technology and transformative solutions. FAQ1. Are you a MANUFACTURER?
Yes, we are founded in 2002, located in Weihai, Shandong , please watch our company introduction video at home page.
2. Do you support SMALL ORDERS?Yes, no matter how small the order is, we can accept it. After all, big orders start from small ones. We are very glad to grow with you.
3. Do you have CERTIFICATES?
Yes, we have CE, FCC, RoHs, EPR and WEEE certificates. lf you need other certificates, we can also assist you to complete them together.
4. What is your DELIVERY TIME?
In general, it need 30 business days, of course, the quantity and requirements of the order will also affect the delivery time, but we will treat each order with heart and do our best to deliver the goods for you as soon as possible.
5. what is your PAYMENT TERMS?
We support L/C, T/T, Western Union and Paypal.
6. Do you support CUSTOMIZATION?
Yes, we can customize packaging, logo, hardware and software. Please email us for more details. Please contact us for more information.
